Uni Lift 5000 NT Plus

Hydraulic scissor lift with wheel-free lift

Uni Lift 5000 NT Plus

Item No:UNI050.12500301D-1-7016-00
Uni Lift 5000 NT Plus
Scissor lift Uni Lift 5000 NT PLUS RAL7016 grey side

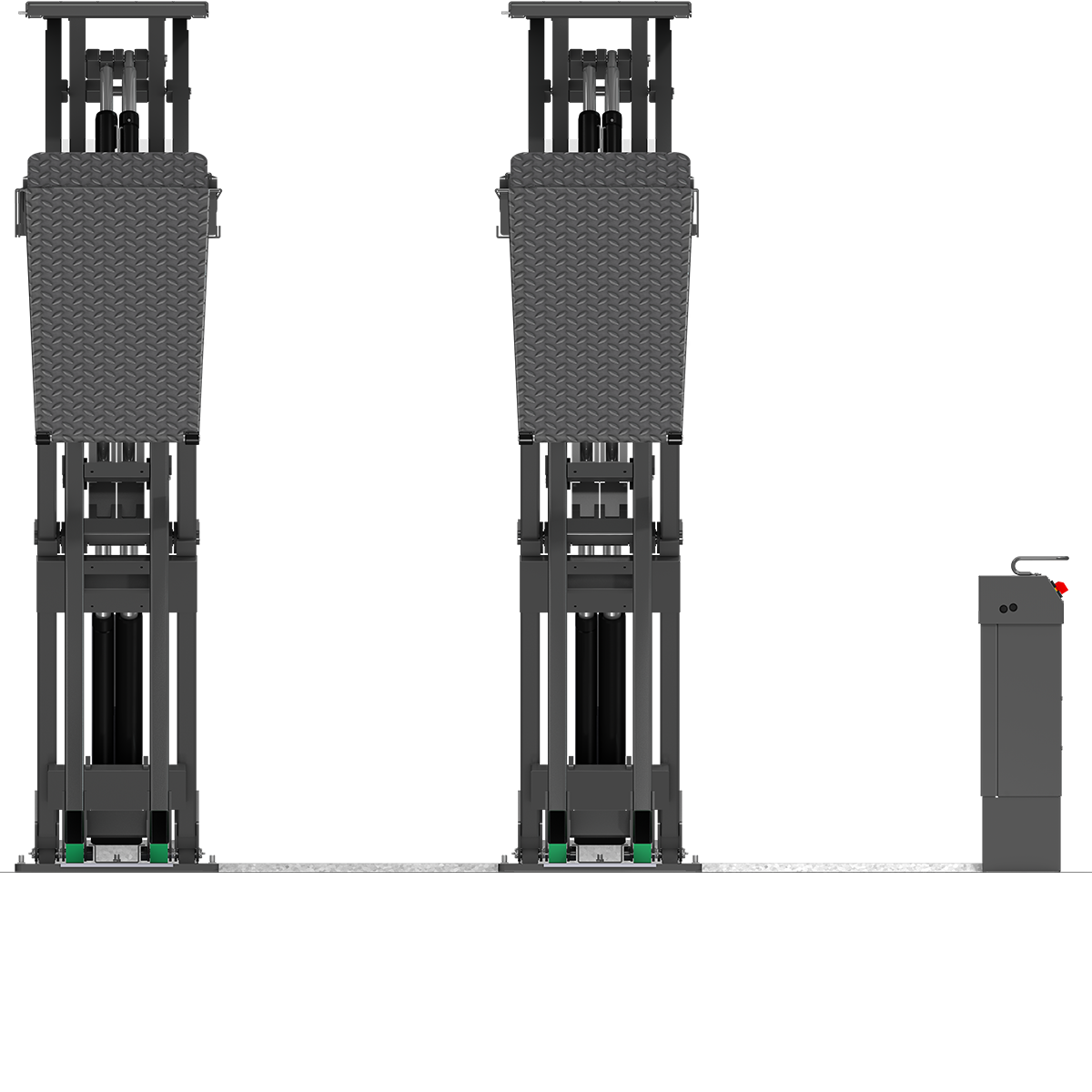

Scissor lift Uni Lift 5000 NT PLUS RAL7016 grey front
Customize Compare
Brief description
Item No: UNI050.12500301D-1-7016-00
Lifting capacity: 5000 kg
Type Scissor lift
Color Grey
Händler in Ihrer Nähe 20 Nicht Ihre Postleitzahl? hier eingeben

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

Uni Lift 5000 NT Plus

The hydraulic scissor lift UNI LIFT 5000 NT Plus with a lifting capacity of 5000 kg is the perfect lift for pick-up inspection, diagnosis, tyre service and repairs in the car workshop. With the fast lifting and lowering times, their small space requirement thanks to the low rails and the short ramps, their comfortable Lifting height of 1920 mm, the flexible installation width and the integrated hydraulic wheel free jack (RFH) is The UNI LIFT 5000 NT Plus The perfect equipment for the car repair shop that needs a lifting platform that can meet all the requirements of a modern service company.

The wheel-free lift allows free access to the wheels of the vehicle in no time at all. By simply changing a switch on the control column, the operator can switch between the lift of the wheel-free jack and the lift as a whole.

The UNI LIFT 5000 NT Plus can easily be retrofitted with the axle lift JAX 2000, JAX 2600 or JAX 3200 and thus adapts to the development of your workshop for a long time to come.

  • Lifting time: 35 Seconds / lowering time29 Seconds
  • Capacity: 5000 kg
  • Lifting height of 1920 mm
  • Fast lifting wheel free lift (RFH) for all work on tyres and wheels
  • Space-saving: Low rails and short drive-on ramps
  • Flexible installation width, Distance between control unit and lift can be varied as required
  • Retrofittable with axle lifts
  • Two redundant hydraulic circuits with NT technology
  • 360° access
  • Can also be installed flush with the floor: Uni Lift NT
  • Developed and manufactured in Germany

All Nussbaum hydraulic scissor lifts are equipped with two redundant hydraulic circuits as standard: Nussbaum-s patented hydraulic technology NT. The control unit of the UNI LIFT 5000 NT Plus is equipped with a main switch and protected pushbuttons and can be positioned at various distances from the lift. The UNI LIFT 5000 NT Plus has no fixed connections between the platforms and can therefore be installed in different installation widths as required. Would you like to install your scissor lift flush with the floor? Click here to go to the inground version: Uni Lift NT

The low power consumption and low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The scissors and platforms are welded in Nussbaum's own state-of-the-art welding machines, shot-peened and then powder-coated Your lift is thus protected against dirt and weather in the long term.

Details
Capacity 5000 kg
Load capacity wheel-free lift 3500 kg
Wheel free lift 1
RAL color RAL 7016 - Grey
Coating Powder coating
Installation type above ground
Platform length min 5000 mm
Platform length wheel-free lift max 1945 - 1465 mm
Lifting time 35 sec
Lowering time 29 sec
Lifting height max. 1920 mm
Wheel-free lift stroke 580 mm
Platform height 195 mm
Platform width 635 mm
Drive on height 195 mm
Total width min 2020 - 2320 mm
Recommended installation width 2220 mm
Installation width min. 2020 - 2320 mm
Platform distence min 750 - 1050 mm
Total platform width 2220 mm
Motor power per column 3 KW
Pick up device
Synchronization system
CE-Stop
Lighting (type)
Lighting (number)
Oil quantity (approx.) 15 liter
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Noise level (<=) 75 db
Foundation length 5150 mm
Foundation width 2300 mm
Concrete thickness 180 mm
Concrete quality C20/25
Customs tariff number 84254100

Datasheets

Data sheet 71 KB

Foundation plans

Strip foundation plan with empty pipe 65 KB
Square foundation plan 67 KB
Strip foundation plan 67 KB
Square foundation plan with empty pipe 50 KB
U foundation plan 46 KB
U foundation plan 58 KB

Dowel drilling patterns

Dowel hole pattern 64 KB

Inspection books

Pruefbuch UNI 5000 NT 5000 NT PLUS DE EN FR v3 28 MB
Ersatzteilliste UNI LIFT 5000 NT 04/08 837 KB

Leaflets

Uni Lift NT Broschüre - Deutsch 2 MB
Uni Lift NT Brochure - English 2 MB
Uni Lift NT Panfleto - Español 2 MB
Uni Lift NT Brochure - Francais 2 MB
Uni Lift NT Prospetto - Italiano 2 MB
1
Packaging
Product Dimensions 5250mm x 770mm x 500mm
Total weight 1390kg
Stackable 2 times
2
Packaging
Product Dimensions 5250mm x 770mm x 500mm
Total weight 1390kg
Stackable 2 times
3
Packaging
Product Dimensions 1350mm x 500mm x 500mm
Total weight 100kg
Stackable nicht Stapelbar
