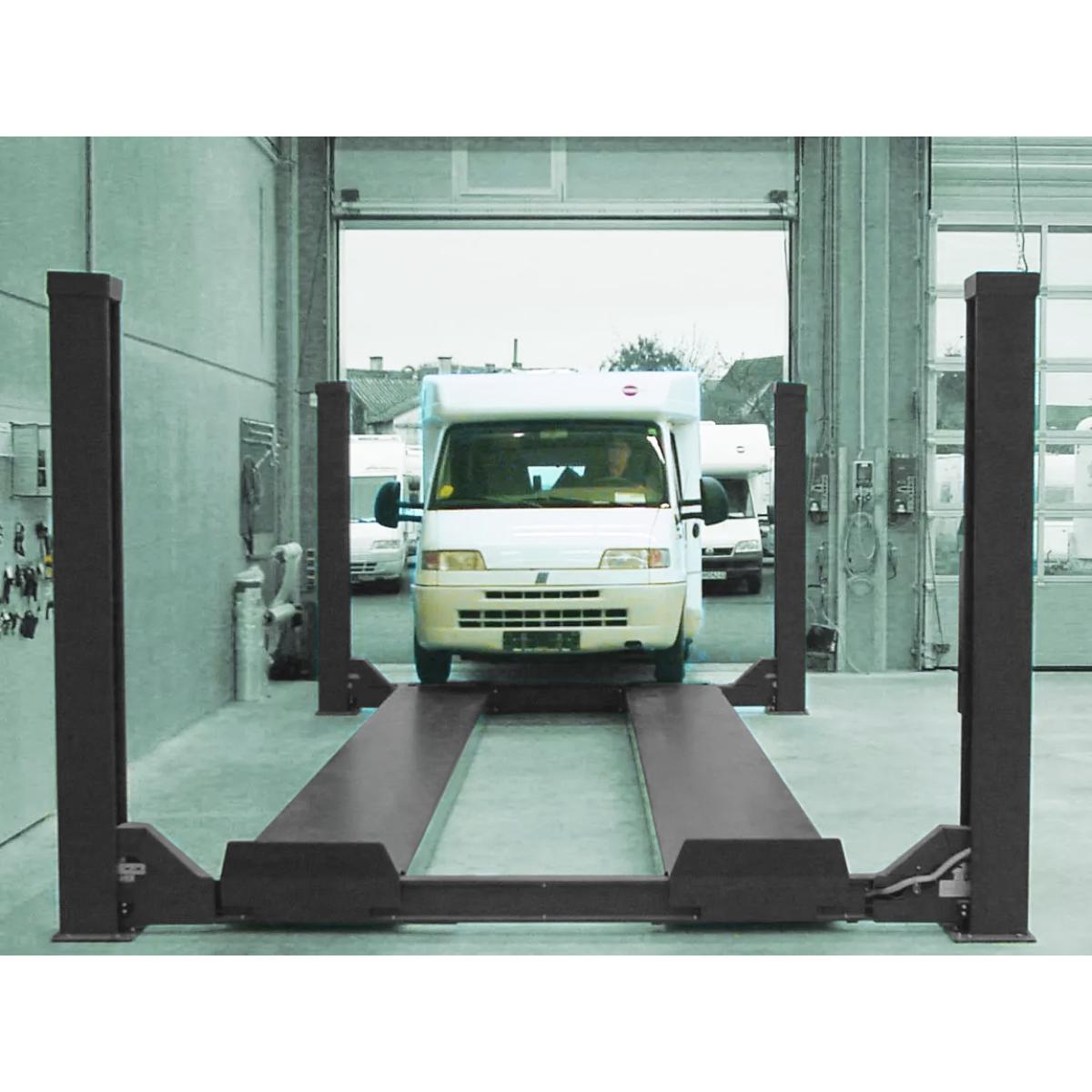

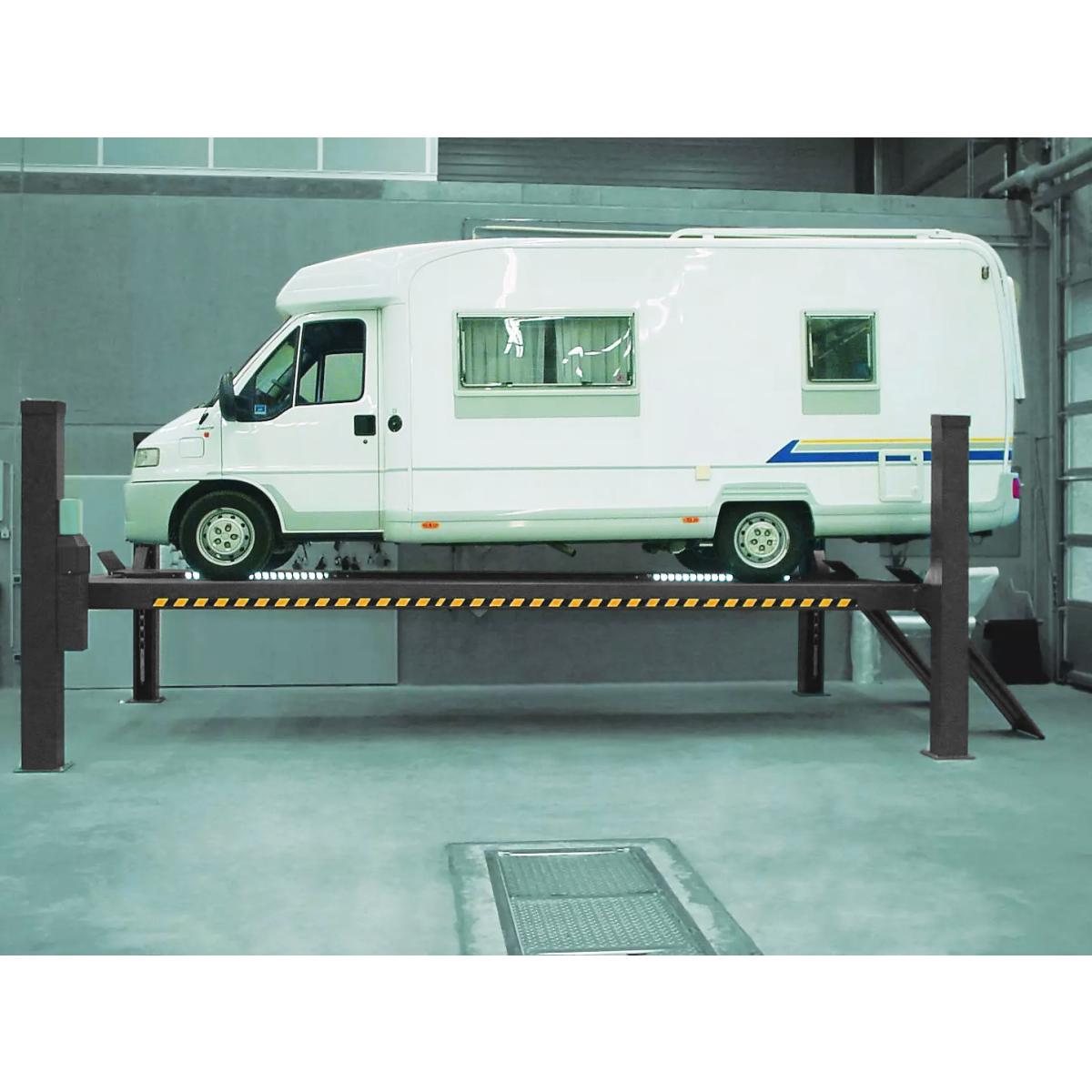

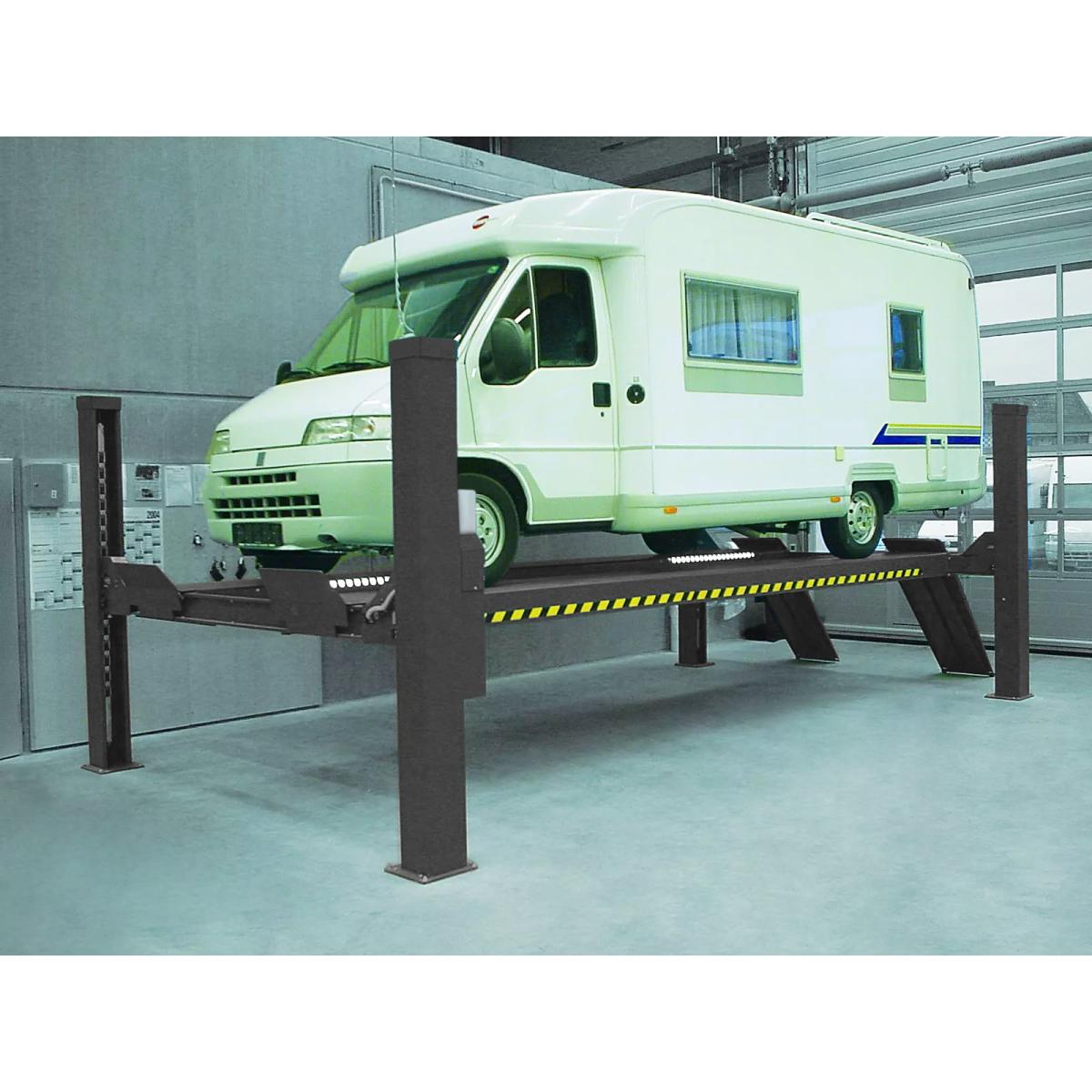

COMBI LIFT 4.80 H

The hydraulic 4-post lift COMBI LIFT 4.80 H with a load capacity of 8000 kg is the perfect lift for The dialogue-acceptance, diagnosis, work on bodywork and sills in the quality and price-conscious car repair shop, That serves all weight classes from passenger cars to vans, small trucks, up to motor homes. Even as a headlight adjusting place in conjunction with a headlight tester, it always delivers reliable results in headlight adjustment. For lower lying vehicles we offer extended ramps as an option mit einer Länge von 1450 mm. The COMBI LIFT 4.80 H is versatile for repairs, wheel alignment and tire service. With the tried and tested Nussbaum hydraulics, the perfectly flat runways, the automatic safety lock every 100 mm by the automatic safety catch, the flexible rail distances, with the retrofittable lighting and optional accessories, the COMBI LIFT 4.80 H is the perfect companion for any automotive workshop that needs a reliable, low-cost lift that can meet all future requirements.

• Load capacity: 8000 kg
• Lifting height of 2015 mm
• Perfectly flat runways
• Flexible distance between the runways, adjustable in 50 mm steps

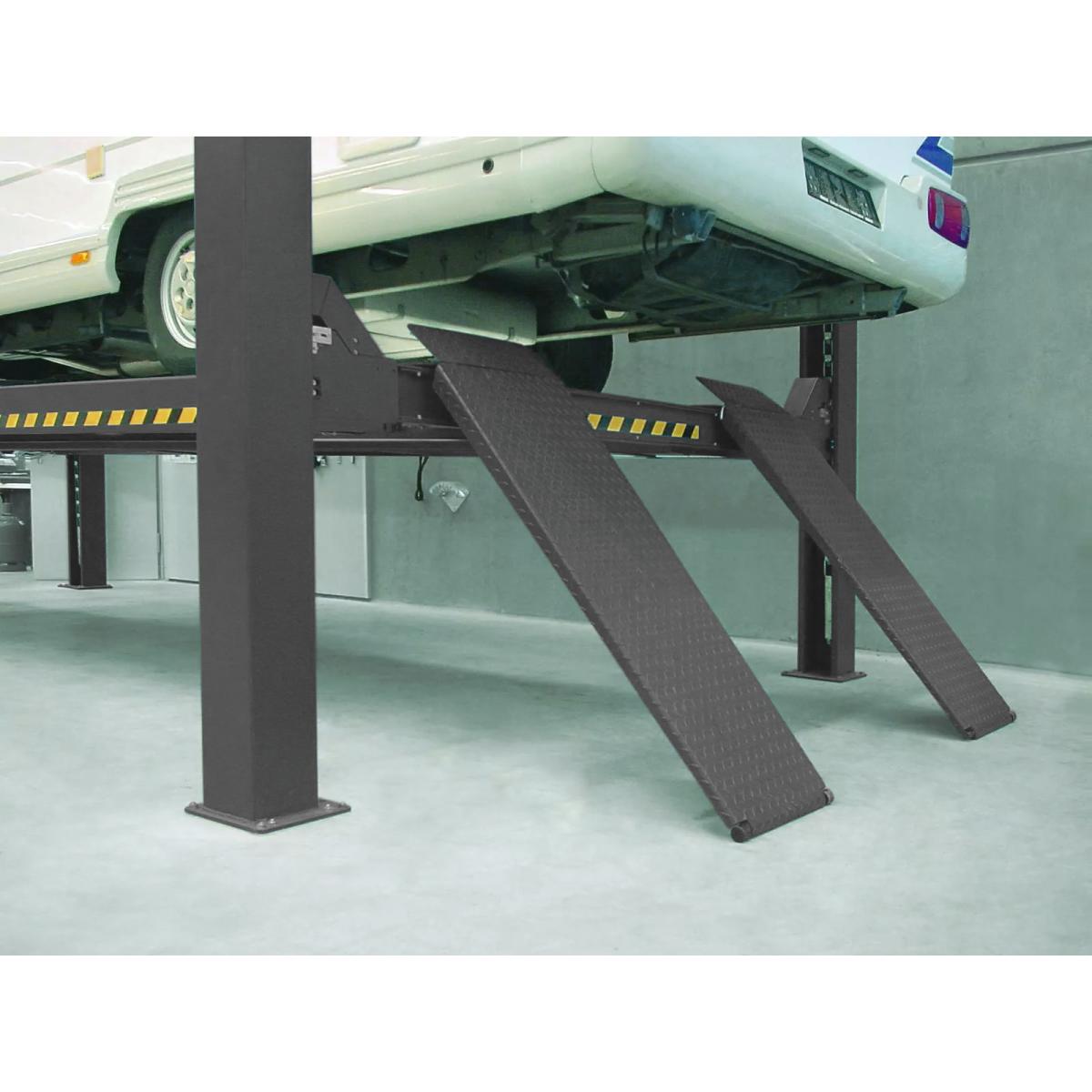

• Short drive-on ramps with a length of only 1450 mm
• Can be retrofitted with axle jacks and lighting
• In-ground mounting for perfectly flat runways on request
• Guaranteed quality: each hydraulic cylinder is individually tested before shipment
• Developed and manufactured in Germany

All Nussbaum 4-post hydraulic lifts are equipped as standard with a pulling hydraulic cylinder integrated in the runway: The pulling cylinder, driven by a powerful and low-noise submerged oil unit, protects the hydraulic system and guarantees the longevity of your lift. The lowering process requires no energy and thus reduces energy consumption and the running costs of the workshop.

The runways and columns are welded in Nussbaum's own state-of-the-art welding facilities, shot peened and then grau powder-coated. Your lift is thus protected against dirt and weather in the long term.

Scope of delivery

Lift with adjustable ratchet rails for wheel alignment, 2 drive-on ramps, optional inground with folding ramps with roll-back protection, Plus version: with extendable wheel free lift

Installation requirements

Foundation (min. 160mm / quality min. C20/25), 16 dowels BM10-15/70/40 (depending on foundation, see manual), Hydraulic Oil 10 liter HLP ISO 32, eletric connection 3 PH, N + PE, 400 V, 50 Hz, 16 Amp. slow fuse, Unloading
