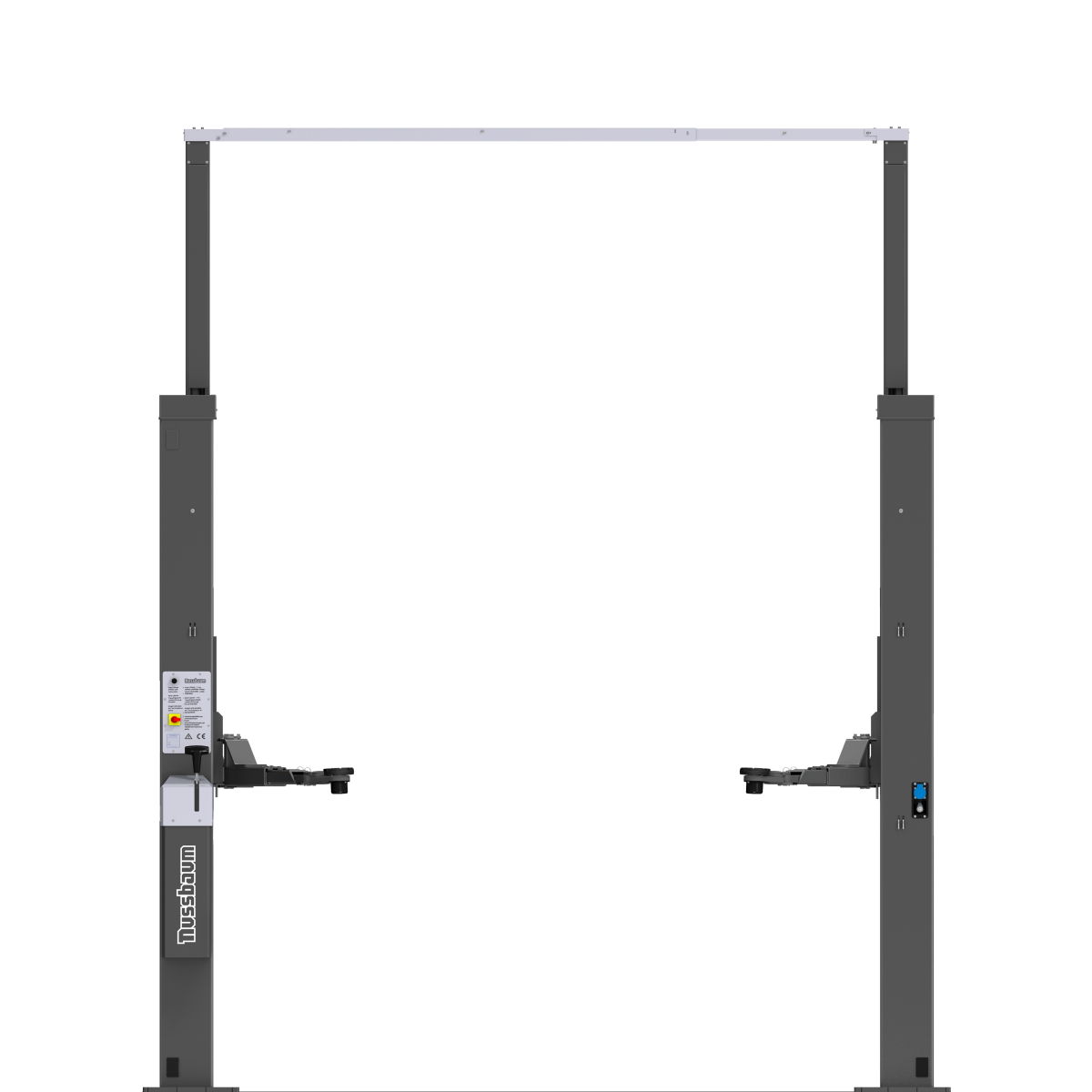

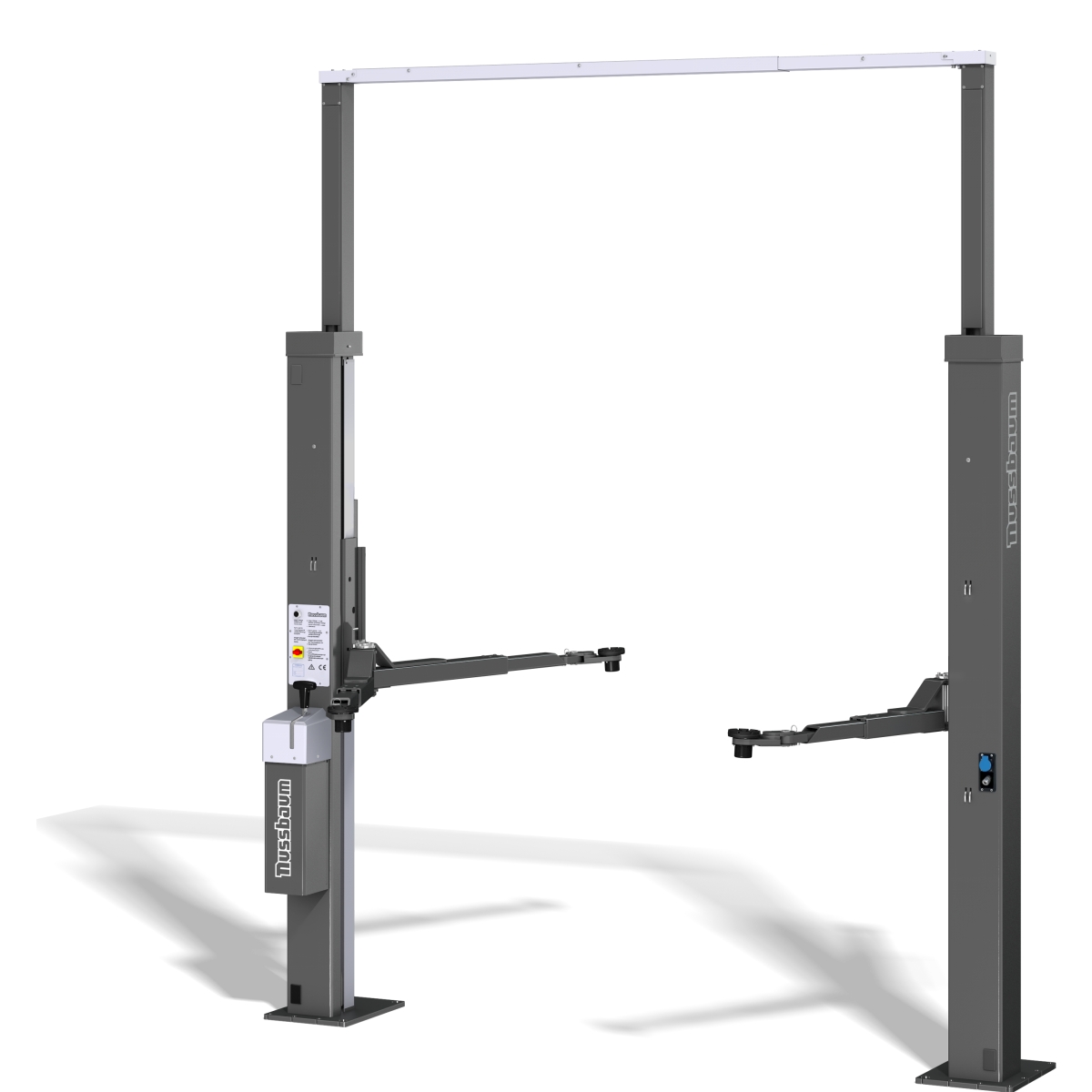

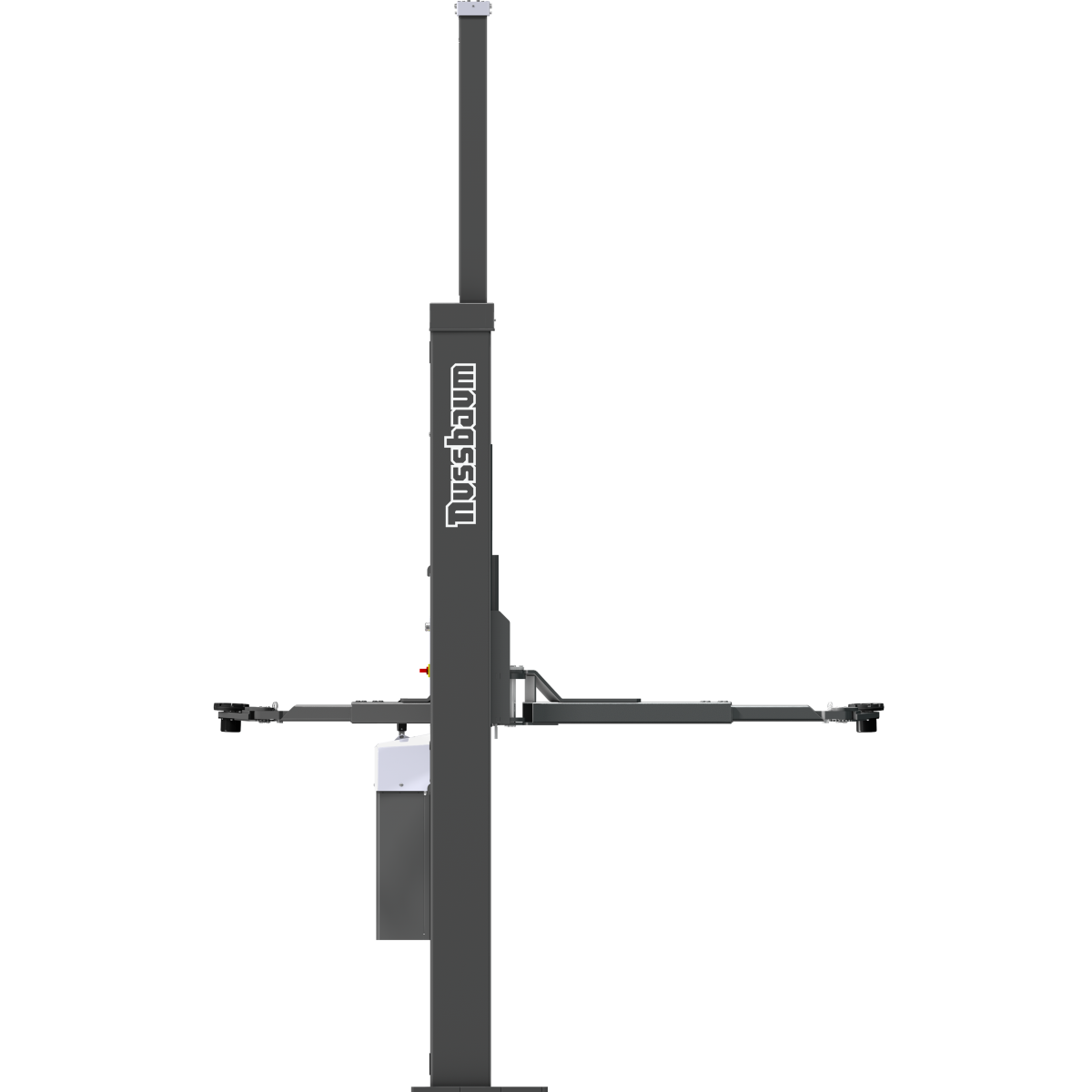

POWER LIFT HF 3S 3500 EV

The hydraulic 2-post lift POWER LIFT HF 3S 3500 EVwith a load capacity 3500 and asymmetrical double telescopic lifting arms is the world's only lift with triple safety system. The POWER LIFT HF 3S 3500 EV is the ideal lift for daily continuous use in a consistently busy garage where only the best is good enough. With it's fast lifting- and lowering time, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance.
More flexibility for electric vehicles. The front part of the support arms can be swivelled through 180° for optimum flexibility and underbody clearance for electric vehicles.

The POWER LIFT HF 3S 3500 EV is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies and is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg.

• Lifting time: 26 seconds
• Lowering time: 14 seconds
• Load capacity: 3500 kg
• Triple safety: Two redundant hydraulic circuits plus an automatic safety latch (no clacking during lifting and lowering)
• Adjustable in width and height (with optional column extension)
• Compressed air connection and 220 V socket integrated in column
• High quality: Every power unit and every hydraulic cylinder is tested before shipment
• Developed and manufactured in Germany

The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety.

The POWER LIFT HF 3S 3500 EV is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations.Their base frame-free design, adjustable in width and height, enables a wide range of installation combinations and variants: Mit a minimum height of 4182 mm and thanks to the optional riser pipe extensions the POWER LIFT HF 3S 3500 EV scan be used both in workshops with low ceiling heights and to lift the underbody of high vehicles such as vans and vans to the ideal working height for you

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. The low power consumption, the consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs, also thanks to the reduced number of moving parts, reduce running costs. The pump unit integrated in a sound-absorbing metal housing is mounted on the control column and easily accessible for maintenance work. A compressed air connection and a 220 V socket are integrated in the slave column. The arms and columns are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently grau powder-coated. Your lift is thus protected against dirt and weather in the long term.

The design and the processing of the POWER LIFT HF 3S 3500 EV give it an elegant overall appearance, which also allows your workshop to appear in the best light in direct customer contact.

How does the Nussbaum safety catch differ from conventional safety systems?

During the lifting process, the Nussbaum safety latch automatically secures the vehicle at intervals of 100 mm up to the maximum lifting height of 2010 mm. The safety switch attached to the control column allows the lift to be additionally placed manually in the latch. In contrast to conventional 2-post lifts, the safety latch does not make any clicking noise during lifting and lowering, which is typical for this type of lifts. The vehicle can be lowered immediately after release of the latch, without first having to be lifted upwards out of the latch.

Scope of delivery

Hebebühne mit asymmetrischen, teleskopierbaren Tragarmen, vier im Tragarm fixierte Drehteller, Energie-Set: E-Set (230 V/ Druckluft) in der Bediensäule integriert

Installation requirements

Fundamentstärke 200mm C20/25 normale Bewehrung, 16 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set, Hydrauliköl HLP32 ca. 10l, Entladung
