POWER LIFT HL 5000 NT UNI

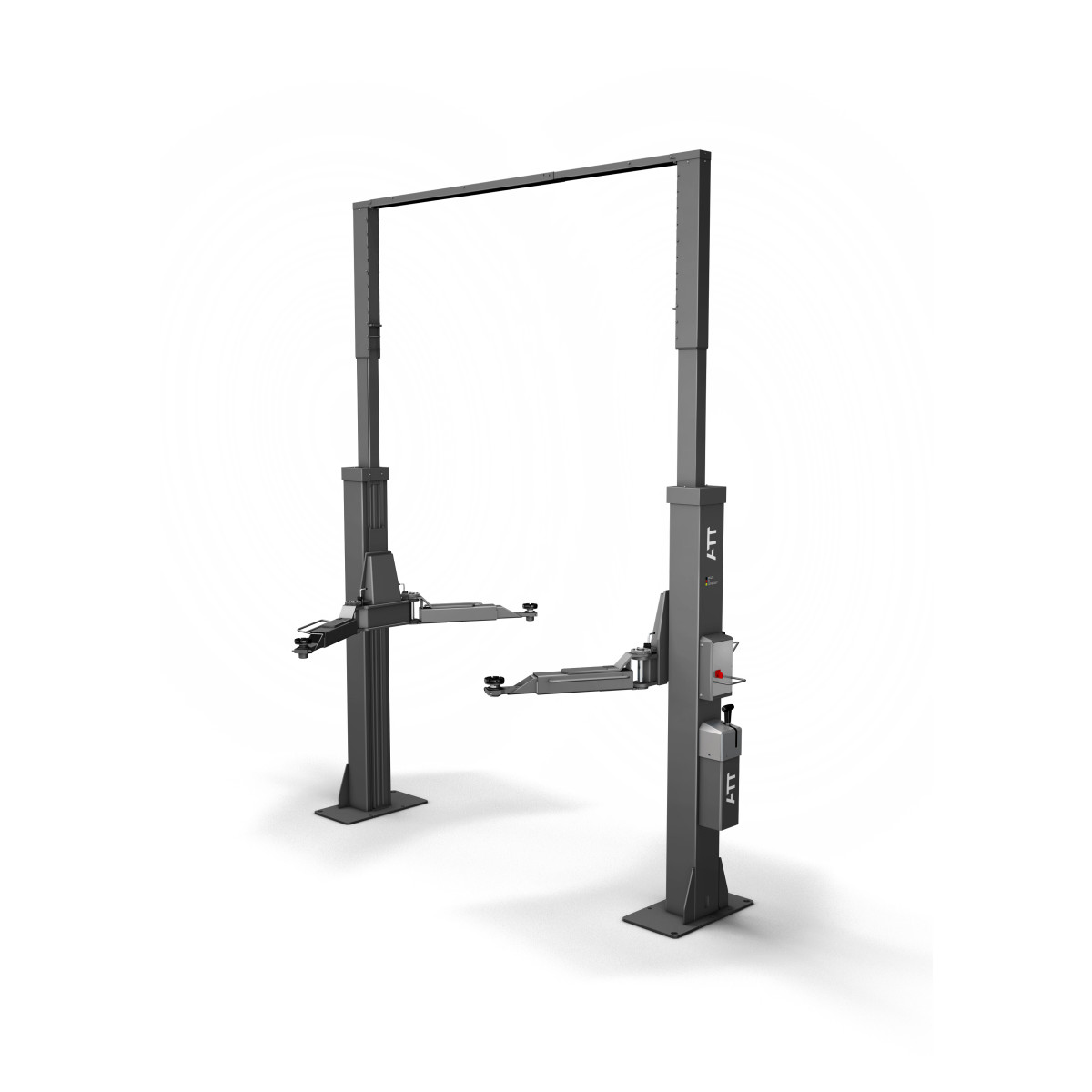

The hydraulic 2-post lift Power Lift HL 5000 NT Universal with a load capacity of 5000 kg and symmetrical universal arms, the ideal lift for the demanding automotive workshop that serves all vehicle types, from short compact cars to heavy SUVs to vans and vans with long wheelbases. With the very fast lifting and lowering times for it's weight class as well as a minimal maintenance effort (no synchronization ropes, no pulleys, no ratchet) it is the ideal lift for daily continuous use in a car repair shop where flexibility and reactivity are in demand. With the universal arms consisting of four double telescopic arms you can lift a wide range of vehicle sizes and weight classes from Smart to Mercedes Sprinter and VW Crafter with long wheelbase.

The Power Lift HL 5000 NT Universal is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies and has been developed and manufactured by Nussbaum since its ; market launch in 2014 in Kehl-Bodersweier in Baden-Württemberg .

• Lifting time: 31 seconds / Lowering time [AttributeShortCode,attribute=Lowering time,attributeid=62] seconds
• Load capacity: 5000 kg
• Universal arms reach the mounting points of a wide range of vehicle sizes
• Adjustable in width and height (with optional riser pipe extension)
• Compressed air connection and 220 V socket integrated in column
• High quality: Every power unit and every hydraulic cylinder is tested before shipment
• Developed and manufactured in Germany
• Recommended by Mercedes-Benz (for similar lift HL 2.50 NT Universal MB)

The HL NT series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifts Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort anbieten. The ergonomic stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in no time at all, all with maximum safety. The Power Lift HL 5000 NT Universal is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations.Their base frame-free design, adjustable in width and height, enables a wide range of installation combinations and variants:  Mit a minimum height of 4020  mm and a maximum height of 4880 mm thanks to the optional riser pipe extensions the Power Lift HL 5000 NT Universal can be used both in workshops with low ceiling heights and to lift the underbody of high vehicles such as vans and vans to the ideal working height for you.

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. The low power consumption, the consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs, also thanks to the reduced number of moving parts, reduce running costs. The suboil unit is mounted on the operating column and easily accessible for maintenance work. A compressed air connection and a 220 V socket are integrated in the control column. The arms and columns are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently gris powder-coated. Your lift is thus protected against dirt and weather in the long term.

The design and the processing of the Power Lift HL 5000 NT Universal give it an elegant overall appearance, which also allows your workshop to appear in the best light in direct customer contact.

Scope of delivery

Hebebühne mit Unterölaggregat an der Hubsäule, Steuerung mittels Commander Hebel, Hubsäulenverlängerung variabel einstellbar, Universal bzw. Doppelgelenktragarme, im Tragarm gesteckte Teleskopdrehteller, CE-STOP bei DG Ausführung

Installation requirements

Fundamentstärke von min. 250mm mit Qualität min. C20/25, 14 Dübel BM16-25/100/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Hydrauliköl HLP 32 ca. 10l[newline marker]Entladung
