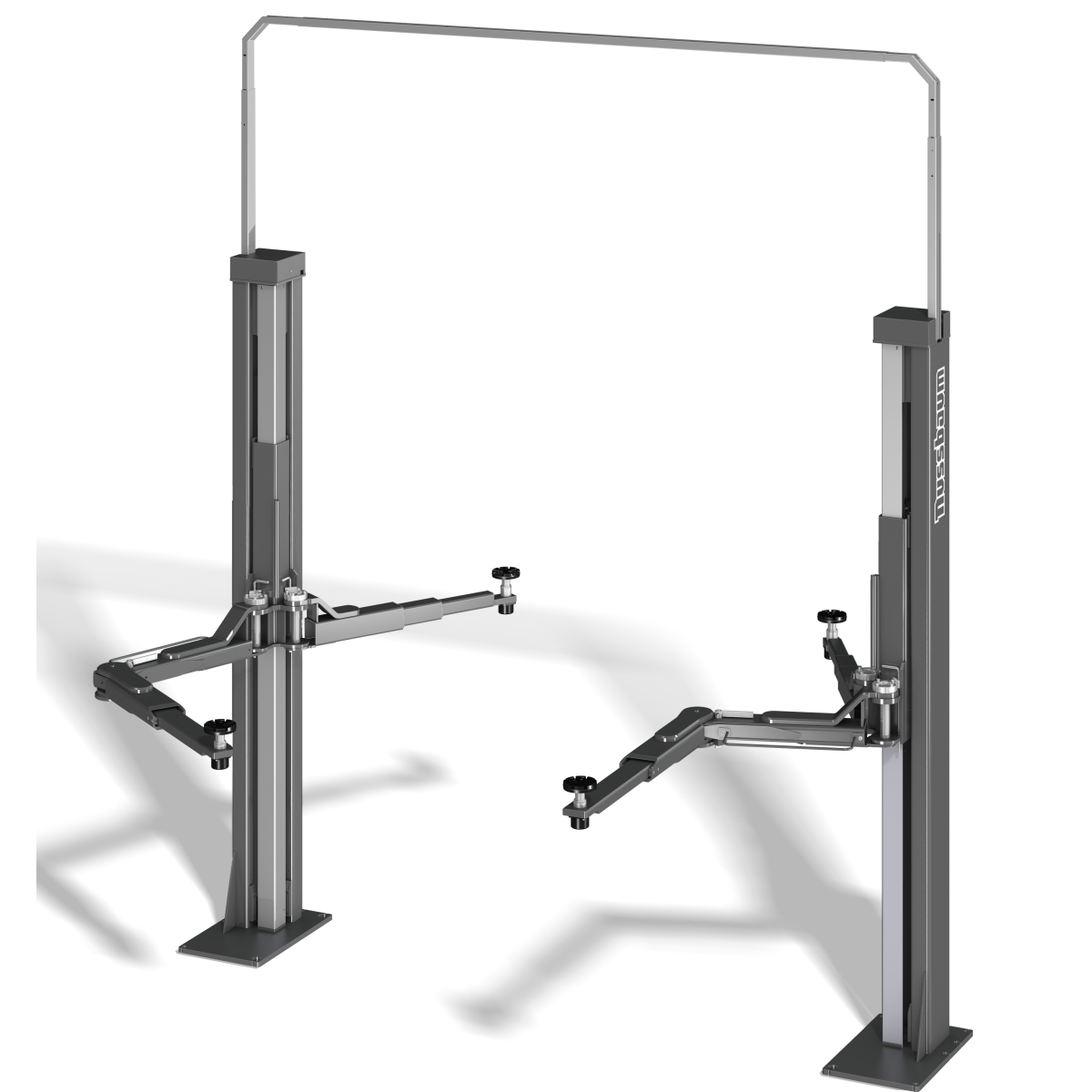

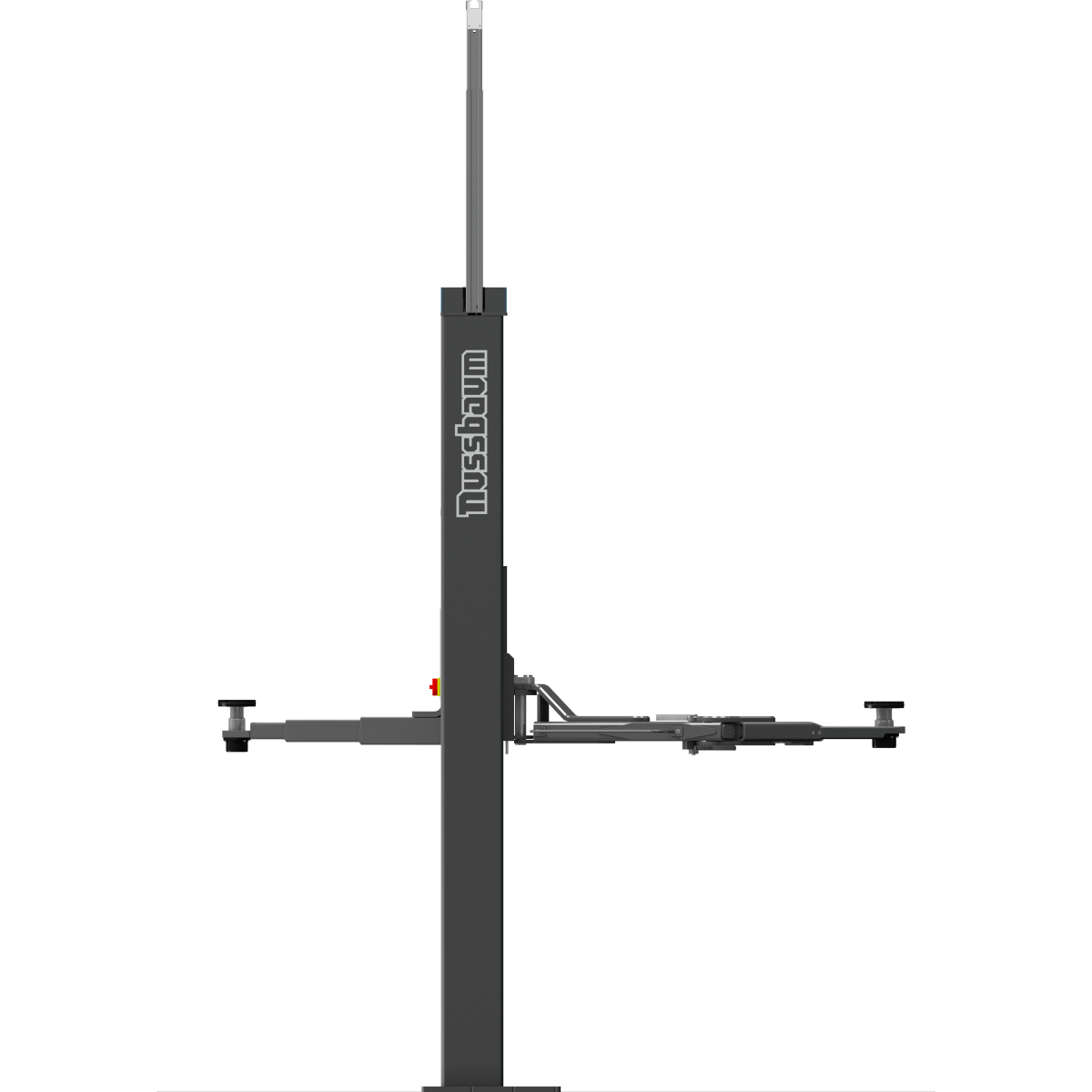

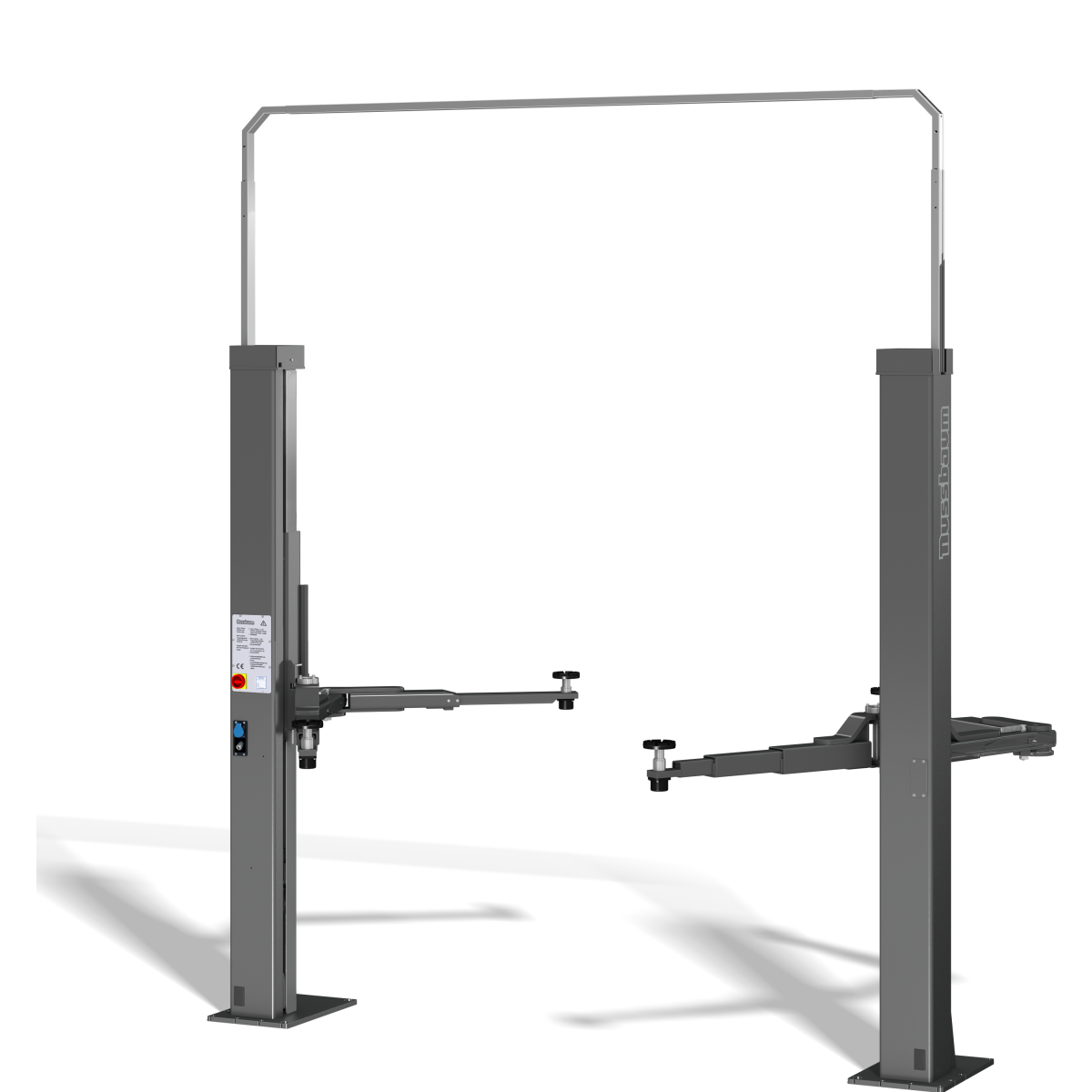

SMART LIFT 2.35 SL OTTO

The electromechanical 2 post lifts SMART LIFT 2.35 SL OTTO with spindle, a load capacity of 3500 kg and OTTO support arms is the only lift in the world with a triple safety system. The SMART LIFT 2.35 SL OTTO is the ideal lift for continuous daily use in a constantly busy car workshop for which only the best is good enough. With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns.
With the OTTO support arms consisting of a long single telescopic double-jointed support arm and a short double telescopic support arm, you can lift a wide range of vehicle sizes and weight classes.

• Lifting time: 46 seconds and lowering time: 40 seconds
• Load capacity: 3500 kg
• Adjustable in width and height, low minimum space requirement
• Ideal for low ceiling heights with minimum height of only 2892 mm
• Compressed air connection and 220 V socket as standard integrated into the column
• High quality: each unit is individually tested under load before shipment
• CE-Stop included

The Nussbaum SMART LIFT series has proven itself for over 20 years. Today, more than 100,000 SMART LIFT lifts are available worldwide to assist car mechanics in their everyday work.

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron ®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently grey powder-coated. Your lift is thus protected against dirt and weather in the long term.

Scope of delivery

Hebebühne mit Kabelbrücke (verstellbar), Asymmetrische, teleskopierbare Tragarme, 4 im Tragarm fixierte Drehteller, CE-Stop, Energie-Set (Option): E-Set (230 V/ Druckluft) in der Bediensäule

Installation requirements

Fundamentstärke 200 mm C20/25 normale Bewehrung, 12 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set (Option), Entladung
