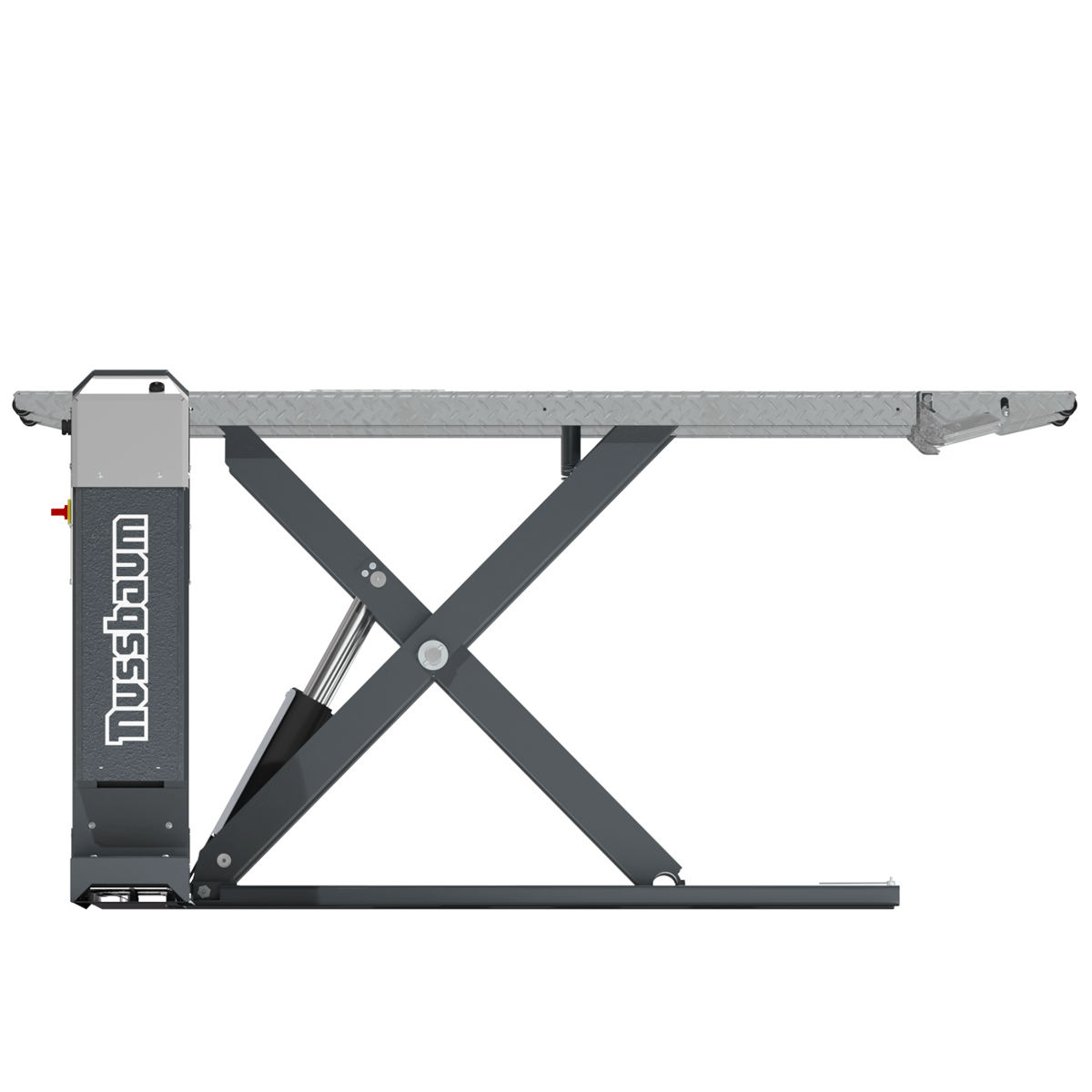

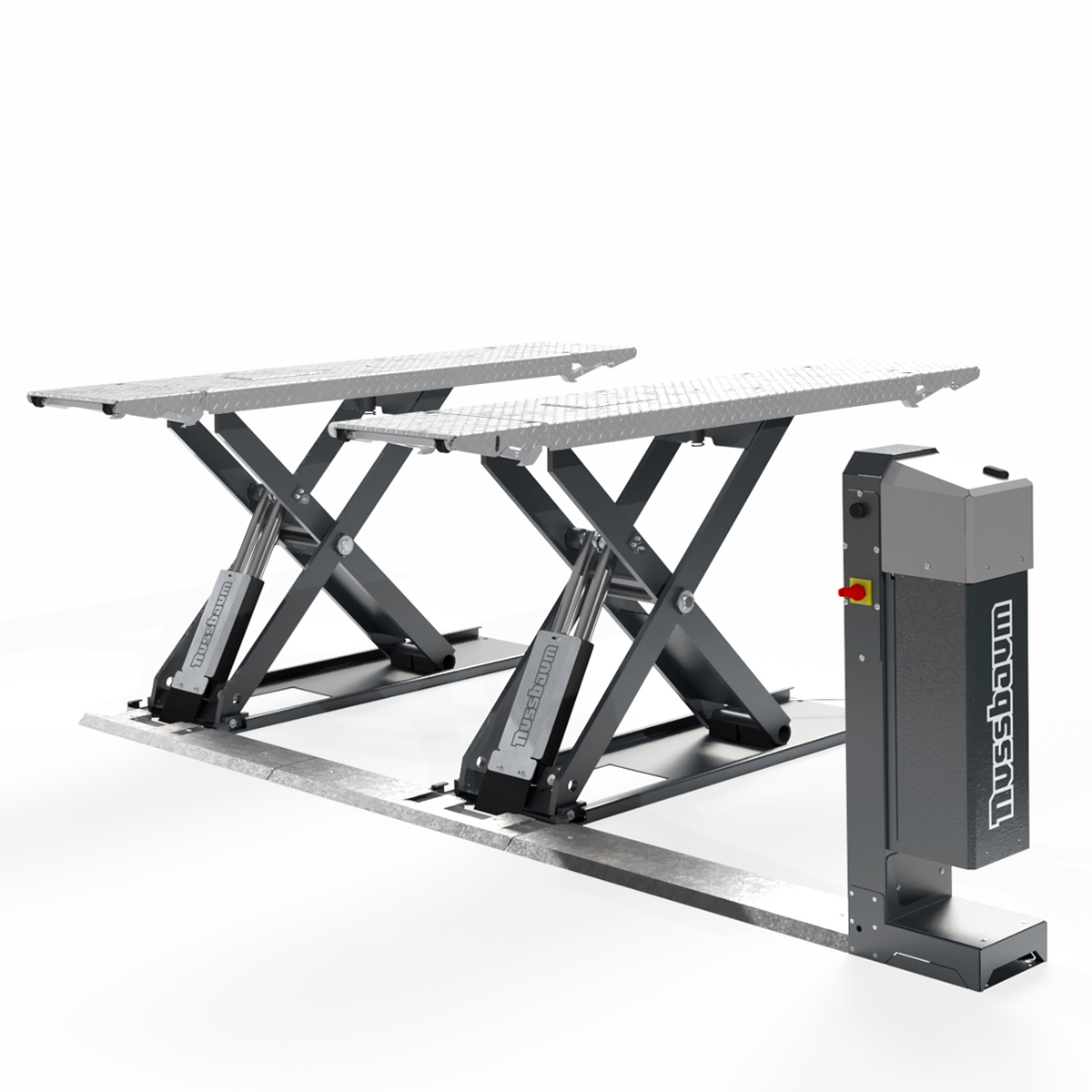

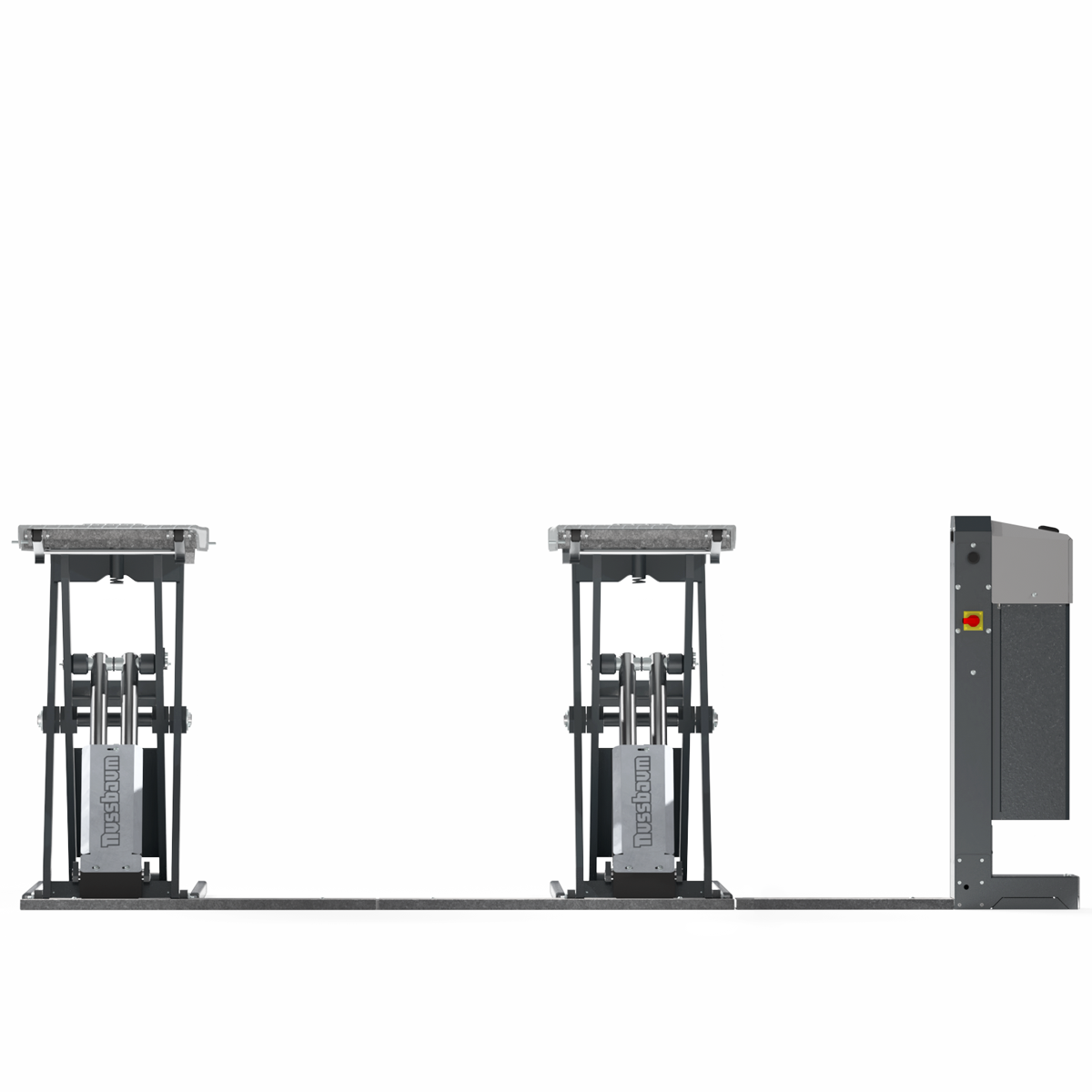

SPRINTER 3500 NT

The Hydraulic midrise lift SPRINTER 3500 NT with a load capacity of 3500 kg is the ideal mobile lift for the car repair shop, where additional workstations need to be created in no time at all. This lift is ideal for body work, tire service, painting and more.

The SPRINTER 3500 NT can be moved with the mobile set in seconds by a user without mechanical assistance and is immediately ready for operation without having to be connected or anchored. With its fast lifting times, small space requirement, 360° access to the vehicle, length-adjustable mountings and flat design, it will find its place in any car workshop.

The SPRINTER 3500 NT lifts a wide range of vehicles, from mini cars to low-slung sports cars, off-road vehicles and heavy SUVs thanks to its robust steel construction and high-quality hydraulic system.

The drive-on ramps can be unlocked and locked with a single movement of the hand to extend or shorten the mounting areas. The hot-dip galvanized anti-slip platforms are long term protected from dirt and moisture.

The SPRINTER 3500 NT is developed and manufactured by Nussbaum at its main plant in Kehl-Bodersweier in Baden-Württemberg.

• Lifting time: 15 seconds
• Load capacity: 3500 kg
• Effective Lifting height of 970 mm
• Fully free and mobile and ready to go in no time at all: no external connections required
• Extremely compact and flat design: Drive-on height of only 102 mm
• Length-adjustable mounting - drive-on ramps can be locked and unlocked by one-hand operation
• 360° access
• Hot-dip galvanized anti-slip platforms are protected against corrosion over a long period of time
• Included in delivery: Set of 4 polymer pads (50x150x340 mm)
• Guaranteed quality: The lift is completely pre-assembled at the factory and tested for full functionality
• Developed and manufactured in Germany

The hydraulic system consisting of 2 independent, powerful hydraulic cylinders does not require an external compressed air connection. The Nussbaum hydraulic system requires neither electronic synchronization monitoring nor electronic limit switches and thus guarantees the highest possible reliability. The powerful suboil unit is integrated into the power unit. The unit is well protected and easily accessible for maintenance at the same time.

The scissors and the substructure of the SPRINTER 3500 NT are made of high quality steel and are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and then grau powder-coated. Your lift is thus protected against dirt and weather in the long term.

Scope of delivery

Hebebühne mit verzinkter Direktaufnahme, Kompaktes Ölaggregat, Aufstellung Auffahrrichtung links, Länge der Hydraulikleitungen 3m, Satz = 4 Stück superduktile Polymerauflagen 50 x 150 x 340 mm

Installation requirements

8 dowels (depending on foundation, see manual) if lift shouldn't be mobil, Hydraulic Oil HLP ISO 32, Volume ca. 13 liter, eletric connection 3 PH, N + PE, 400 V, 50 Hz, 16 Amp. slow fuse, CE-Stecker, Unloading
