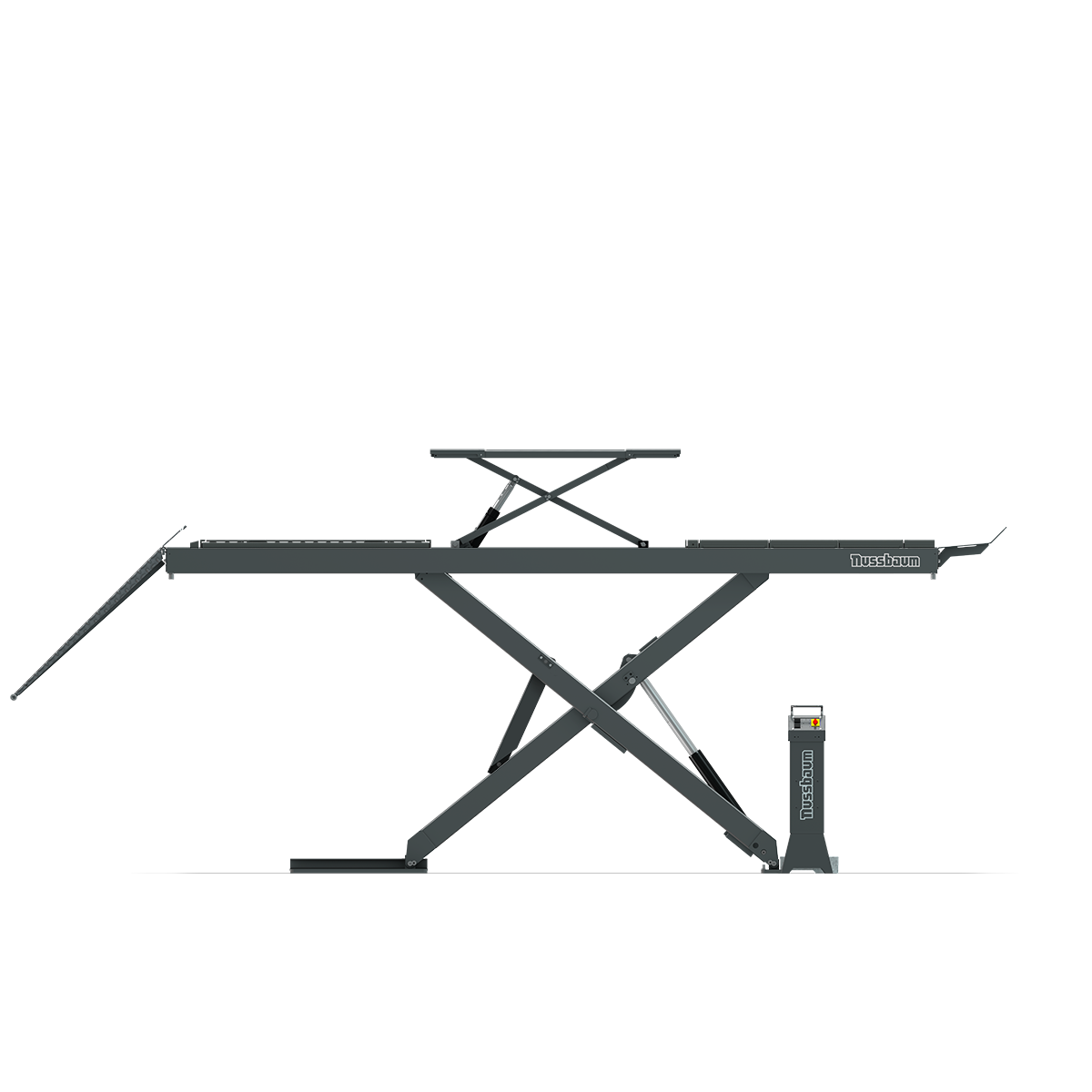

Uni Lift 3500 NT Plus AMS

Hydraulic scissor lift with wheel-free lift and wheel alignment set

Uni Lift 3500 NT Plus AMS

Item No:UNI035.12450352D-0-7016-00
Uni Lift 3500 NT Plus AMS
Customize Compare
Brief description
Item No: UNI035.12450352D-0-7016-00
Lifting capacity: 3500 kg
Type Scissor lift
Color Grey
Händler in Ihrer Nähe 43 Nicht Ihre Postleitzahl? hier eingeben

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

Uni Lift 3500 NT Plus AMS

The hydraulic scissor lift Uni Lift 3500 NT Plus AMS with a lifting capacity of 3500 kg is such a versatile lift that it takes a central place in thousands of automotive service operations worldwide. The wide range of work that can be done with the Uni Lift 3500 NT Plus AMS ranges from wheel alignment, test technology, tyre service, check in inspection to underbody repairs and maintenance. Equipped with wheel alignment set and wheel free lift (RFH) The Uni Lift 3500 NT Plus AMS can literally be used anytime and anywhere. In addition, it has fast lifting and lowering times, requires little space thanks to the low rails and short ramps, lifts to a comfortable maximum height of 1970 mm and is flexible in its installation width. The wheel alignment set integrated into the rails of the lifting platform for precise wheel alignment consists of a sliding plate at the rear of the rails and recesses for turntables in the front. The mechanical safety ratchet attached to the scissors guarantees perfect stability during wheel alignment.

The wheel-free lift allows free access to the wheels of the vehicle in no time at all. By simply changing a switch on the control column, the operator can switch between the lift of the wheel-free jack and the lift as a whole.

The Uni Lift 3500 NT Plus AMS can be easily retrofitted with the JAX 2000, JAX 2600 or JAX 3200 axle lifts or with LED lighting on the rails, thus adapting to the development of your workshop for a long time to come.&nbsp[semikolon]

  • Lifting time: 35 Seconds / lowering time29 Seconds
  • Capacity: 3500 kg
  • Lifting height of 1970 mm
  • Integrated wheel alignment set with sliding plates and recesses for turntables
  • Fast lifting wheel free lift (RFH) for all work on tyres and wheels
  • Mechanical lock guarantees perfect stability for testing
  • Space-saving: Low rails and short drive-on ramps
  • Flexible installation width
  • Retrofittable with axle lifts and lights
  • 360° access
  • Can also be installed flush with the floor: Uni Lift NT
  • Developed and manufactured in Germany

All Nussbaum hydraulic scissor lifts are equipped with two redundant hydraulic circuits as standard: Nussbaum-s patented hydraulic technology NT. The NT technology controls the perfect synchronisation of the four cylinders of the NT system, which are driven in two independent, redundant hydraulic circuits by a powerful and low-noise suboil motor.

The control unit of the Uni Lift 3500 NT Plus AMS is equipped with a main switch and protected pushbuttons and can be positioned at various distances from the lift. The Uni Lift 3500 NT Plus AMS has no fixed connections between the platforms and can therefore be installed in different installation widths as required. Would you like to install your scissor lift flush with the floor? Click here to go to the inground version: Uni Lift NT

The low power consumption and low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The scissors and platforms are welded in Nussbaum's own state-of-the-art welding machines, shot-peened and then powder-coated Grey Your lift is thus protected against dirt and weather in the long term.

Details
Capacity 3500 kg
Load capacity wheel-free lift 3500 kg
Wheel free lift 1
RAL color RAL 7016 - Grey
Coating Powder coating
Installation type above ground
Platform length min 4500 mm
Sliding plate length 1354 mm
Platform length wheel-free lift max 1945 - 1465 mm
Lifting time 35 sec
Lowering time 29 sec
Lifting height max. 1970 mm
Wheel-free lift stroke 580 mm
Platform height 245 mm
Platform width 635 mm
Drive on height 245 mm
Total width min 2020 - 2320 mm
Recommended installation width 2220 mm
Installation width min. 2020 - 2320 mm
Platform distence min 750 - 1050 mm
Total platform width 2220 mm
Motor power per column 3 KW
Pick up device
Synchronization system
CE-Stop
Oil quantity (approx.) 15 liter
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Noise level (<=) 75 db
Foundation length 4650 mm
Foundation width 2300 mm
Concrete thickness 180 mm
Concrete quality C20/25
Customs tariff number 84254100

Datasheets

Data sheet 111 KB

Foundation plans

Square foundation plan 55 KB
Strip foundation plan 45 KB
Square foundation plan with empty pipe 42 KB
U foundation plan 100 KB
U foundation plan 78 KB
Strip foundation plan with empty pipe 43 KB

Dowel drilling patterns

Dowel hole pattern 64 KB

Inspection books

UNI LIFT 3500 NT PLUS IT 12 MB
UNI LIFT 3500 NT PLUS DE 12 MB
UNI LIFT 3500 NT PLUS EN 12 MB
UNI LIFT 3500 NT PLUS ES 12 MB
UNI LIFT 3500 NT PLUS FR 12 MB
Ersatzteilliste UNI LIFT NT 3500 04/08 5.8 MB

Leaflets

Uni Lift NT Broschüre - Deutsch 2 MB
Uni Lift NT Brochure - English 2 MB
Uni Lift NT Panfleto - Español 2 MB
Uni Lift NT Brochure - Francais 2 MB
Uni Lift NT Prospetto - Italiano 2 MB
1
Packaging
Product Dimensions 4950mm x 770mm x 500mm
Total weight 1350kg
Stackable 2 times
2
Packaging
Product Dimensions 4950mm x 770mm x 500mm
Total weight 1350kg
Stackable 2 times
3
Packaging
Product Dimensions 1350mm x 500mm x 500mm
Total weight 100kg
Stackable nicht Stapelbar
