Uni Lift 3500 NT Plus inground

Uni Lift 3500 NT Plus inground

Item No:UNI035.12451301D-1-7016-00
Uni Lift 3500 NT Plus inground
Scissor car lift Uni Lift 3500 NT 4700 f RAL7016 grey
Customize Compare
Brief description
Item No: UNI035.12451301D-1-7016-00
Lifting capacity: 3500 kg
Type Scissor lift
Color Grey
Händler in Ihrer Nähe 20 Nicht Ihre Postleitzahl? hier eingeben

Wulf Werkstattausrüstung GmbH

Tiedenkamp 12
DE - 24558 Henstedt-Ulzburg
+49(0)4193755090
https://wulf-kfz.de
[email protected]

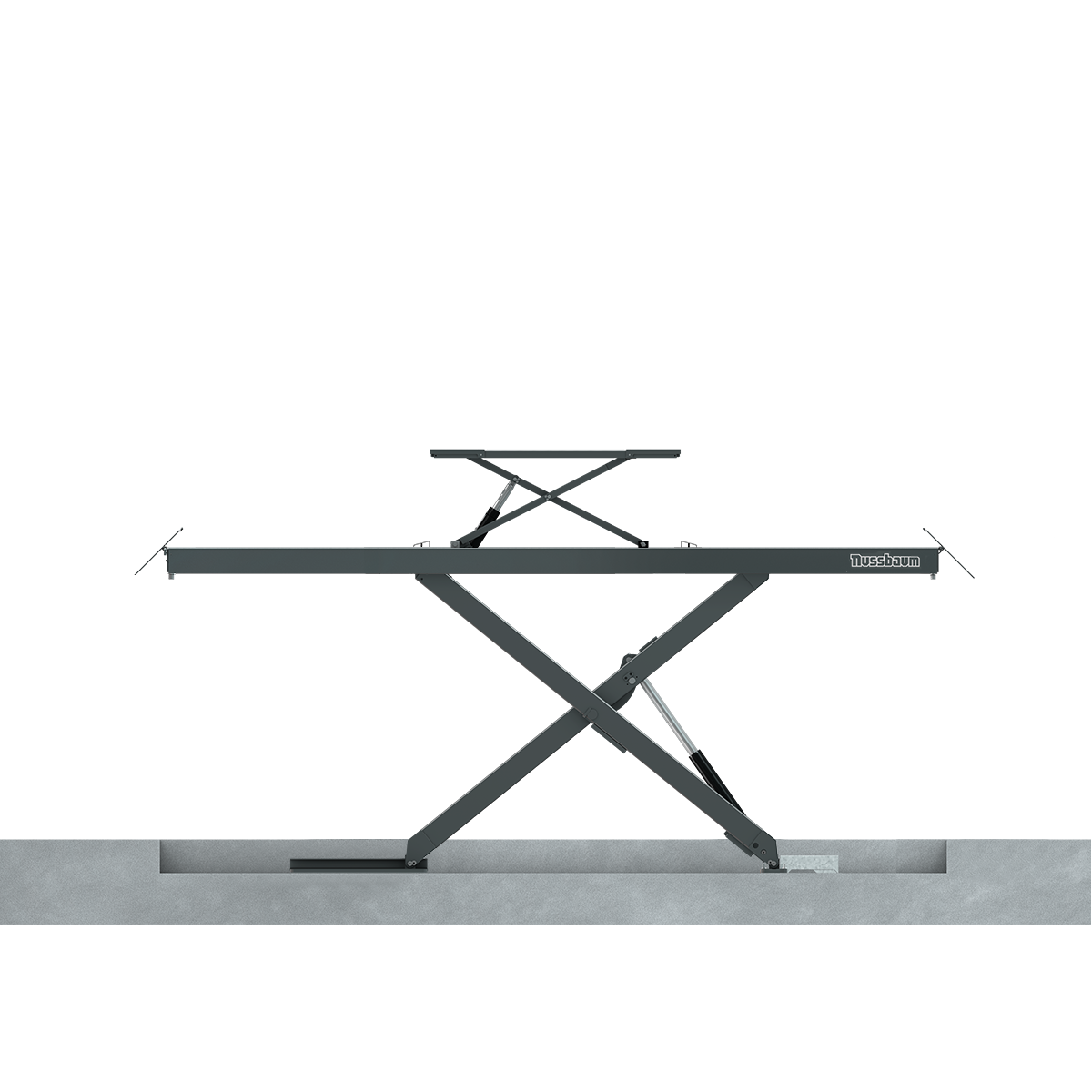

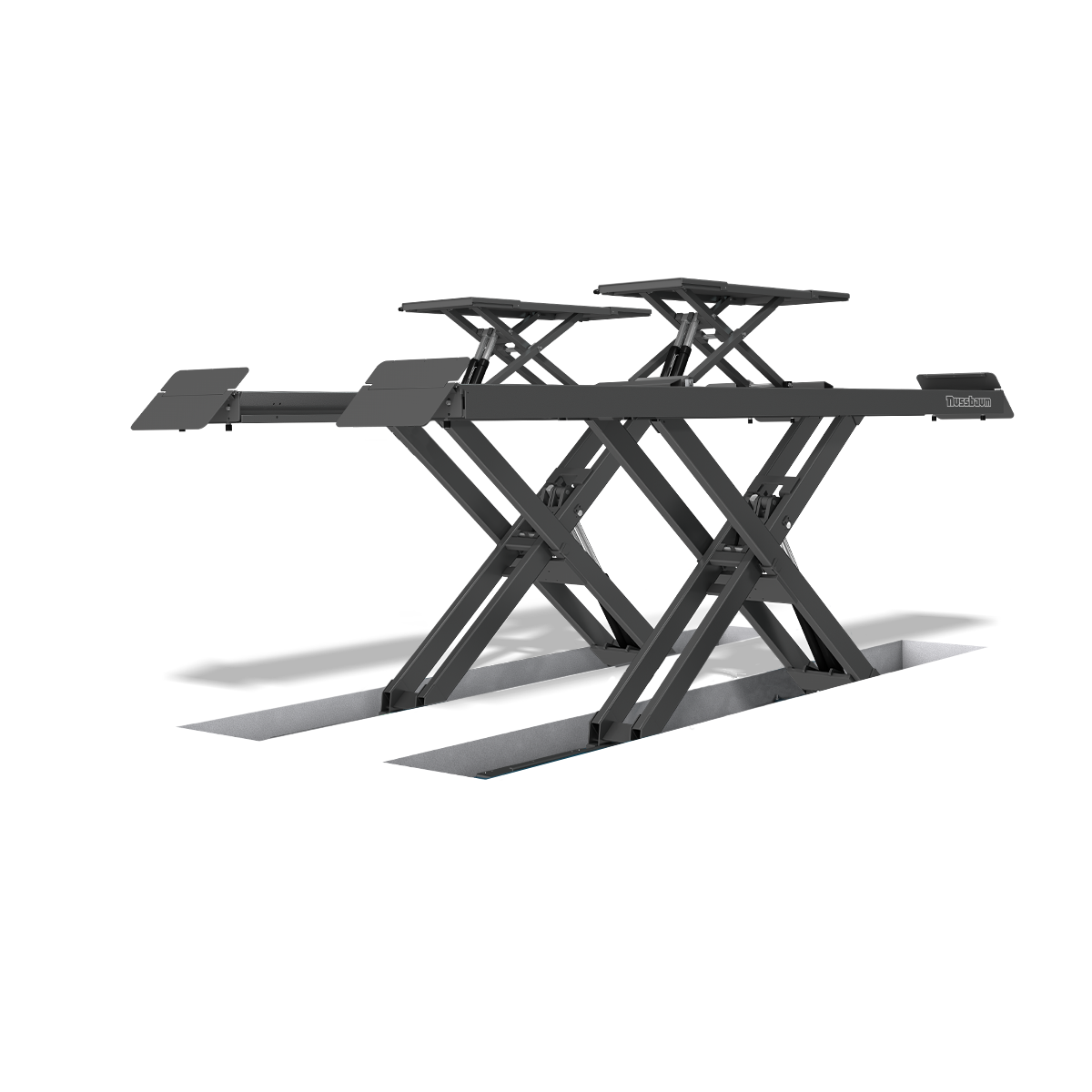

Uni Lift 3500 NT Plus inground

The hydraulic scissor lift Uni Lift 3500 NT Plus inground with a lifting capacity of 3500 kg is the perfect lift for pick-up inspection, diagnosis, tyre service and repairs in the car workshop. With the fast lifting and lowering times, their small space requirement thanks to the low rails and the short ramps, their comfortable Lifting height of 1920 mm, the flexible installation width and the integrated hydraulic wheel free jack (RFH) is The Uni Lift 3500 NT Plus inground The perfect equipment for the car repair shop that needs a lifting platform that can meet all the requirements of a modern service company.

The wheel-free lift allows free access to the wheels of the vehicle in no time at all. By simply changing a switch on the control column, the operator can switch between the lift of the wheel-free jack and the lift as a whole.

The Uni Lift 3500 NT Plus inground can easily be retrofitted with the axle lift JAX 2000, JAX 2600 or JAX 3200 and thus adapts to the development of your workshop for a long time to come.

  • Lifting time: 35 Seconds / lowering time29 Seconds
  • Capacity: 3500 kg
  • Lifting height of 1920 mm
  • Fast lifting wheel free lift (RFH) for all work on tyres and wheels
  • Space-saving: Low rails and short drive-on ramps
  • Flexible installation width, Distance between control unit and lift can be varied as required
  • Retrofittable with axle lifts
  • Two redundant hydraulic circuits with NT technology
  • 360° access
  • Can also be installed on the floor: Uni Lift NT
  • Developed and manufactured in Germany

All Nussbaum hydraulic scissor lifts are equipped with two redundant hydraulic circuits as standard: Nussbaum-s patented hydraulic technology NT. The control unit of the Uni Lift 3500 NT Plus inground is equipped with a main switch and protected pushbuttons and can be positioned at various distances from the lift. The Uni Lift 3500 NT Plus inground has no fixed connections between the platforms and can therefore be installed in different installation widths as required.

Would you like to install your scissor lift on the workshop floor? Click here for the above-ground version: Uni Lift NT

The low power consumption and low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The scissors and platforms are welded in Nussbaum's own state-of-the-art welding machines, shot-peened and then powder-coated Grey Your lift is thus protected against dirt and weather in the long term.

Details
Capacity 3500 kg
Load capacity wheel-free lift 3500 kg
Wheel free lift 1
RAL color RAL 7016 - Grey
Coating Powder coating
Installation type inground
Platform length min 4500 mm
Platform length wheel-free lift max 1945 - 1465 mm
Lifting time 35 sec
Lowering time 29 sec
Lifting height max. 1920 mm
Wheel-free lift stroke 580 mm
Platform height 195 mm
Platform width 635 mm
Drive on height 195 mm
Total width min 2020 - 2320 mm
Recommended installation width 2220 mm
Installation width min. 2020 - 2320 mm
Platform distence min 750 - 1050 mm
Total platform width 2220 mm
Motor power per column 3 KW
Pick up device
Synchronization system
CE-Stop 1
Lighting (type)
Lighting (number)
Oil quantity (approx.) 15 liter
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Noise level (<=) 75 db
Foundation length 4650 mm
Foundation width 2300 mm
Concrete thickness 180 mm
Concrete quality C20/25
Customs tariff number 84254100

Datasheets

Data sheet above ground 98 KB

Foundation plans

Strip foundation plan with channel 36 KB
Square foundation plan 35 KB
Square foundation plan with empty pipe 60 KB
U foundation plan 73 KB
U foundation plan 76 KB
Strip foundation plan with empty pipe 36 KB

Dowel drilling patterns

Dowel hole pattern 64 KB

Inspection books

UNI LIFT 3500 NT PLUS IT 12 MB
UNI LIFT 3500 NT PLUS DE 12 MB
UNI LIFT 3500 NT PLUS EN 12 MB
UNI LIFT 3500 NT PLUS ES 12 MB
UNI LIFT 3500 NT PLUS FR 12 MB
Ersatzteilliste UNI LIFT NT 3500 04/08 5.8 MB

Leaflets

Uni Lift NT Broschüre - Deutsch 1.9 MB
Uni Lift NT Brochure - English 1.9 MB
Uni Lift NT Panfleto - Español 1.9 MB
Uni Lift NT Brochure - Francais 1.9 MB
Uni Lift NT Prospetto - Italiano 1.9 MB
1
Packaging
Product Dimensions 4950mm x 770mm x 500mm
Total weight 1350kg
Stackable 2 times
2
Packaging
Product Dimensions 4950mm x 770mm x 500mm
Total weight 1350kg
Stackable 2 times
3
Packaging
Product Dimensions 1350mm x 500mm x 500mm
Total weight 100kg
Stackable nicht Stapelbar
