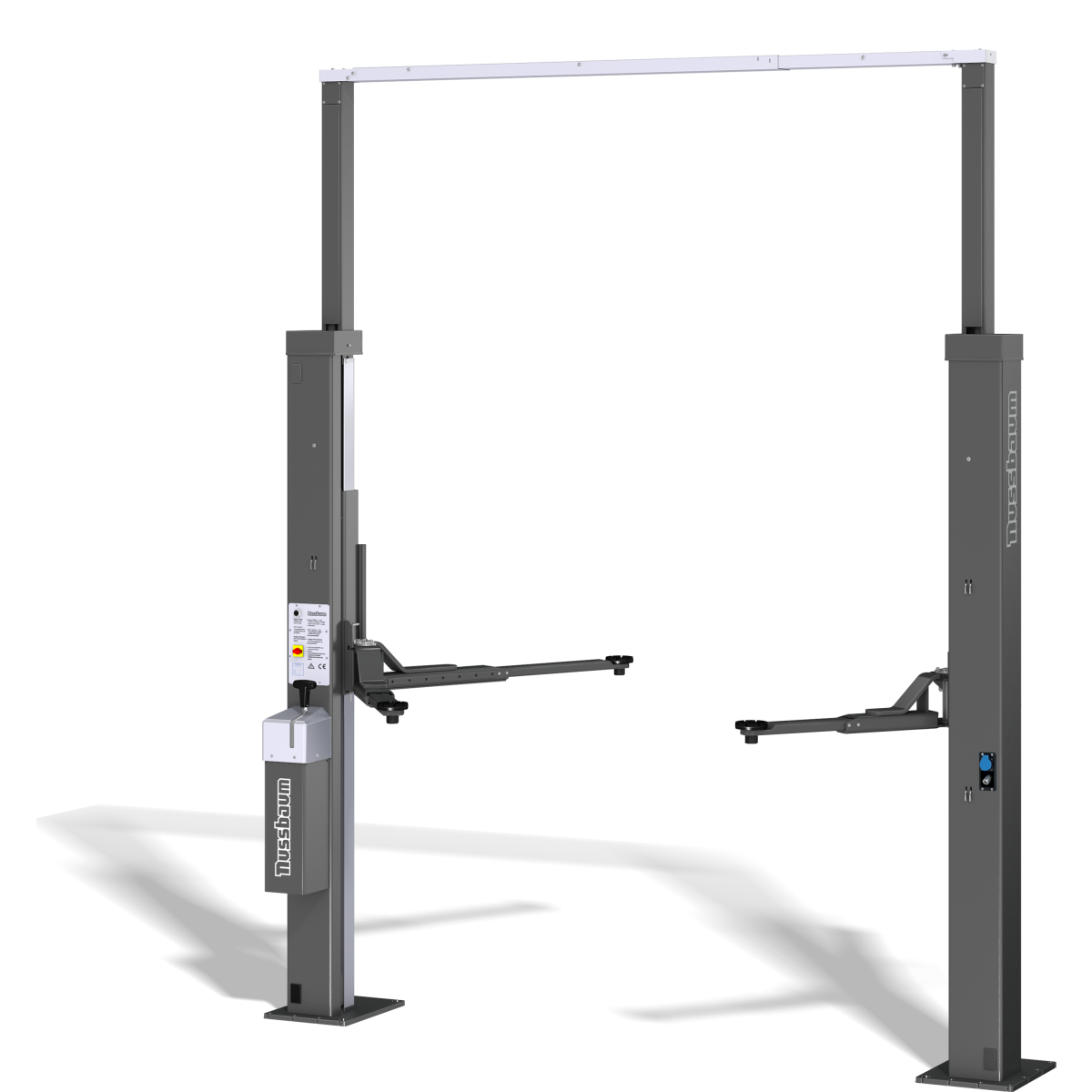

Power Lift HF 3S 3500 SC

Hydraulic 2-post lift with triple safety system and extra flat sportscar arms

Power Lift HF 3S 3500 SC

Item No:HLNTK235.0000150D-7016
Power Lift HF 3S 3500 SC

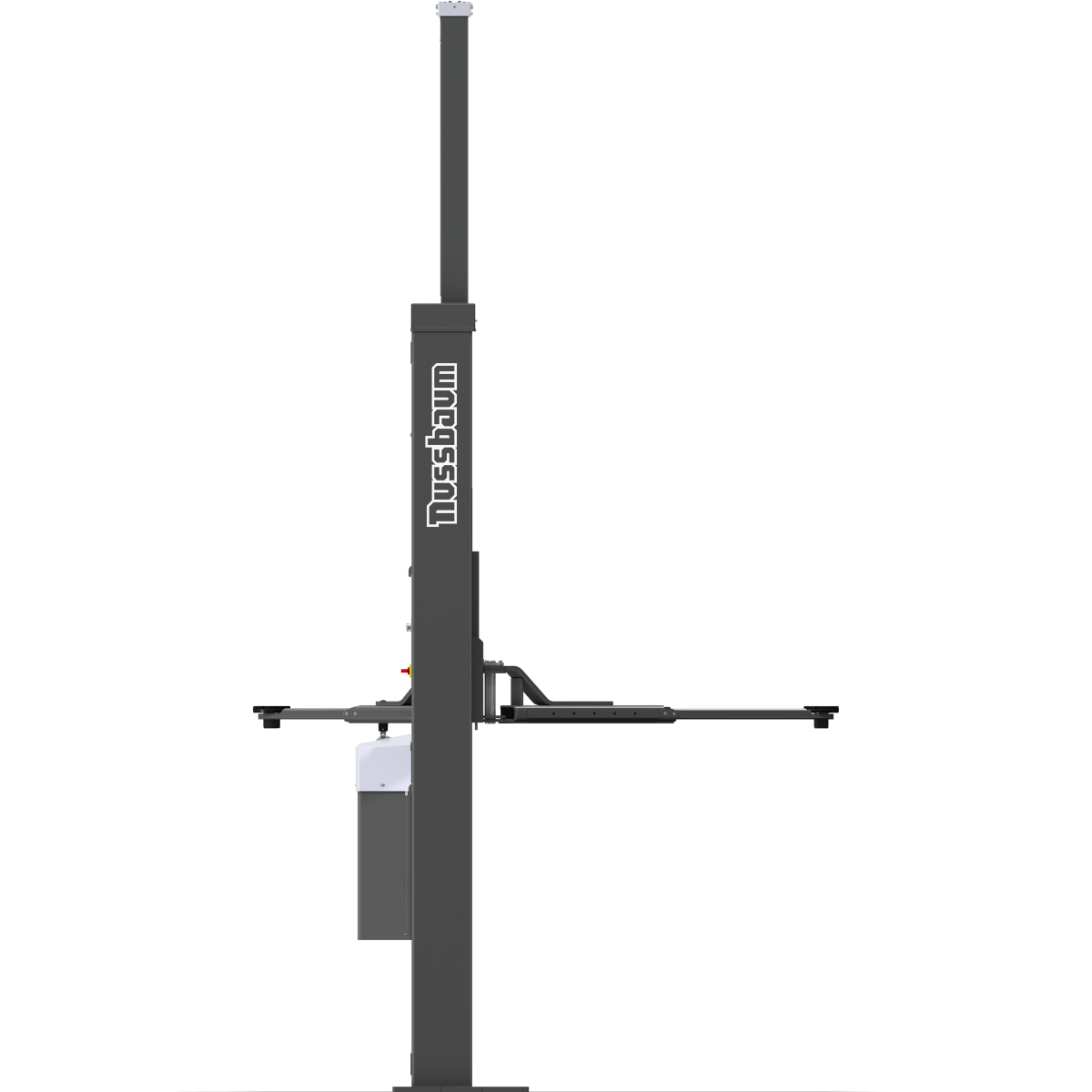

2 post lift HF 3S 3500 MM s RAL7016 grey

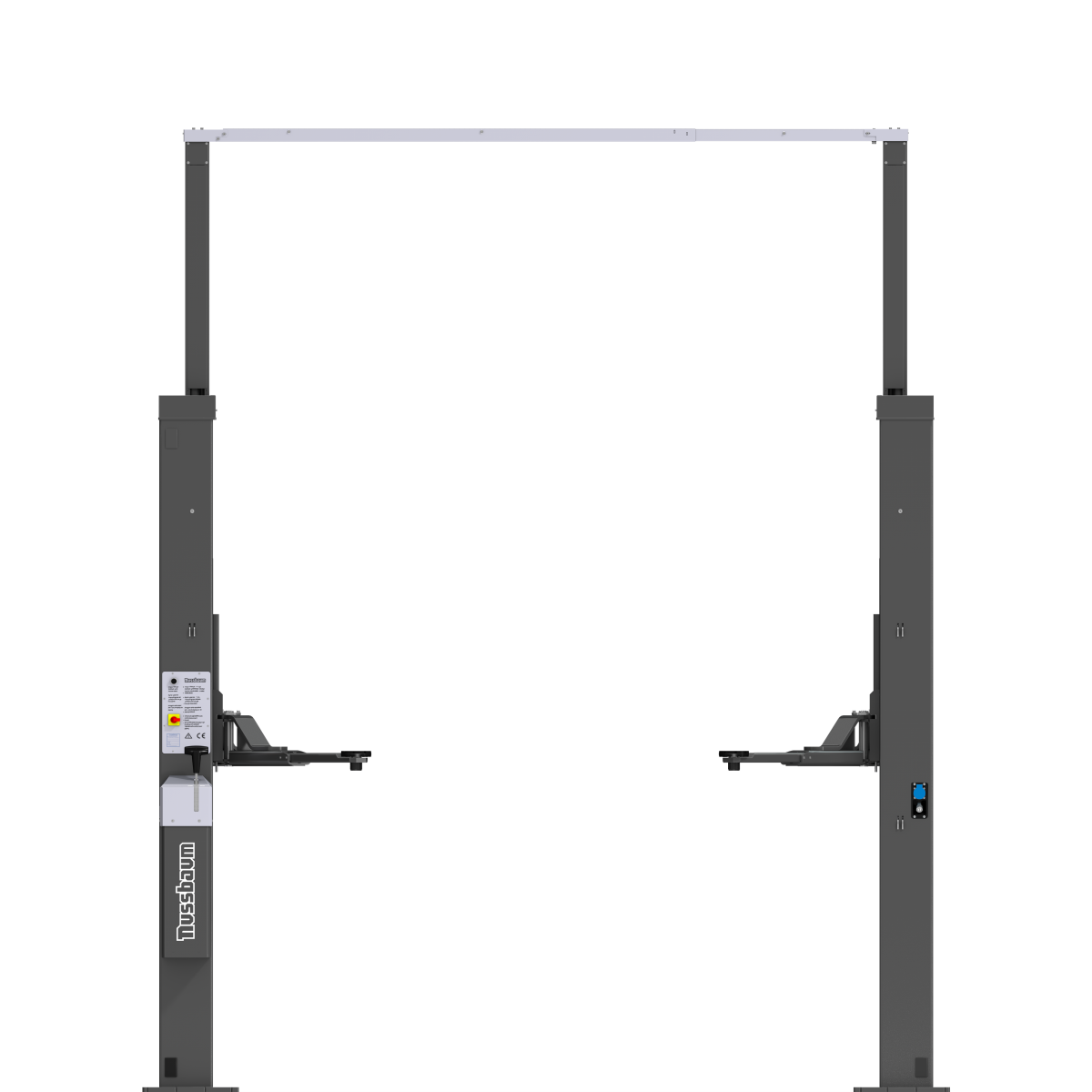

2 post lift HF 3S 3500 SC f RAL7016 grey
Customize Compare
Brief description
Item No: HLNTK235.0000150D-7016
Lifting capacity: 3500 kg
Type 2 post lift
Color Grey
Händler in Ihrer Nähe 20 Nicht Ihre Postleitzahl? hier eingeben

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

Power Lift HF 3S 3500 SC

The hydraulic 2-post lift Power Lift HF 3S 3500 SC with a load capacity of 3500 kg and extraflat, asymmetrical Sportscar arms is the ideal lift for the demanding automotive workshop, where even very low vehicles can be lifted? The Power Lift HF 3S 3500 SC is The world's only lift with triple safety system. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance.

The extraflat arms with a pickup height of only [Unterschwenkhöhe] mm glide under all low-level vehicles.

The Power Lift HF 3S 3500 SC is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies ausgestattet and is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg .

  • Lifting time: 23 seconds / Lowering time [AttributeShortCode,attribute=Lowering time,attributeid=62] seconds
  • Load capacity: 3500 kg
  • Triple safety: Two redundant hydraulic circuits plus Automatic safety latch (no clacking during lifting and lowering)
  • Extra-flat SC arms with a lower swivel height of only [Unterschwenkhöhe] mm
  • Adjustable in width and height (with optional column extension)
  • Compressed air connection and 220 V socket integrated in column
  • High quality: Every power unit and every hydraulic cylinder is tested before shipment
  • Developed and manufactured in Germany

The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort anbieten. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety.

The Power Lift HF 3S 3500 SC is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations. Their base frame-free design, adjustable in width and height, enables a wide range of installation combinations and variants:  Mit a minimum height of [AttributeShortCode,attribute=Erforderliche Deckenhöhe,attributeid=77] mm and thanks to the optional riser pipe extensions the Power Lift HF 3S 3500 SC can be used both in workshops with low ceiling heights and to lift the underbody of high vehicles such as vans and vans to the ideal working height for you.

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. The low power consumption, the consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs, also thanks to the reduced number of moving parts, reduce running costs. The pump unit integrated in a sound-absorbing metal housing is mounted on the control column and easily accessible for maintenance work. A compressed air connection and a 220 V socket are integrated in the slave column. The arms and columns are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently Grey powder-coated. Your lift is thus protected against dirt and weather in the long term.

The design and the processing of the Power Lift HF 3S 3500 SC give it an elegant overall appearance, which also allows your workshop to appear in the best light in direct customer contact.

How does the Nussbaum safety catch differ from conventional safety systems?

During the lifting process, the Nussbaum safety latch automatically secures the vehicle at intervals of 100 mm up to the maximum lifting height of 1935 mm. The safety switch attached to the control column allows the lift to be additionally placed manually in the latch. In contrast to conventional 2-post lifts, the safety latch does not make any clicking noise during lifting and lowering, which is typical for this type of lifts. The vehicle can be lowered immediately after release of the latch, without first having to be lifted upwards out of the latch.

Scope of delivery

Hebebühne mit asymmetrischen, teleskopierbaren Tragarmen, vier im Tragarm fixierte Drehteller, Energie-Set: E-Set (230 V/ Druckluft) in der Bediensäule integriert

Installation requirements

Fundamentstärke 200mm C20/25 normale Bewehrung, 16 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set, Hydrauliköl HLP32 ca. 10l, Entladung

Details
Capacity 3500 kg
RAL color RAL 7016 - Grey
Pick up pad height min 84 - 144 mm
Min length front arm 590 - 865 mm
Min length rear arm 840 - 1380 mm
Lifting time 26 sec
Lowering time 14 sec
Lifting height 2005 mm
Required ceiling height 4182 mm
Total height min 4040 mm
Total width min 3350 mm
Clear distance between columns min 2520 - 2762 mm
CE-Stop ja
E-Set
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Engine power 3 KW

Datasheets

Data sheet HL 235 SC / HF 3S 3500 SC 245 KB

Foundation plans

Foundation plan 48 KB
Cube foundation plan 55 KB

Liftingpatterns

Pickup point matrix HF 3S 3500 SC Porsche 315 KB
Pickup point matrix SL 235 SC / HF 3S 3500 SC 577 KB
Pickup point matrix SL 235 SC / HF 3S 3500 SC MB 381 KB
Pickup point matrix SL 235 SC / HF 3S 3500 SC Porsche 342 KB

Inspection books

OPI POWER LIFT HF3S 2xx NT K V10 DE EN FR ES IT 17 MB

Leaflets

Power Lift HF 3S Broschüre - Deutsch 3 MB
Power Lift HF 3S Brochure - English 3 MB
Power Lift HF 3S Panfleto - Español 3 MB
Power Lift HF 3S Brochure - Français 3 MB
Power Lift HF 3S Prospetto - Italiano 3 MB
1
Packaging
Product Dimensions 4120mm x 800mm x 600mm
Total weight 700kg
Stackable 3 times
