Lifts for passenger cars & transporters / Electromechanic / 2 post lift / SMART LIFT / Smart Lift 2.30 SL DT

Smart Lift 2.30 SL DT

Electromechanical 2-column lift with spindle and double telescopic arms

Smart Lift 2.30 SL DT

Item No:SL230.8000120D-5001 Price: Part not available anymore
Smart Lift 2.30 SL DT
2 post lift Smart Lift 2 30 SL DT f RAL5001 blue
2 post lift Smart Lift 2 30 SL DT s RAL5001 blue
Energieset
arbeitsfreundliche Tuerfreiheit
SL-DT-Tragarm_b
Online price
Part not available anymore
Compare
Brief description
Item No: SL230.8000120D-5001
Lifting capacity: 3000 kg
Type 2 post lift
Color Blue
Händler in Ihrer Nähe 43 Nicht Ihre Postleitzahl? hier eingeben

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

Smart Lift 2.30 SL DT

The electromechanical 2 column lift Smart Lift 2.30 SL DT with spindle, a load capacity of 3000 kg and asymmetrical 2-times telescopic arms is the ideal lift for the price-conscious and demanding car workshop. With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns.

  • Lifting time and lowering time: 40 seconds
  • Load capacity: 3000 kg
  • Adjustable in width and height, low minimum space requirement
  • Ideal for low ceiling heights with minimum height of only 3100 mm
  • Compressed air connection and 220 V socket as standard integrated into the column
  • High quality: each unit is individually tested under load before shipment
  • Developed and manufactured in Germany

The Nussbaum Smart-Lift series has proven itself for over 20 years. Today, more than 100,000 Smart Lift lifts are available worldwide to assist car mechanics in their everyday work.

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently azul powder-coated. Your lift is thus protected against dirt and weather in the long term.

Scope of delivery

Lift with cable bridge (adjustable), asymmetrical, telescopic arms, 4 turntables fixed in the arm, energy set (option): E-Set (230 V/ compressed air) in the control column

Installation requirements

Foundation 200 mm C20/25 standard reinforcement, 12 dowels BM12-20/80/40 (depending on foundation, see manual), eletric connection 3 PH, N + PE, 400 V, 50 Hz, 16 Amp. slow fuse, Compressed air connection for energy set (Option), Unloading

Details
Capacity 3000 kg
RAL color RAL 5001 - blue
Coating Powder coating
Pick up pad height min 95 - 140 mm
Pick up pad height min 95 - 140 mm
Min length front arm 480 - 870 mm
Min length rear arm 940 - 1495 mm
Lifting/lowering time 40 sec
Lifting height max. 1983 mm
Required ceiling height 2900 mm
Total height min 3716 - 4167 mm
Column height 2890 mm
Clearance height min 3682 - 4133 mm
Total width min 3000 - 3300 mm
Recommended installation width 3100 mm
Installation width min. 3000 - 3300 mm
Drive-through width min 2214 - 2514 mm
Drive-through width column min 2460 - 2760 mm
Drive-through width lifting carriage min 2214 - 2514 mm
Clear distance between columns min 2460 - 2760 mm
Motor power per column 1,5 KW
Pick up device
Synchronization system
E-Set yes
Compressed air supply ja
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection 16 Amp. slow-blow
Foundation length 3500 mm
Foundation width 1600 mm
Concrete thickness 200 mm
Concrete quality C20/25
Customs tariff number 84254100

Datasheets

Data sheet & foundation plan 96 KB

Foundation plans

Foundation plan SL 107 KB
Cube foundation plan SL 112 KB

Dowel drilling patterns

Dowel hole pattern 35 KB

Liftingpatterns

Pickup point matrix SL 230 DT 62 KB
Pickup point matrix SL 230 DT / HL 230 DT 138 KB

Inspection books

SMART LIFT 2.30 SL - 2.40 SL HYMAX S 3000 - 4000 DE EN FR ES IT 32 MB
OPI SMART LIFT 2 30SL 2 35SL 2 40SL V4 7 DE EN FR ES IT 102023 Web v3 31 MB

Leaflets

SMART LIFT Broschüre - Deutsch 2.6 MB
SMART LIFT Brochure - English 2.6 MB
SMART LIFT Panfleto - Español 2.6 MB
SMART LIFT Brochure - Français 2.6 MB
SMART LIFT Prospetto - Italiano 2.6 MB
1
Packaging
Product Dimensions 2960mm x 770mm x 550mm
Total weight 600kg
Stackable 3
Listenansicht Explosionsansicht
225SL25031M 01
Bearing housing mounted Rd. 98x50 C45 Mounting part Item No: 225SL25031M
in stock
990842 detail
Contactor DC24V / 5,7KW / 400V [27] Item No: 990842
in stock
Cover plate BL. 1,25x198x2760 DX 51 D+Z cpl. Item No: 240SL09008
low stock
970029
Deep groove ball bearings, single row, 6007-2RS Item No: 970029
in stock
970028
Deep groove ball thrust bearing, 51207 Item No: 970028
in stock
901103031
Elastomer support Drm. 125x24 mm Item No: 901103031
in stock
9232SL393004
Electro SL cable set (3 wires) is included with the stage Item No: 232SL03040
low stock
9225SL05093
Energieset Kunststoff 70X50X150 Item No: 225SL05093
low stock
232SL01003EL
Engine 232 SL Electronics ELMA Item No: 232SL01003EL
Delivery time on request
970658
Felt ring MNII raw white 62X43X8 Item No: 970658
in stock
9232SL393024
Fuse holder for E-Set incl. fine fuse 5x20 mm 6,3A Item No: 232SL393024
in stock
970020 view02
Grease nipple (9AM6X1) Steel DIN 71412 M 6x1 Item No: 970020

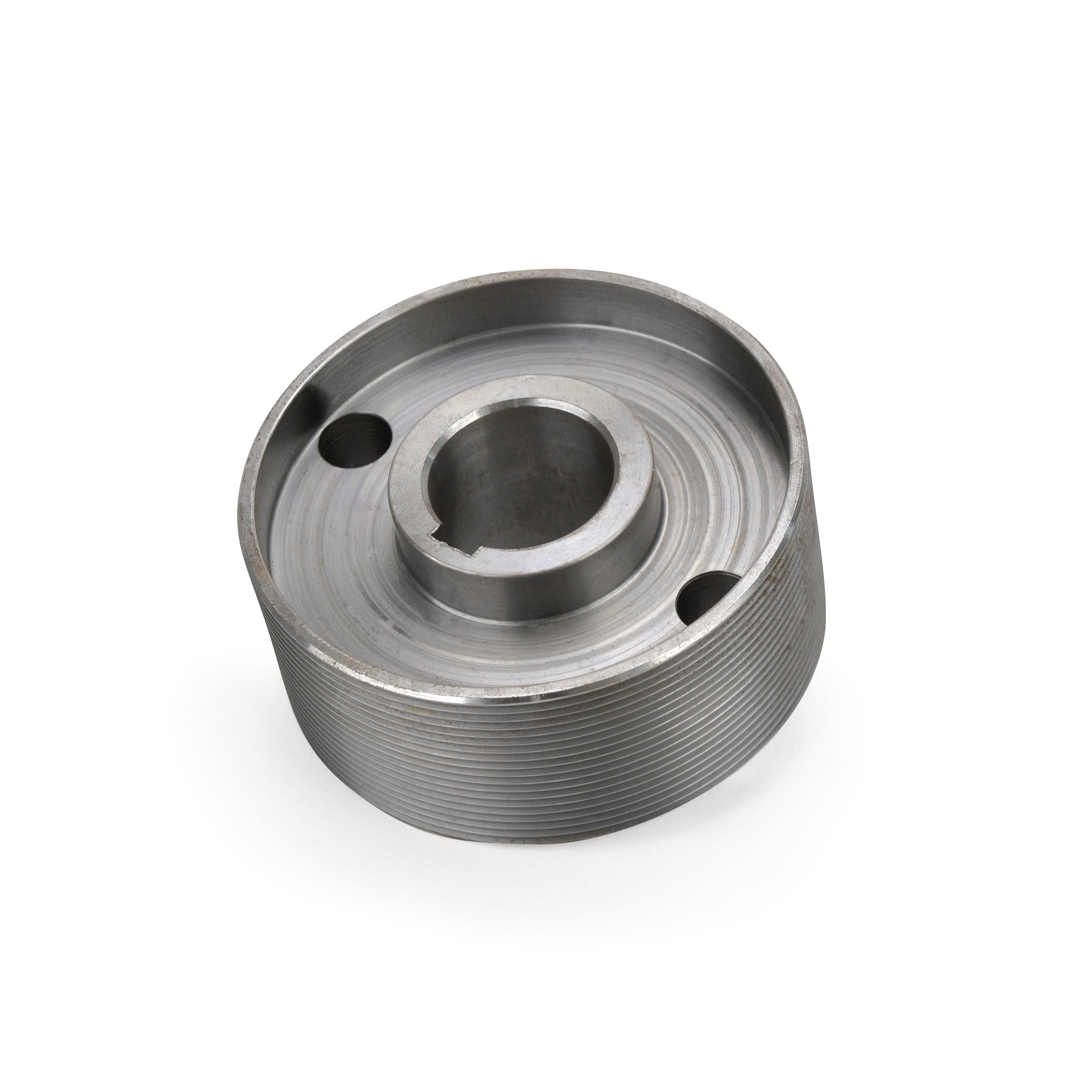

225SL02010
Grooved pulley Rd. 107x45 9S20K Item No: 225SL02010
low stock
Head plate Operating side Welding part Item No: 232SL25015
Delivery time on request
Head plate Opposite side Welding part Item No: 232SL25016
970978 2
Hose clamp 40-60 MM12,2 MM galvanized Item No: 970978
in stock
9232SL393004
Kabelsatz SL komplett Item No: 232SL393004 Replacement item: 232SL03040
232SL02018 ohne sp.
Lifting + following nut with pawl cpl. f. SLE-eletr. version Item No: 232SL02018
Delivery time on request
225SL08073
Mounting plate completely assembled Item No: 225SL08073
low stock
225SL06103S1 2
Profile rubber 400 mm long Item No: 225SL06103S1
in stock

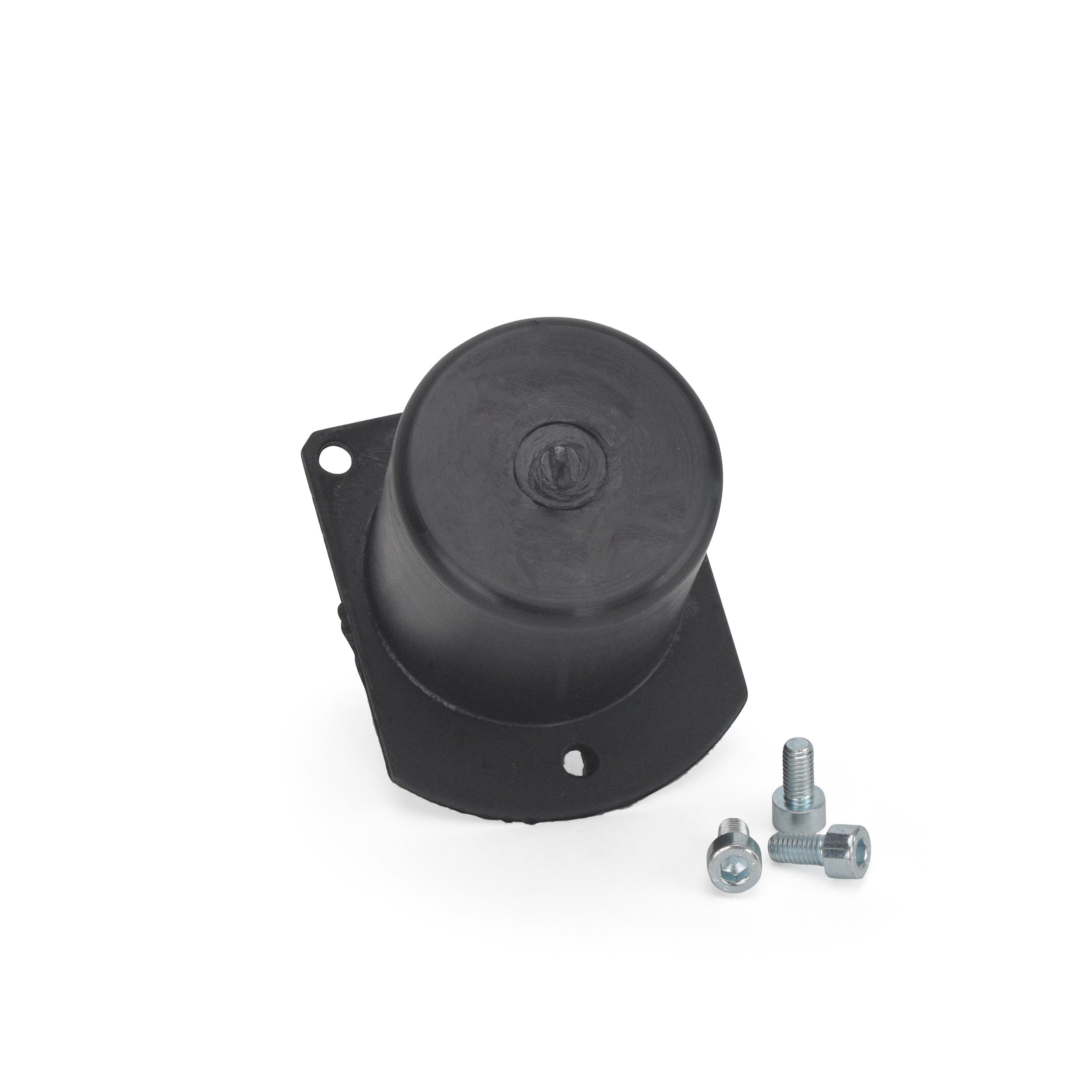

225SL08227 ET
Protective cover 50x58x70 PA cpl. Item No: 225SL08227-ET
in stock
Pull rod compl. incl. pressure spring, clamping sleeve and protective cap Item No: 232NSTL28096-ET
low stock
Pulling rod compl. incl. pressure spring, clamping sleeve and protective cap Item No: 232NSTL28095-ET
Delivery time on request
Querrohr Bl. 1,5x156x2500 DX51 D+Z kpl. Item No: 225SL05083 Replacement item: 240SL05700
994777
Reversing switch W 151/93.1000-SO-NU Item No: 994777
in stock
970699
Ribbed belt RB 17 PJ 457 Item No: 970699
in stock
990646 view02
Schuko socket outlet blue 10/16A 230V IP54 Item No: 990646
in stock
970008
Schutzkappe f.Ziehstange 10mm Item No: 970008
in stock
225SL09010 2
Sichtschutz Bl. 1,0x98x230 StW22 DD11 kpl. Item No: 225SL09010
0000827 01
SL-Synchronized potentiometer Complete Item No: 232SL03003
low stock
9225SL06036
Sliding block 10x20x46 PA6.6 Item No: 225SL06036
in stock
9225SL06038
Sliding block 4 FL. 15X10X50 PA6.6 Item No: 225SL06038
in stock
Sliding Block Fl. 35x18x80 PA6 black Item No: 240HLNT06035-ET
in stock
9225SL06033
Sliding block Fl. 35x45x80 PA6.6 black Item No: 225SL06033
Delivery time on request
Spannelement VKT. 20x50 S235JR inkl. galv. verzinkt Item No: 225SL25026
low stock
232SL02024 mit spindel
Spindle assembly for SL with electronic synchronisation control Item No: 232SL02024
Delivery time on request
225SL62025K
Spindle guide cpl. Item No: 225SL62025K
low stock
970006
Sprengring SW40 N0400 ST VR004580-2 Item No: 970006
in stock
Steigrohr / Querrohr kpl. galv. verzinkt für SL 2.40 Item No: 240SL05700
Delivery time on request
9225SL45073
Steigrohr Bl. 1,5x127x985 DX51 D+Z kpl. Item No: 225SL45073 Replacement item: 240SL05700
940253
Steuerplatine SL ZPR 100 S mit Poti Item No: 940253 Replacement item: 940253-1
240SL03000 ET
Steuerung SMART LIFT kpl mit CE-Stop / Frontplatte V2A / inkl. Schrauben Item No: 240SL03000-ET
low stock
Toothed pulley NEW STL cpl. Item No: 232NSTL08013-ET
low stock
232NSTL08013
Toothed pulley NEW STL Rd. 100x12 ( galvanized ) -KANBAN- Item No: 232NSTL08013
Tragarm 232SL DT Kurz Komplett Item No: 232SL08410-5001
Delivery time on request
Tragarmbolzen mit Wellenringe Item No: 232POW08016
low stock
225SL08075
Welding part support plate (galvanised) Item No: 225SL08075 Replacement item: 225SL08073
1 2 3 4 6 7 13 14

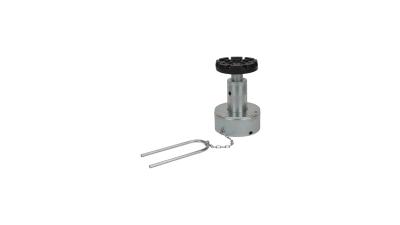

Adjustable top set 155-245 mm, set = 4 pieces. Item No: 232SEL48593

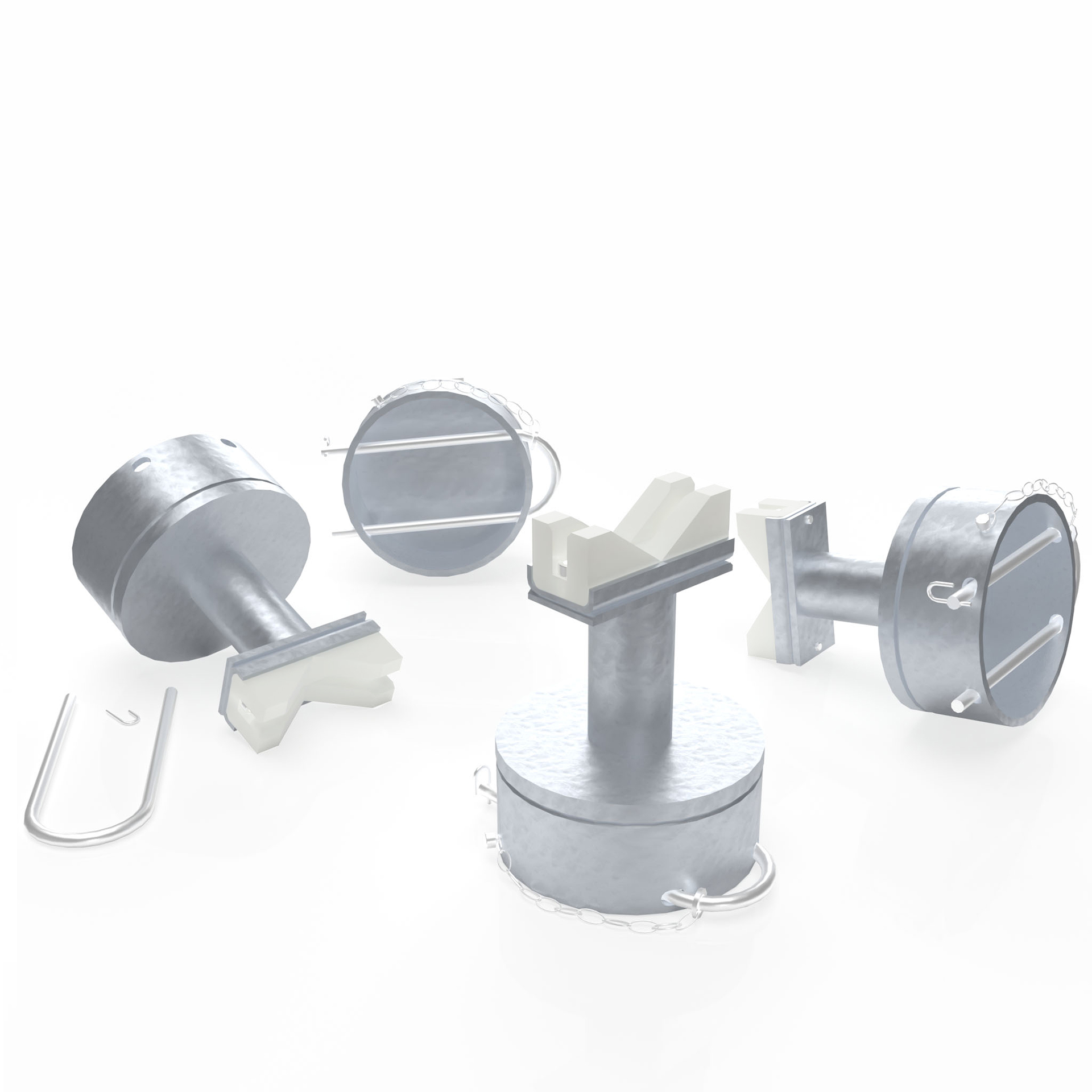

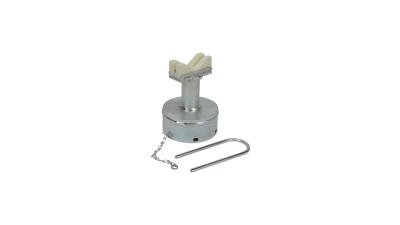

Attachment set for MB 100 rigid 145 mm, set = 4 pieces. Item No: 232SEL48258
Attachment set rigid 151 mm, set = 4 pieces. Item No: 232HEL48081
Attachment set rigid 44 mm, set = 4 pieces. Item No: 225SL08300
