Smart Lift 2.30 SL MM

Electromechanical 2 column lift with spindle and Mini Max arms

Smart Lift 2.30 SL MM

Item No:SL230.8000144D-5001
Smart Lift 2.30 SL MM

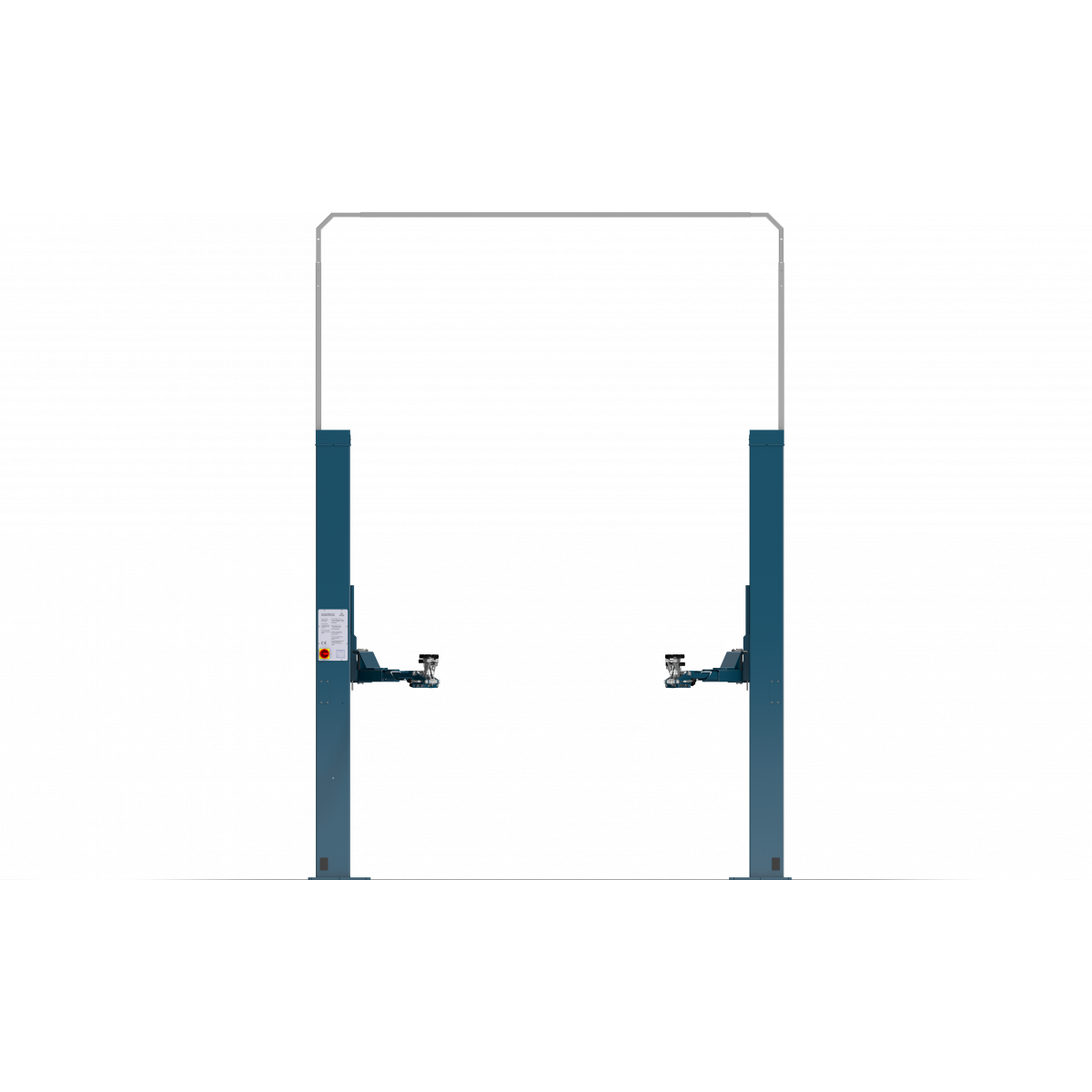

2 post lift Smart Lift 2 30 SL MM f RAL5001 blue
MiniMax 002
MiniMax 005
Smart Lift 2.30 SL MM s RAL5001 blue CE
Customize Compare
Brief description
Item No: SL230.8000144D-5001
Lifting capacity: 3000 kg
Type 2 post lift
Color Blue

Smart Lift 2.30 SL MM

The electromechanical 2 column lift Smart Lift 2.30 SL MM with spindle, a load capacity of 3000 kg and asymmetrical 2-times telescopic arms is the ideal lift for the price-conscious and demanding car workshop. With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns. The Mini Max support plates allow easy access to the pick-up points of lowered vehicles, vehicles with deep-drawn side skirts or off-road vehicles. The support plates can be conveniently raised to the subfloor by foot after swiveling in.

  • Lifting time and lowering time: [AttributeShortCode,attribute=Hub-/Lowering time,attributeid=88] seconds
  • Load capacity: 3000 kg
  • Adjustable in width and height, low minimum space requirement
  • Ideal for low ceiling heights with minimum height of only [AttributeShortCode,attribute=Erforderliche Deckenhöhe,attributeid=77] mm
  • Height-adjustable Mini Max arms with simple foot control
  • Compressed air connection and 220 V socket as standard integrated into the column
  • High quality: each unit is individually tested under load before shipment
  • Developed and manufactured in Germany

The Nussbaum Smart-Lift series has proven itself for over 20 years. Today, more than 100,000 Smart Lift lifts are available worldwide to assist car mechanics in their everyday work.

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently Blue powder-coated. Your lift is thus protected against dirt and weather in the long term.

Scope of delivery

Lift with cable bridge (adjustable), asymmetrical, telescopic arms, 4 turntables fixed in the arm, energy set (option): E-Set (230 V/ compressed air) in the control column

Installation requirements

Foundation 200 mm C20/25 standard reinforcement, 12 dowels BM12-20/80/40 (depending on foundation, see manual), eletric connection 3 PH, N + PE, 400 V, 50 Hz, 16 Amp. slow fuse, Compressed air connection for energy set (Option), Unloading

Details
Capacity 3000 kg
RAL color RAL 5001 - Blue
Coating Powder coating
Recommended installation width 3300 mm
Required ceiling height 2900 mm
Pick up pad height max 185 mm
Pick up pad height min 75 - 185 - 75 mm
Min length front arm 600 - 980 mm
Min length rear arm 1000 - 1480 mm
Lifting height max. 2020 mm
Clear distance between columns min 2460 - 2760 mm
Synchronization system
Column height 2890 mm
Installation width min. 3000 - 3300 mm
Total width min 3000 - 3300 mm
Lifting/lowering time 40 sec
Clearance height min 3682 - 4133 mm
Drive-through width min 2226 - 2526 mm
Drive-through width column min 2460 - 2760 mm
Drive-through width lifting carriage min 2226 - 2526 mm
Total height min 3716 - 4167 mm
Motor power per column 1,5 KW
Pick up device
E-Set
Compressed air supply ja
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Foundation length 3700 mm
Foundation width 1600 mm
Concrete thickness 200 mm
Concrete quality C20/25
Customs tariff number 84254100

Datasheets

Data sheet 220 KB

Foundation plans

Foundation plan 107 KB
Cube foundation plan 112 KB

Dowel drilling patterns

Dowel hole pattern 35 KB

Liftingpatterns

Pickup point matrix 708 KB

Inspection books

SMART LIFT 2.30 SL - 2.40 SL HYMAX S 3000 - 4000 DE EN FR ES IT 32 MB

Leaflets

Smart Lift Broschüre - Deutsch 2.2 MB
Smart Lift Brochure - English 2.2 MB
Smart Lift Panfleto - Español 2.2 MB
Smart Lift Brochure - Français 2.2 MB
Smart Lift Prospetto - Italiano 2.2 MB
1
Packaging
Product Dimensions 2960mm x 770mm x 550mm
Total weight 600kg
Stackable 3 times
Listenansicht Explosionsansicht
Ball knob for striking GN 319-KT-32-B10-M Item No: 970233 Replacement item: 250HDL48119
Bearing housing mounted Rd. 98x50 C45 Mounting part Item No: 225SL25031M
in stock
Carrier arm symbols with shaft rings Item No: 232POW08016-ET
Delivery time on request
Clamping element VKT. 20x50 S235JR incl. galvanized Item No: 9225SL25026
Delivery time on request
Contactor DC24V / 5,7KW / 400V [27] Item No: 990842
in stock
Control unit SL RAL 5001 Item No: 232SL03009-RAL5001 Replacement item: 240SL03000-ET
Cover plate BL. 1,25x198x2760 DX 51 D+Z cpl. Item No: 240SL09008
low stock
Deep groove ball bearings, single row, 6007-2RS Item No: 970029
in stock
Deep groove ball thrust bearing, 51207 Item No: 970028
in stock
Elastomer support Drm. 125x24 mm Item No: 901103031
in stock
Electro SL cable set (3 wires) is included with the stage Item No: 232SL03040 Replacement item: 232SL393004
low stock
Energy set plastic 70X50X150 Item No: 9225SL05093
low stock
Engine 232 SL Electronics ELMA Item No: 232SL01003EL
in stock
Felt ring MNII raw white 62X43X8 Item No: 970658
in stock
Fuse holder for E-Set incl. fine fuse 5x20 mm 6,3A Item No: 232SL393024
in stock
Grease nipple (9AM6X1) Steel DIN 71412 M 6x1 Item No: 970020
in stock
Grooved pulley Rd. 107x45 9S20K Item No: 225SL02010
low stock
Head plate Operating side Welding part Item No: 232SL25015
low stock
Head plate Opposite side Welding part Item No: 232SL25016
low stock
Hose clamp 40-60 MM12,2 MM galvanized Item No: 970978
in stock
Kabelsatz SL komplett Item No: 232SL393004
low stock
Leg spring T-19151R right 1.4310 9940 Item No: 971721
Lifting + following nut with pawl cpl. f. SLE-eletr. version Item No: 232SL02018
Delivery time on request
Minimax Right Complete Item No: 232SLF08801
Delivery time on request
Profile rubber 400 mm long Item No: 225SL06103S1
in stock
Pull rod compl. incl. pressure spring, clamping sleeve and protective cap Item No: 232NSTL28096-ET
Delivery time on request
Pulling rod compl. incl. pressure spring, clamping sleeve and protective cap Item No: 232NSTL28095-ET
low stock
Reversing switch W 151/93.1000-SO-NU Item No: 994777
in stock
Rippenband RB 17 PJ 457 Item No: 970699
in stock
Riser pipe sheet 1,5x127x985 DX51 D+Z cpl. Item No: 9225SL45073 Replacement item: 240SL05700
Riser pipes 250SL sheet 2x154x1179 QSTE372 ZN r. + l. Item No: 9250SL05070SET Replacement item: 240SL05700
Rubber profile 480 MM Item No: 9225SL06003S3
Delivery time on request
Schuko socket outlet blue 10/16A 230V IP54 Item No: 990646
in stock
Schutzkappe f.Ziehstange 10mm Item No: 970008
in stock
sheet metal blinds 1,0x98x230 StW22 DD11 cpl. Item No: 9225SL09010
Delivery time on request
SL-Synchronized potentiometer Complete Item No: 232SL03003
Delivery time on request
Sliding block 10x20x46 PA6.6 Item No: 225SL06036
in stock
Sliding block 4 FL. 15X10X50 PA6.6 Item No: 225SL06038
in stock
Sliding Block Fl. 35x18x80 PA6 black Item No: 240HLNT06035-ET
Delivery time on request
Sliding block Fl. 35x45x80 PA6.6 black Item No: 225SL06033
Delivery time on request
Spindle assembly for SL with electronic synchronisation control Item No: 232SL02024
Delivery time on request
Spindle guide cpl. Item No: 225SL62025K
low stock
Sprengring SW40 N0400 ST VR004580-2 Item No: 970006
in stock
Steigrohr / Querrohr kpl. galv. verzinkt für SL 2.40 Item No: 240SL05700
Delivery time on request
Steuerplatine SL ZPR 100 S mit Poti Item No: 940253 Replacement item: 940253-1
Stop BL. 5x40x40 S355MC -Galv.galvanized- Item No: 232SL08269
in stock
Toothed pulley NEW STL cpl. Item No: 232NSTL08013-ET
in stock
Toothed pulley NEW STL Rd. 100x12 ( galvanized ) -KANBAN- Item No: 232NSTL08013 Replacement item: 232NSTL08013-ET
Type plate 53x53 ALU 0,5 mm ELOXALSCHILD Item No: 970513
in stock
1 2 3 4 5 6
Door deflector for attachment to lifting carriage 1 piece Item No: 232HL05083
Drive-on plates / vehicle pedestal (1 set = 4 pieces) Raise the vehicle by 50 mm - ideal for lowered vehicles. Dimensions: 700x400x50 LxWxH ­ 8,5kg/panel Item No: 235HL05130SET
Energy set for integrated in the opposite column (230 V and compressed air coupling) Item No: 225SL05092
Hose holder to screw onto the column, 1 piece. Item No: 175RG25315
Impact wrench holder for screwing onto the column, 1 piece. Item No: 225SL08278
Operating hours counter with compressed air coupling on the operating side â€" excludes energy set on the operating side. Item No: 225SL05091MB
Safety mount for A-Class. Item No: 225SL08060
Safety mount for MB vehicles with car lift mount “in the sillâ€. Item No: 232SEL28235
Screw tray for mm-version galvanized, set = 2 pcs. Item No: 232SL08376S
Screw tray galvanized, set = 2 pieces . Item No: 225SL08276S
Second operation integrated in the counter column (cannot be retrofitted, can only be ordered ex works). Item No: 232SL03200GS
