Uni Lift 5000 NT

Hydraulic scissor lift

Uni Lift 5000 NT

Item No:UNI050.02500301D-1-5001-00
Uni Lift 5000 NT

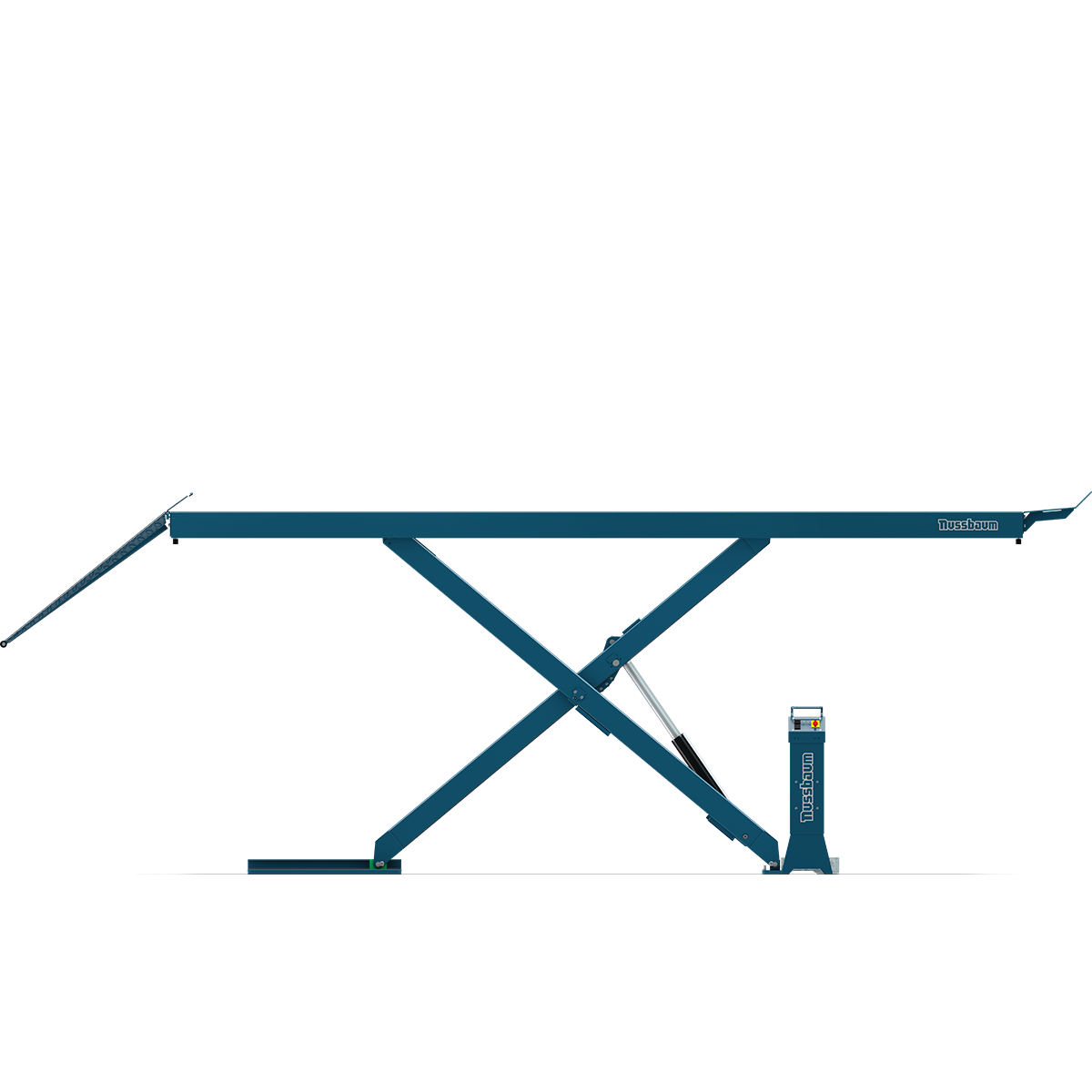

Scissor lift Uni Lift 5000 NT RAL5001 blue side

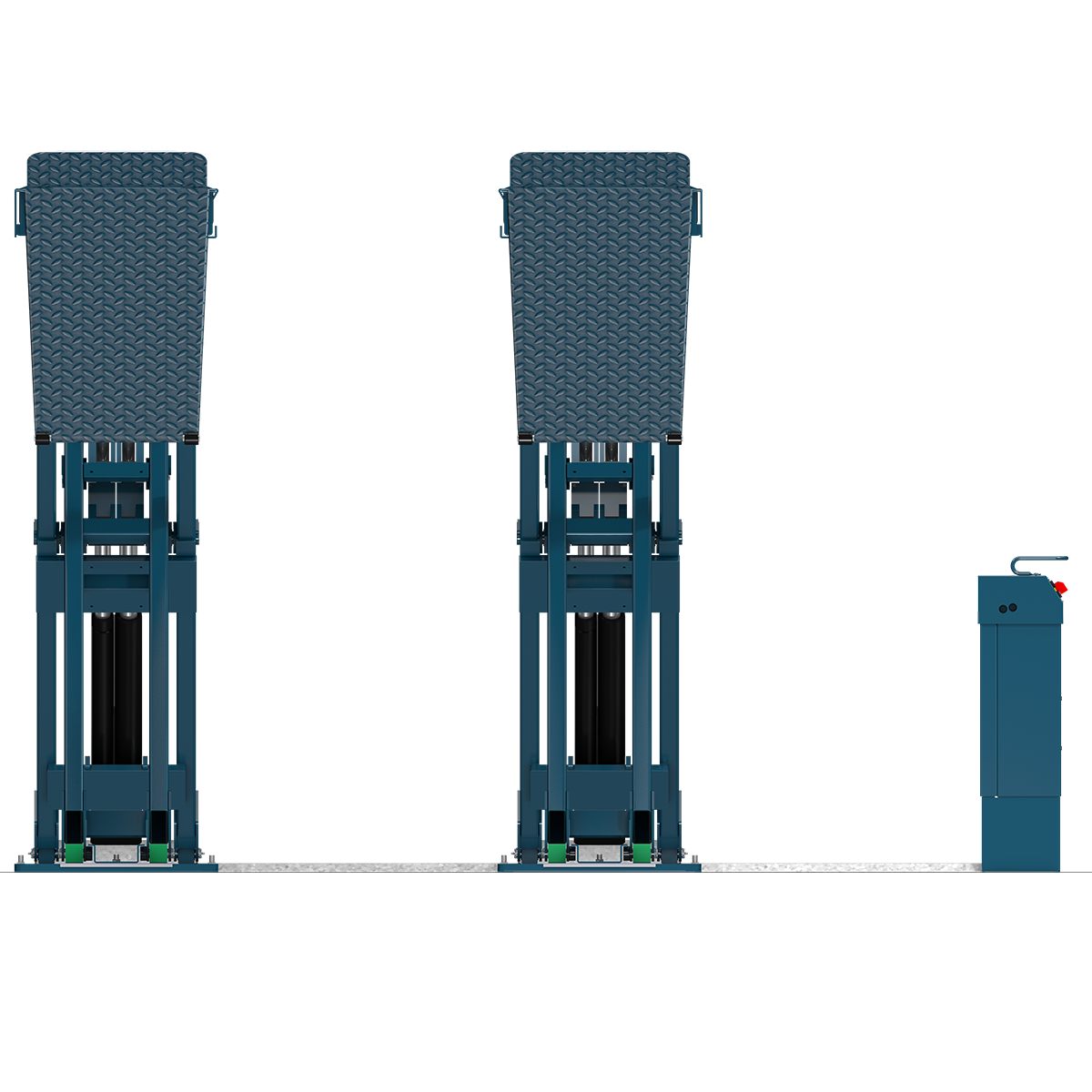

Scissor lift Uni Lift 5000 NT RAL5001 blue front
Customize Compare
Brief description
Item No: UNI050.02500301D-1-5001-00
Lifting capacity: 5500 kg
Type Scissor lift
Color Blue
Händler in Ihrer Nähe 20 Nicht Ihre Postleitzahl? hier eingeben

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

Uni Lift 5000 NT

The hydraulic scissor lift Uni Lift 5000 NT with a lifting capacity of 5500 kg is the perfect lift for check-in inspection, diagnosis, repairs and tyre service in the car workshop. With the fast lifting and lowering times, their small space requirement thanks to the low rails and the short ramps, their comfortable Lifting height of 1920 mm, the flexible installation width and the variable distance between the operating unit and the lifting platform, the Uni Lift 5000 NT the perfect companion for every car repair shop that needs a lift that meets all requirements. Nussbaum's patented NT technology controls perfect synchronisation of the four cylinders of the NT system, which are driven in two independent, redundant hydraulic circuits by a powerful and low-noise suboil motor.

The Uni Lift 5000 NT can easily be retrofitted with the axle lift JAX 2000, JAX 2600 or JAX 3200 and thus adapts to the development of your workshop for a long time to come.

  • Lifting time: 35 Seconds / lowering time29 Seconds
  • Capacity: 5500 kg
  • Lifting height of 1920 mm
  • Space-saving: Low rails and short drive-on ramps
  • Flexible installation width, Distance between control unit and lift can be varied as required
  • Retrofittable with axle lifts
  • Two redundant hydraulic circuits with NT technology
  • 360° access
  • Can also be installed flush with the floor: Uni Lift NT
  • Developed and manufactured in Germany

All Nussbaum hydraulic scissor lifts are equipped with two redundant hydraulic circuits as standard: Nussbaum-s patented hydraulic technology NT. The control unit of the Uni Lift 5000 NT is equipped with a main switch and protected pushbuttons and can be positioned at various distances from the lift. The Uni Lift 5000 NT has no fixed connections between the platforms and can therefore be installed in different installation widths as required. Would you like to install your scissor lift flush with the floor? Click here to go to the inground version: Uni Lift NT

The low power consumption and low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The scissors and platforms are welded in Nussbaum's own state-of-the-art welding machines, shot-peened and then powder-coated Blue Your lift is thus protected against dirt and weather in the long term.

Details
Capacity 5500 kg
Wheel free lift
RAL color RAL 5001 - Blue
Coating Powder coating
Installation type above ground
Platform length min 5000 mm
Lifting time 35 sec
Lowering time 29 sec
Lifting height max. 1920 mm
Platform height 195 mm
Platform width 635 mm
Drive on height 195 mm
Total width min 2020 - 2320 mm
Recommended installation width 2220 mm
Installation width min. 2020 - 2320 mm
Platform distence min 750 - 1050 mm
Total platform width 2220 mm
Motor power per column 3 KW
Pick up device
Synchronization system
CE-Stop
Lighting (type)
Lighting (number)
Oil quantity (approx.) 13 liter
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Noise level (<=) 75 db
Foundation length 5150 mm
Foundation width 2300 mm
Concrete thickness 180 mm
Concrete quality C20/25
Customs tariff number 84254100

Datasheets

Data sheet 68 KB

Foundation plans

Strip foundation plan with empty pipe 65 KB
Square foundation plan 67 KB
Strip foundation plan 67 KB
Square foundation plan with empty pipe 50 KB
U foundation plan 46 KB
U foundation plan 58 KB

Dowel drilling patterns

Dowel hole pattern 64 KB

Inspection books

UNI LIFT 5000 NT PLUS DE 12 MB
UNI LIFT 5000 NT PLUS EN 12 MB
UNI LIFT 5000 NT PLUS FR 12 MB
Ersatzteilliste UNI LIFT 5000 NT 04/08 837 KB

Leaflets

Uni Lift NT Broschüre - Deutsch 2 MB
Uni Lift NT Brochure - English 2 MB
Uni Lift NT Panfleto - Español 2 MB
Uni Lift NT Brochure - Francais 2 MB
Uni Lift NT Prospetto - Italiano 2 MB
1
Packaging
Product Dimensions 5250mm x 770mm x 500mm
Total weight 1100kg
Stackable 2 times
2
Packaging
Product Dimensions 5250mm x 770mm x 500mm
Total weight 1100kg
Stackable 2 times
3
Packaging
Product Dimensions 1350mm x 500mm x 500mm
Total weight 100kg
Stackable nicht Stapelbar
