Hydraulic double scissor lift with double platform extension


Item No:JLB035.0021200D-7016
NB JL 3500XT 035jl00092 p2 NB g eing
NB JL 3500XT 035jl00092 p NB g
NB JL 3500XT 035jl00092 s NB g
NB JL 3500XT 035jl00092 f NB g
Customize Compare
Brief description
Item No: JLB035.0021200D-7016
Lifting capacity: 3500 kg
Type Doublescissor lifts
Color Grey
Händler in Ihrer Nähe 20 Nicht Ihre Postleitzahl? hier eingeben

Wulf Werkstattausrüstung GmbH

Tiedenkamp 12
DE - 24558 Henstedt-Ulzburg
[email protected]


The hydraulic double scissor lift JUMBO LIFT 3500 HF X-Tend with a load capacity of 3500 kg is the perfect all-round lifting platform for the automotive workshop where speed, flexibility and reliability are in demand. With its small space requirement, its high lifting height of 2005 mm, and its two times adjustable platforms and flat design, it is the lift that no professional garage should be without. Whether for tire changes, oil changes, working on the engine, check-in inspection, for low-lying sports cars, SUVs or vehicles such as the new long BMW 7 Series, the JUMBO LIFT 3500 HF X-Tend is ready to lift and lifted at lightning speed. The lifting platforms can be extended twice: In addition to the foldable extensions available with the "classic" Jumbo Lift NT and the flexible installation width, the new Jumbo Lift HF X-Tend has extendable extensions. The length of the mounting platforms can be adjusted from [AttributeShortCode,attribute=Aufnahmelänge min,attributeid=47] mm. The ramps can be locked and unlocked as usual in one simple movement. The JUMBO LIFT 3500 HF X-Tend is developed and manufactured by Nussbaum at its main plant in Kehl-Bodersweier in Baden-Württemberg.

  • Lifting time and lowering time: 35 seconds
  • Capacity: 3500 kg
  • Effective lifting height from 2005 mm
  • Extremely flat construction: Drive-on height of only 103 mm
  • Twice length-adjustable platform- Variable length of [AttributeShortCode,attribute=Aufnahmelänge min,attributeid=47] mm
  • Flexible mounting: Adjustable width, no compressed air access required
  • 360° access
  • Can also be installed flush with the floor: Jumbo Lift 3500 HF X-tend inground
  • Three times guaranteed quality: Power unit, hydraulic cylinder and the complete lifting platform are tested before dispatch.
  • Developed and manufactured in Germany
  • Recommended by BMW (for similar lifts Jumbo Lift 3200 NT, Jumbo Lift 4000 NT)

All hydraulic Jumbo lifts are equipped with two redundant hydraulic circuits as standard: Nussbaum's patented NT hydraulic technology is complemented by HyperFlow® technology, introduced in 2016 and unique worldwide. HyperFlow® automatically balances the pressure of the hydraulic circuits at each full stroke. There is no need for manual compensation or maintenance.

With the "Nussbaum Commander" we are the only manufacturer of lifting platforms in the world that can offer you a precise, variable lowering speed. The Nussbaum Commander enables sensitive lowering and allows the user to change and correct positions in no time at all, all with maximum safety. The JUMBO LIFT 3500 HF X-Tend is not only safe, but also exceptionally flexible and can be installed in different installation widths as required. You want to JUMBO LIFT 3500 HF X-Tend install flush with the floor? Click here to go to the inground version: Jumbo Lift 3500 HF X-tend inground

TheJUMBO LIFT 3500 HF X-Tend requires no compressed air at all. The four hydraulic cylinders require very little energy. The low power consumption, the continuous automatic compensation of the hydraulic circuits by the HyperFlow® system and the low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The operating lever "Nussbaum Commander" is attached to the power unit integrated in a metal housing. The control unit is connected to the lift only by the hydraulic hoses and can be positioned freely around the lift. The hydraulic hoses can be mounted on the workshop floor or in a protective metal housing on the floor as required. The double scissors are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently grau powder-coated. Your lifting platform is protected against dirt and weather for a long time.

Capacity 3500 kg
RAL color RAL 7016 - Grey
Coating Powder coating
Installation type above ground
Platform length min 1550 - 2320 mm
Lifting/lowering time 35 sec
Lifting height max. 2005 mm
Platform height 103 mm
Platform width 610 mm
Drive on height 103 mm
Total width min 2020 - 2120 mm
Recommended installation width 2020 mm
Installation width min. 2020 - 2120 mm
Platform distence min 800 - 900 mm
Total platform width 2020 mm
Synchronization system
CE-Stop 1
Oil quantity (approx.) 14 liter
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Engine power 3 KW
Noise level (<=) 70 db
Foundation length 2100 mm
Foundation width 2060 mm
Concrete thickness 160 mm
Concrete quality C20/25
Customs tariff number 84254100


Data sheet with empty pipe 132 KB
Datenblatt mit Kabelkanal v2 183 KB

Foundation plans

Foundation plan with canister and empty pipe 348 KB
Foundation plan with canister and empty pipe 501 KB
Foundation plan without canister with empty pipes 372 KB

Force Diagrams

Force diagram 28 KB

Dowel drilling patterns

Dowel hole pattern 50 KB


Pickup point matrix 532 KB

Inspection books

JUMBO LIFT 3500 NT + X-tend DE EN FR ES IT 11 MB


Jumbo HF X-tend Factsheet - English/Deutsch 2.6 MB
Product Dimensions 1750mm x 770mm x 770mm
Total weight 950kg
Stackable 2 times
Listenansicht Explosionsansicht

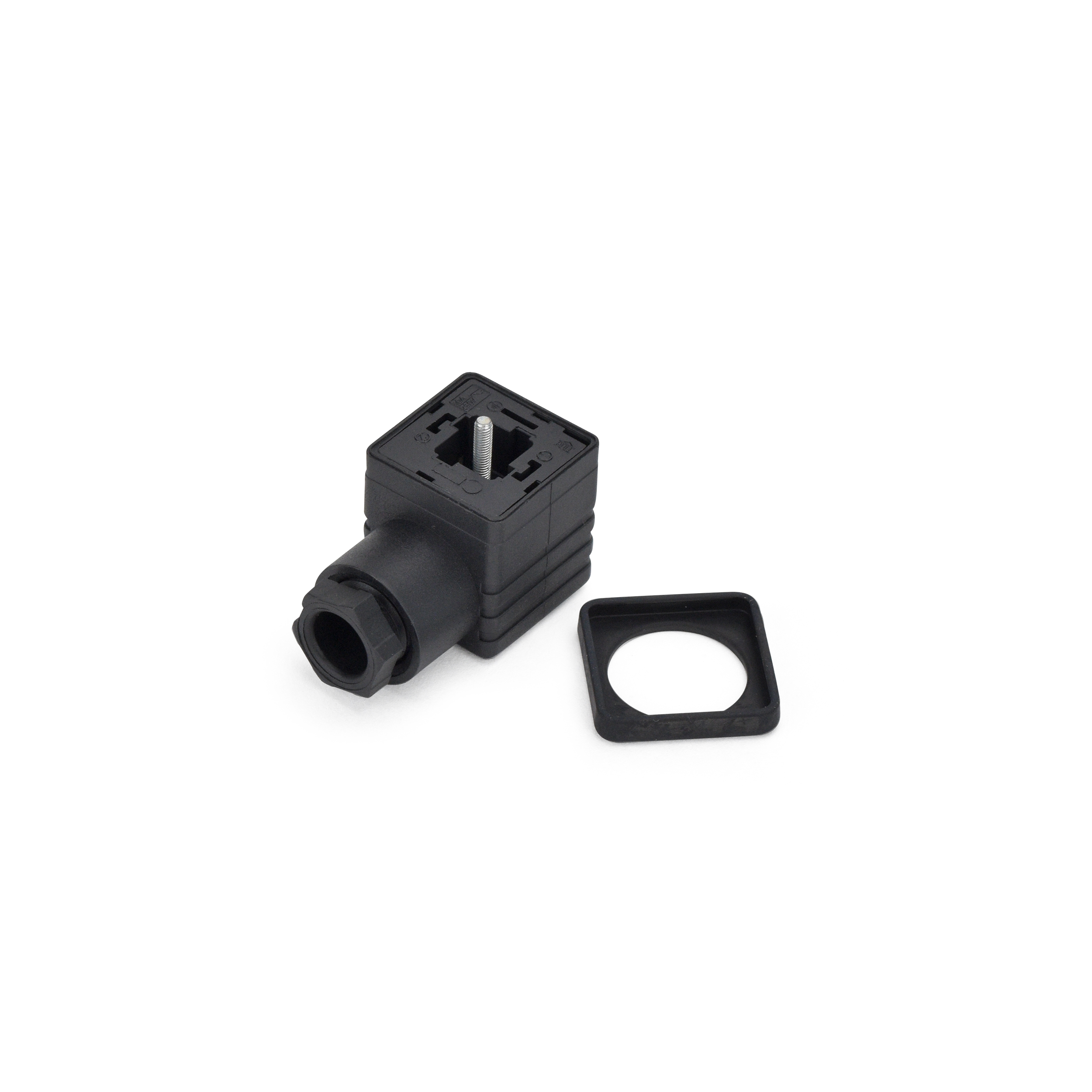

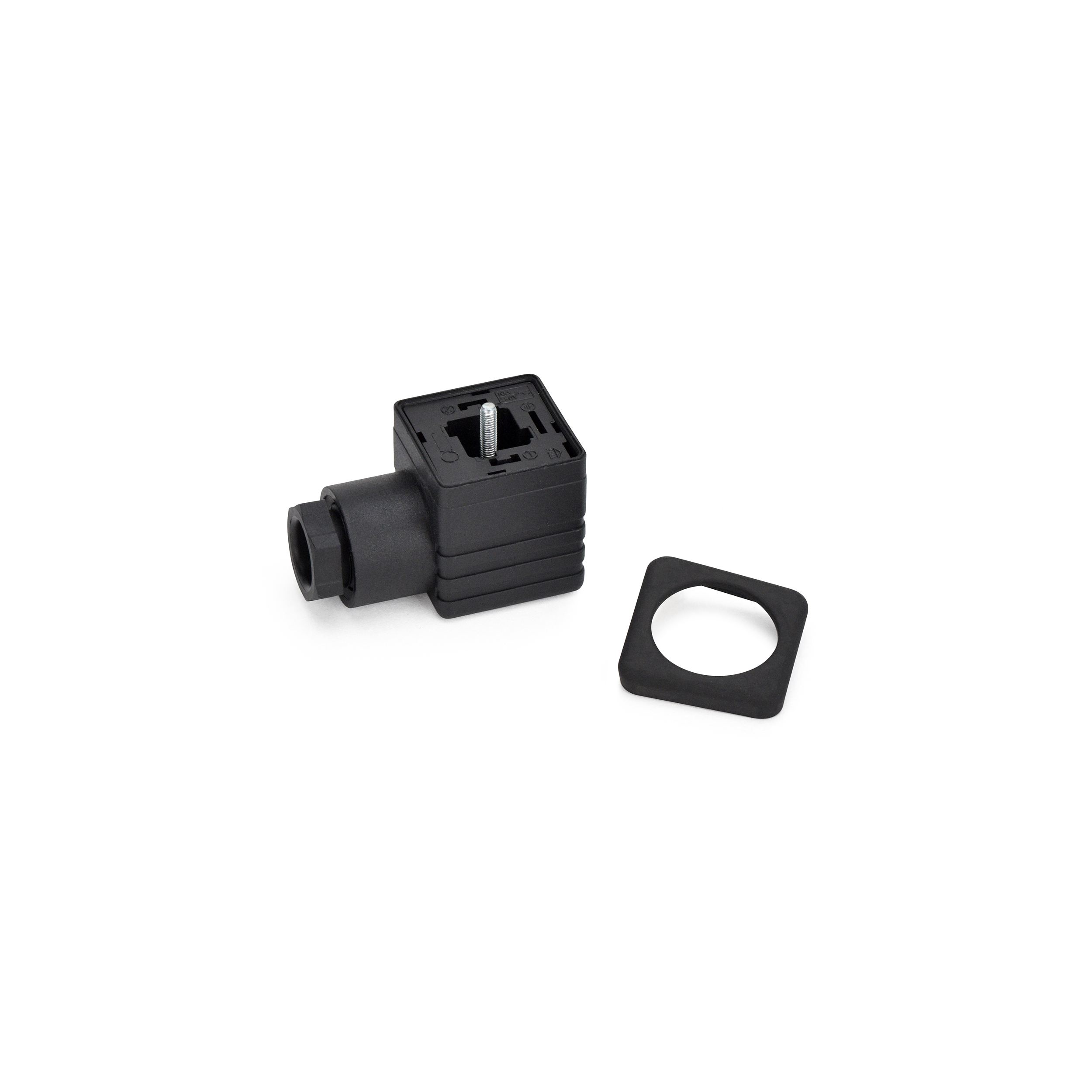

Cable plug KA132000B9 black Item No: 118620
in stock

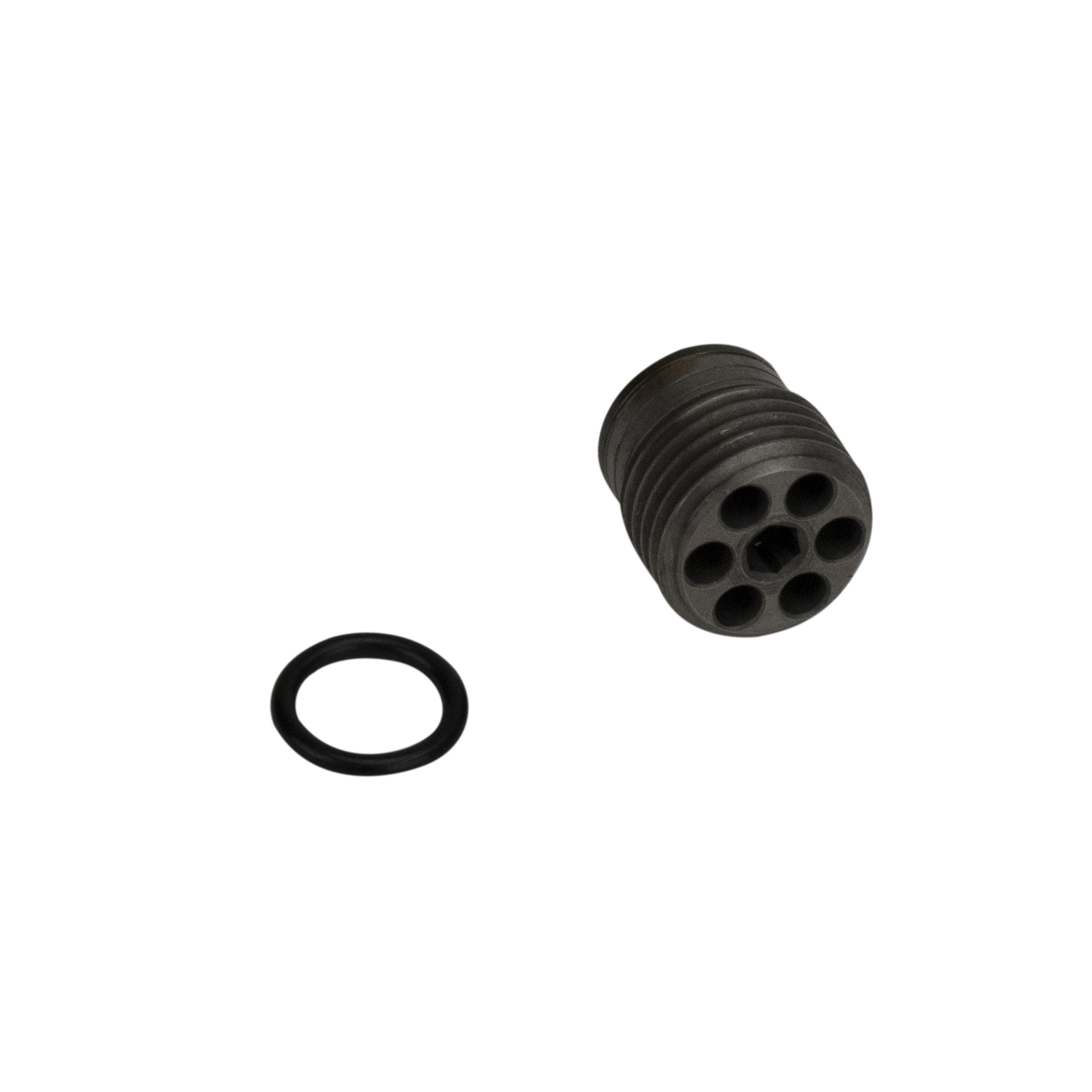

Check valve RVE06 S 2 bar Installation: G1/4 Item No: 983700
in stock
Circuit breaker A 105/3.0200-EV-SO Item No: 990403
in stock
Command cylinder overflow cpl. Item No: 040JL02600
low stock
Contactor DC24V / 5,7KW / 400V [27] Item No: 990842
in stock
Cylinder bolt bottom Rd. 28x197 (Kanban) Item No: 030JL62021
in stock
External bolt scissors Rd. 30x85 42CrMo4V verg. Item No: 030JL26165
low stock
Follow cylinder overflow cpl. Item No: 040JL02700
Delivery time on request
gear pump 1BK7S4,2 Q 2,7 cm³ Item No: 980340
low stock
Grease nipple (9AM6X1) Steel DIN 71412 M 6x1 Item No: 970020
in stock
Locating bearing pin SK. SW22x63 9SMn28K ( galvanized ) Item No: 030JL05012
low stock
Locking Welded part Item No: 030JL66093
low stock
Normally closed contact, front / M22-K01 Item No: 990181
in stock
Normally open contact, front / M22-K10 Item No: 990133
in stock

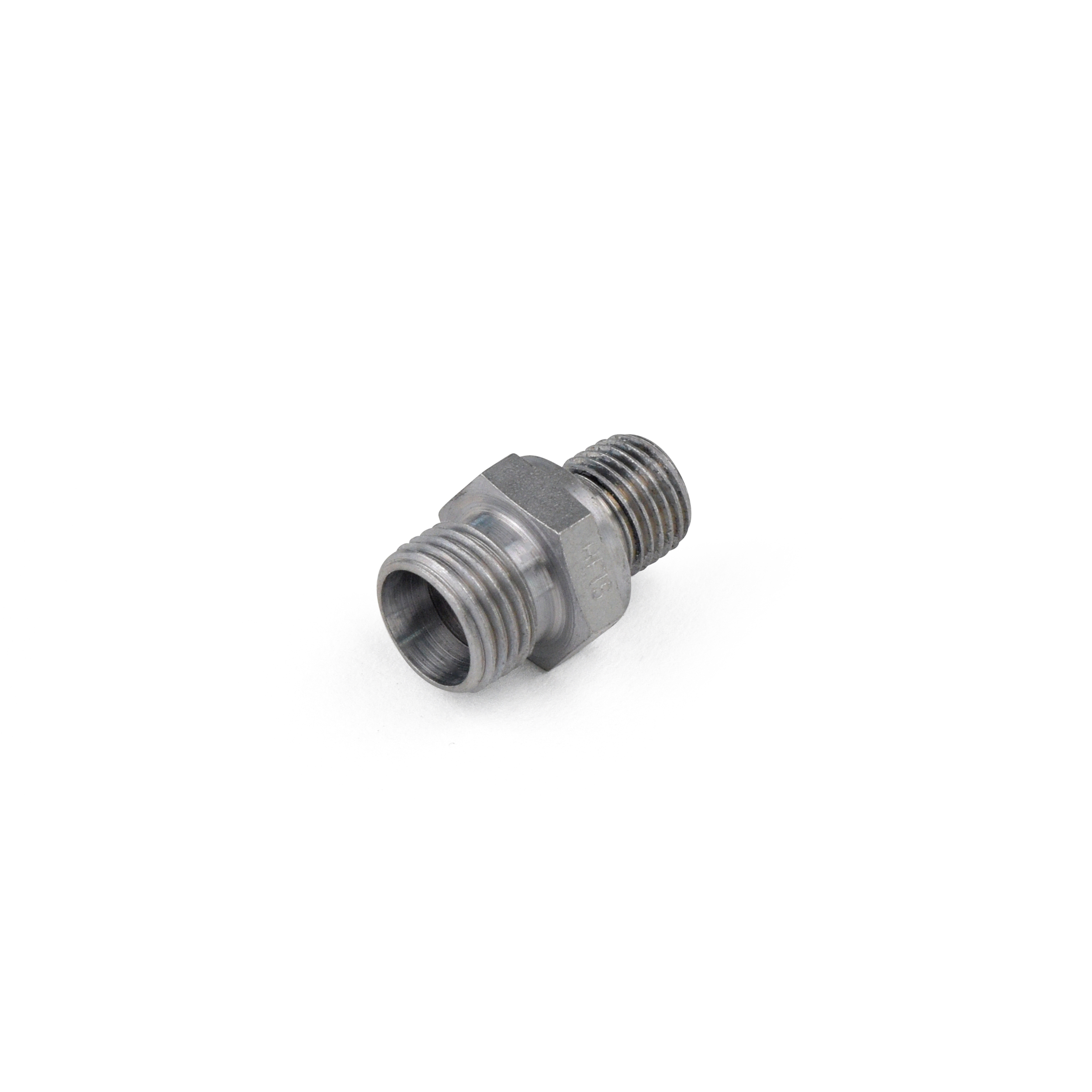

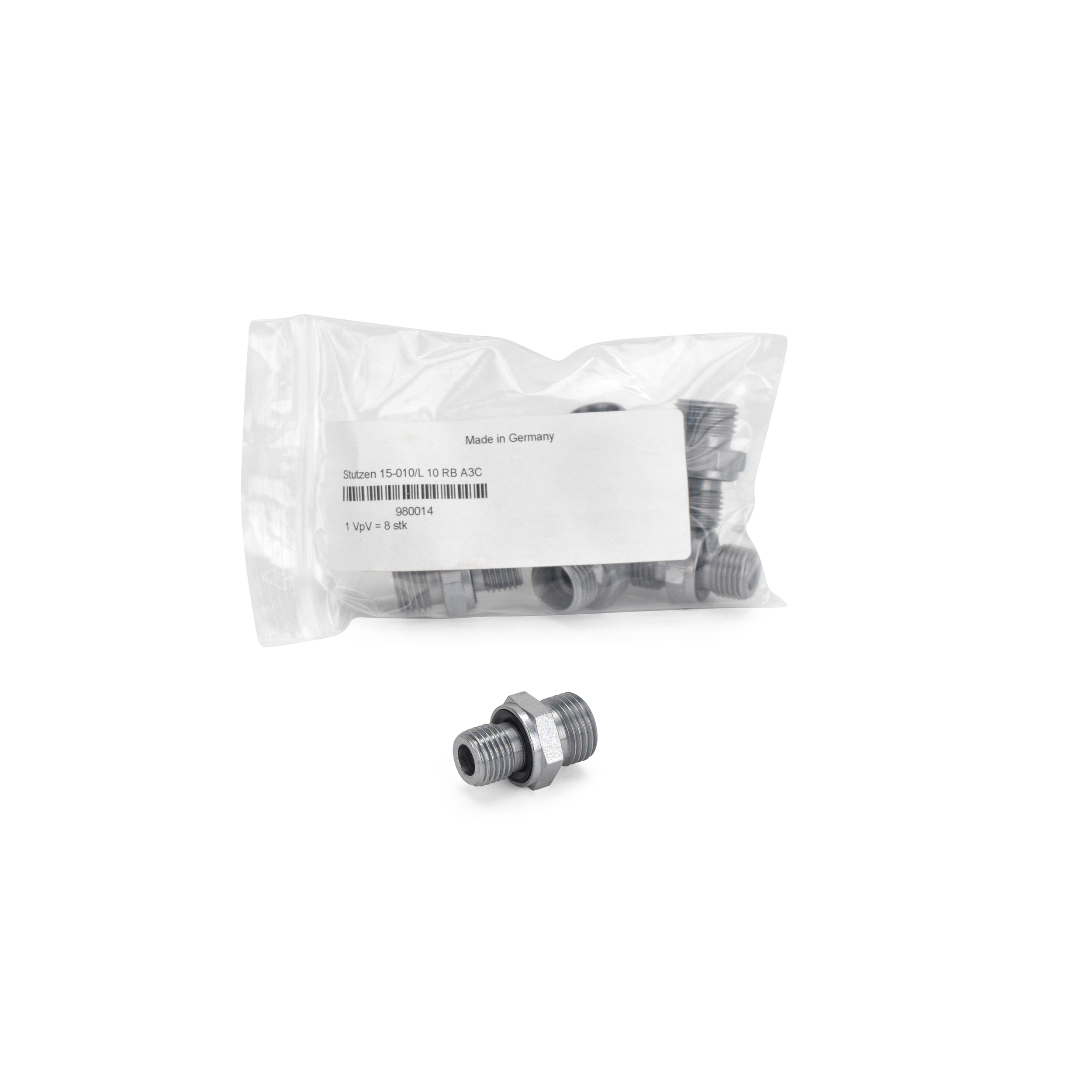

Nozzle 15-010/L 10 RB A3C Item No: 980014
Delivery time on request
Push button 1115.0101 Item No: 990322
in stock
Sleeve Rd. 32x29 C45+C ( galvanized ) Item No: 030JL06030
Delivery time on request
Sliding block axle Rd. 20X570 C45+C ( galvanized ) Item No: 030JL06112
Delivery time on request

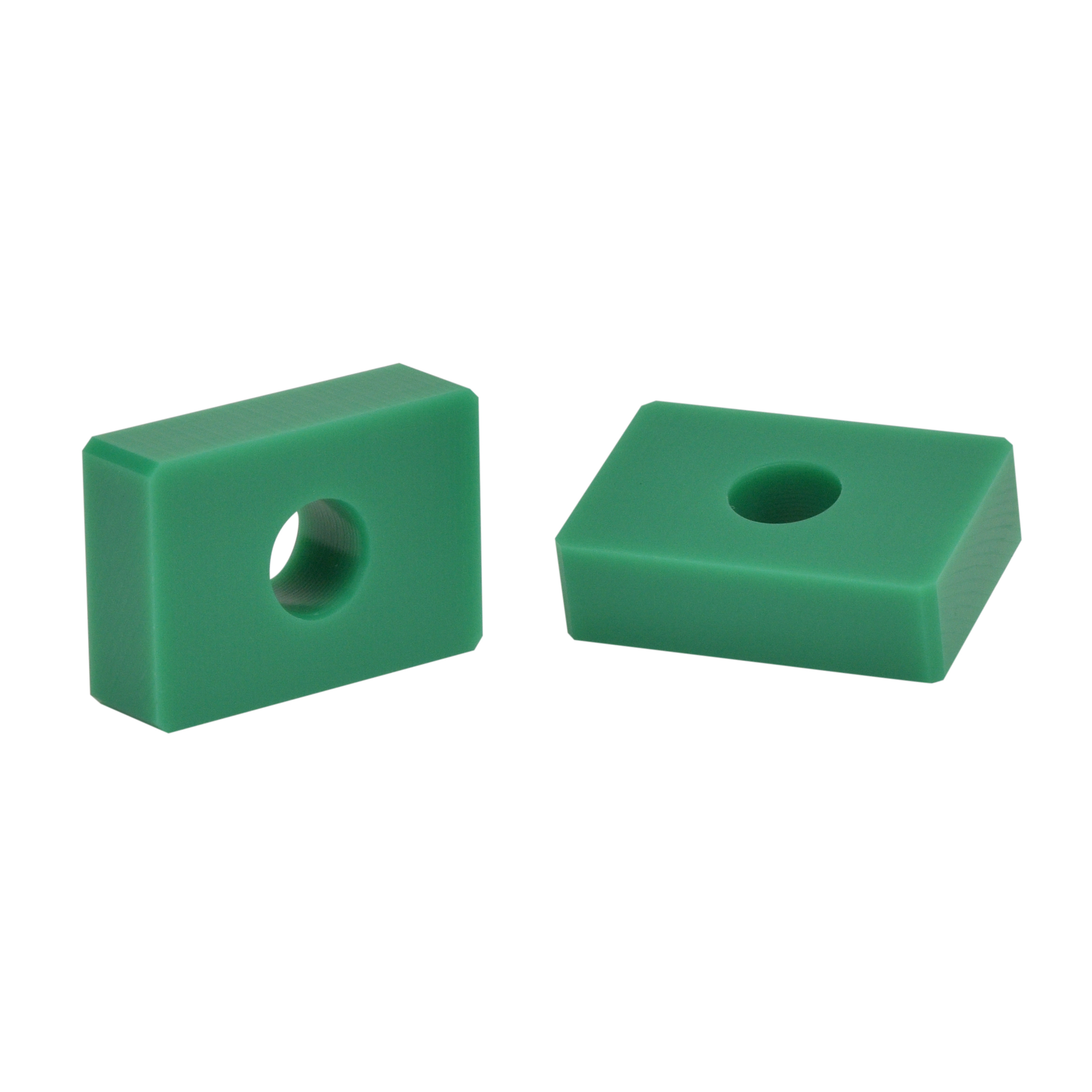

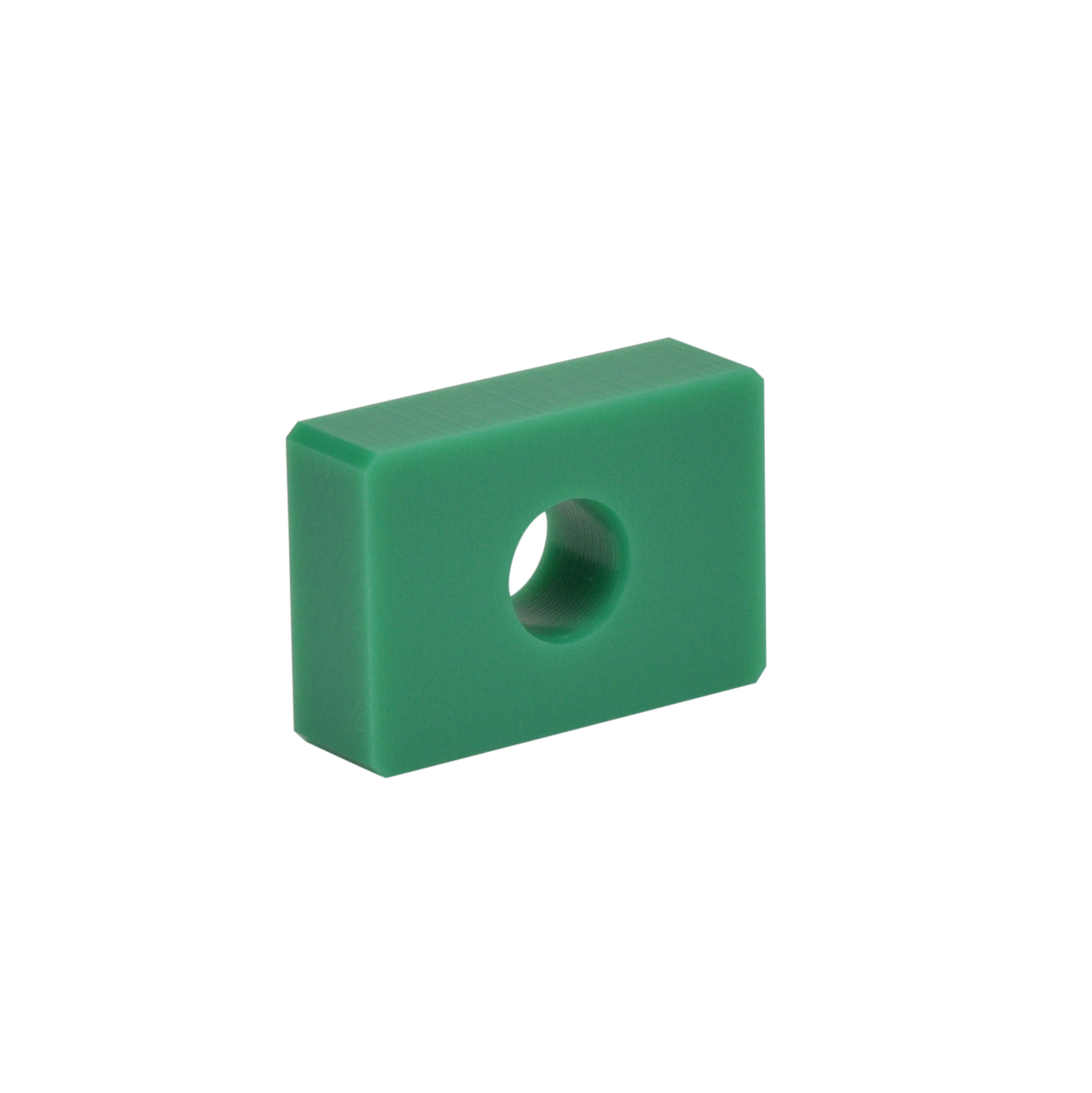

Sliding block top Fl. 70x48x20 Murtfeld green Item No: 030JL26168
low stock
Submersible motor UO7K2-371 3,00 kW 3 Ph. 230/400V 50Hz 2pol. Item No: 992658
in stock
Universal control for universal aggr. Sprinter 400V 3Phases Item No: 000STA03000TG Replacement item: 000STA03600-SPB
