SMART LIFT 2.50 SL DG

Electromechanical 2 post lifts with spindle and double jointed arms

SMART LIFT 2.50 SL DG

Item No:SL250.0001130D-7016
SMART LIFT 2.50 SL DG

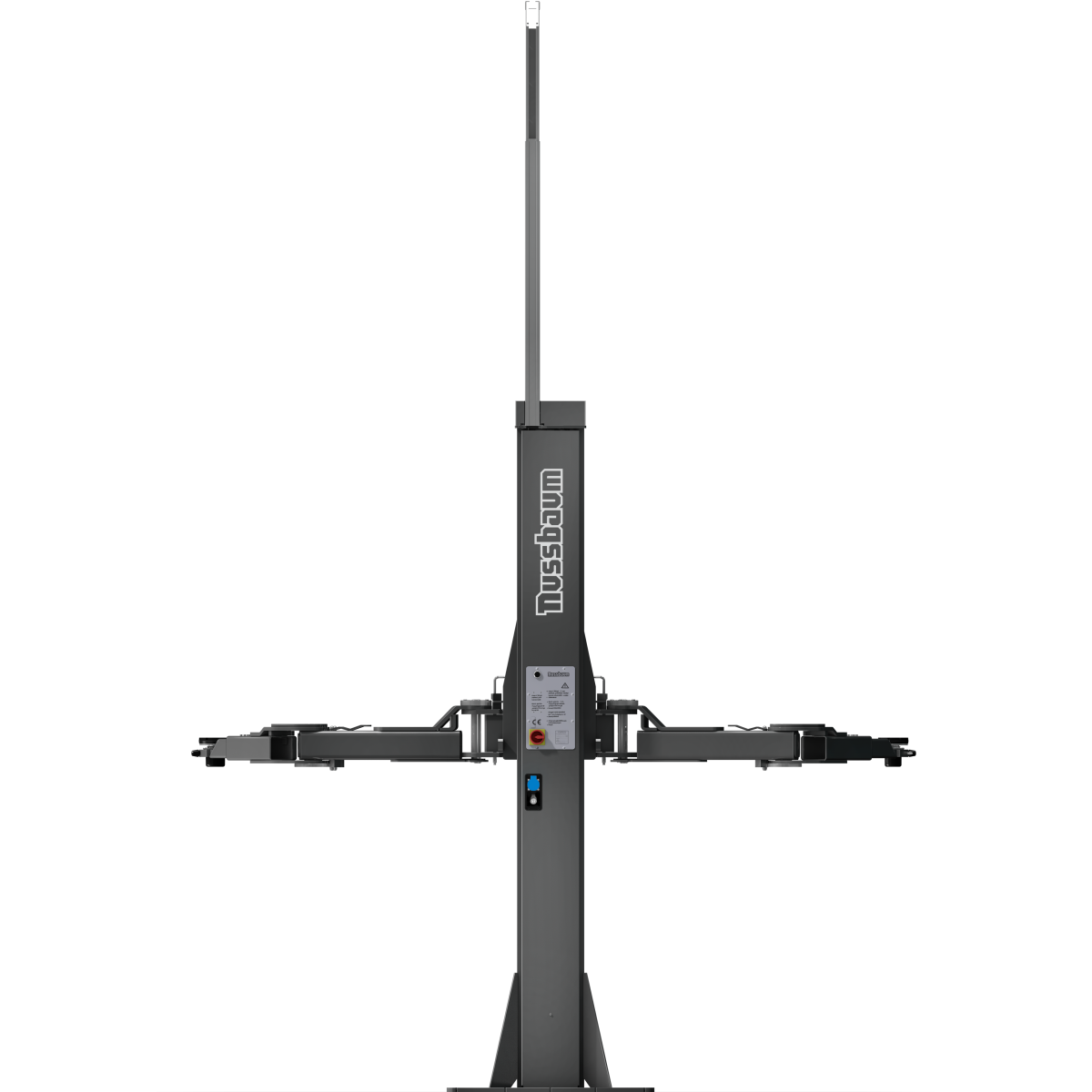

2 post lift Smart Lift 2 50 SL DG s2 RAL7016 grey

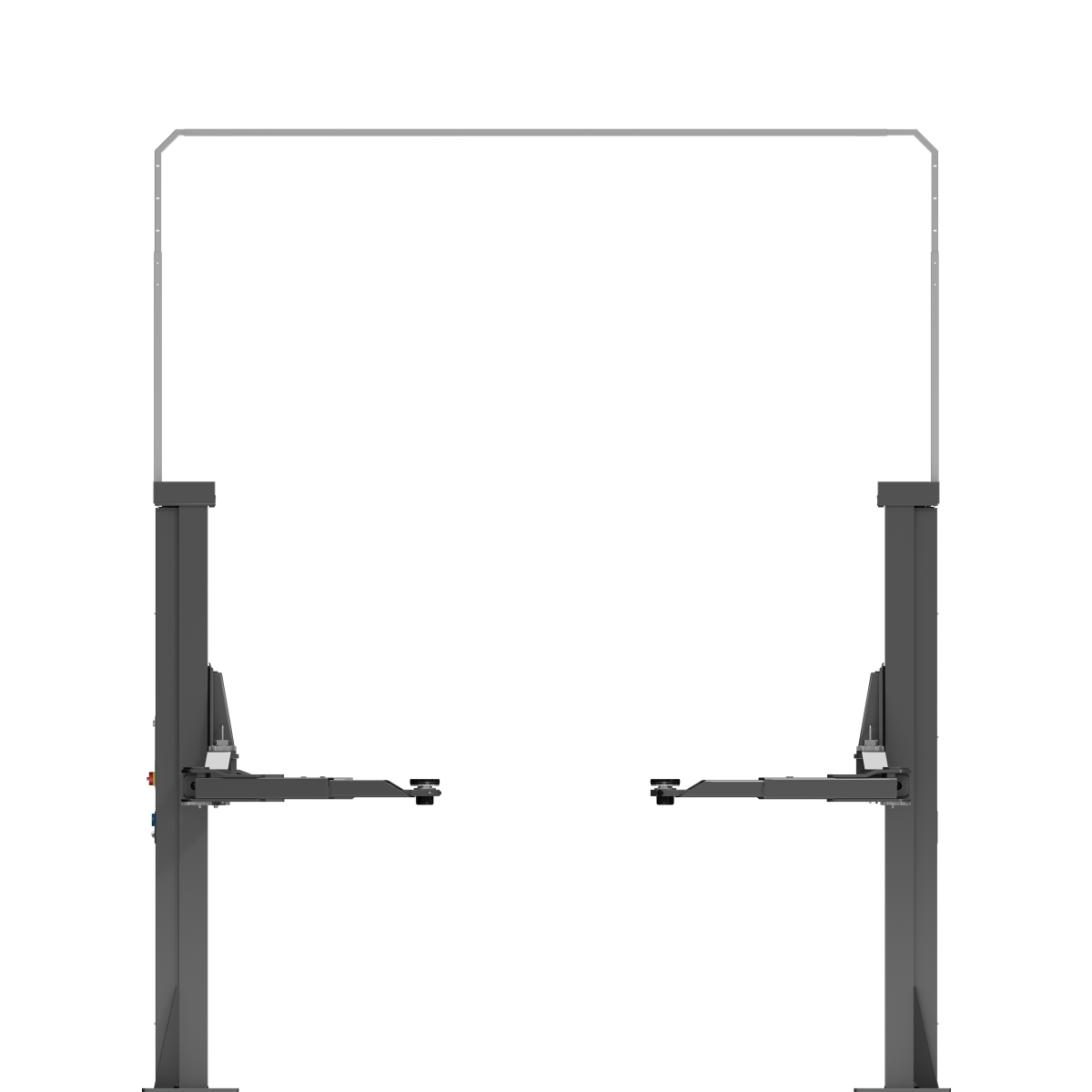

2 post lift Smart Lift 2 50 SL DG f RAL7016 grey

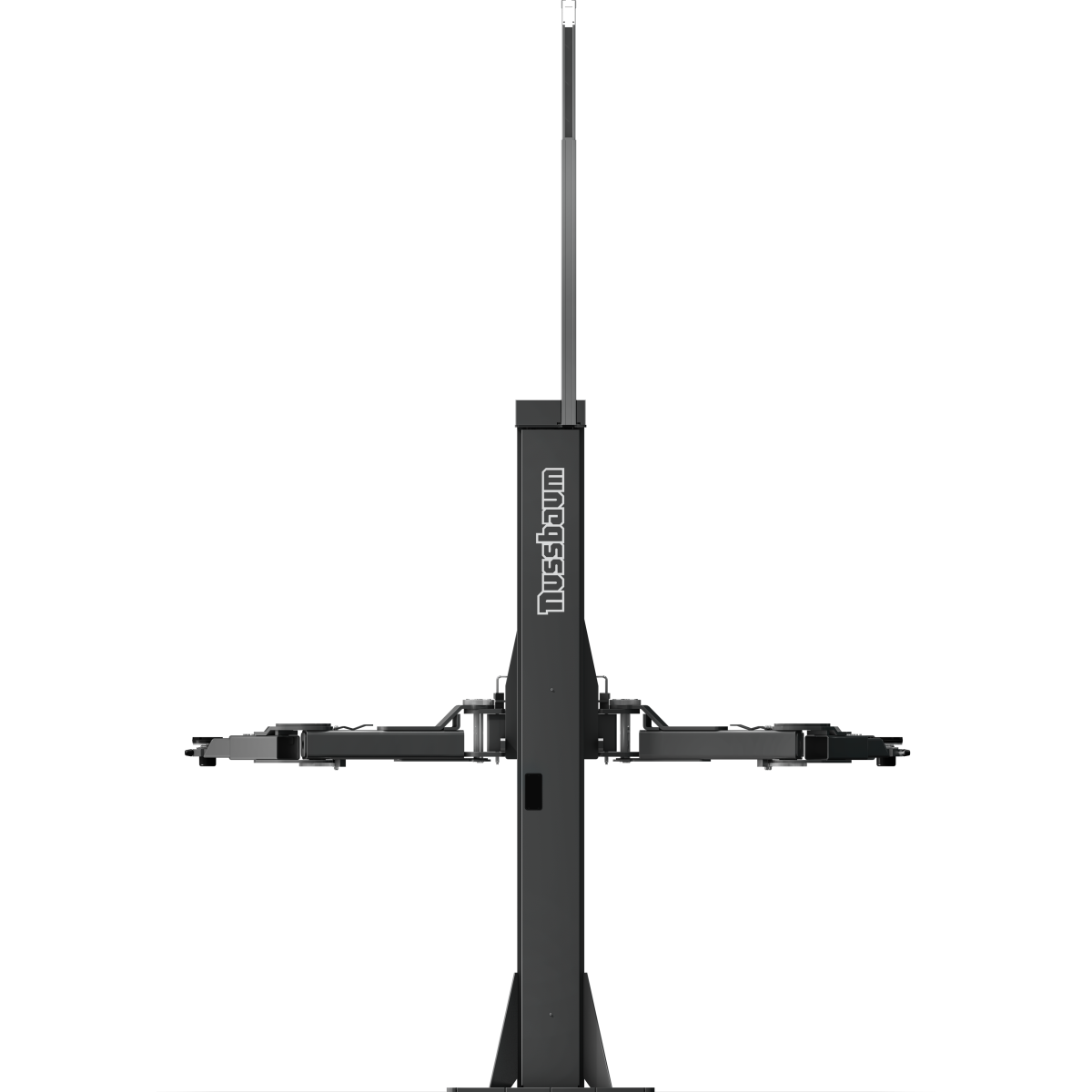

2 post lift Smart Lift 2 50 SL DG s1 RAL7016 grey
Customize Compare
Brief description
Matchcode: SL250.0001130D-7016
Item No: 0008737
Lifting capacity: 5000 kg
Type 2 post lifts
Color grey
Händler in Ihrer Nähe 43 Nicht Ihre Postleitzahl? hier eingeben

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

SMART LIFT 2.50 SL DG

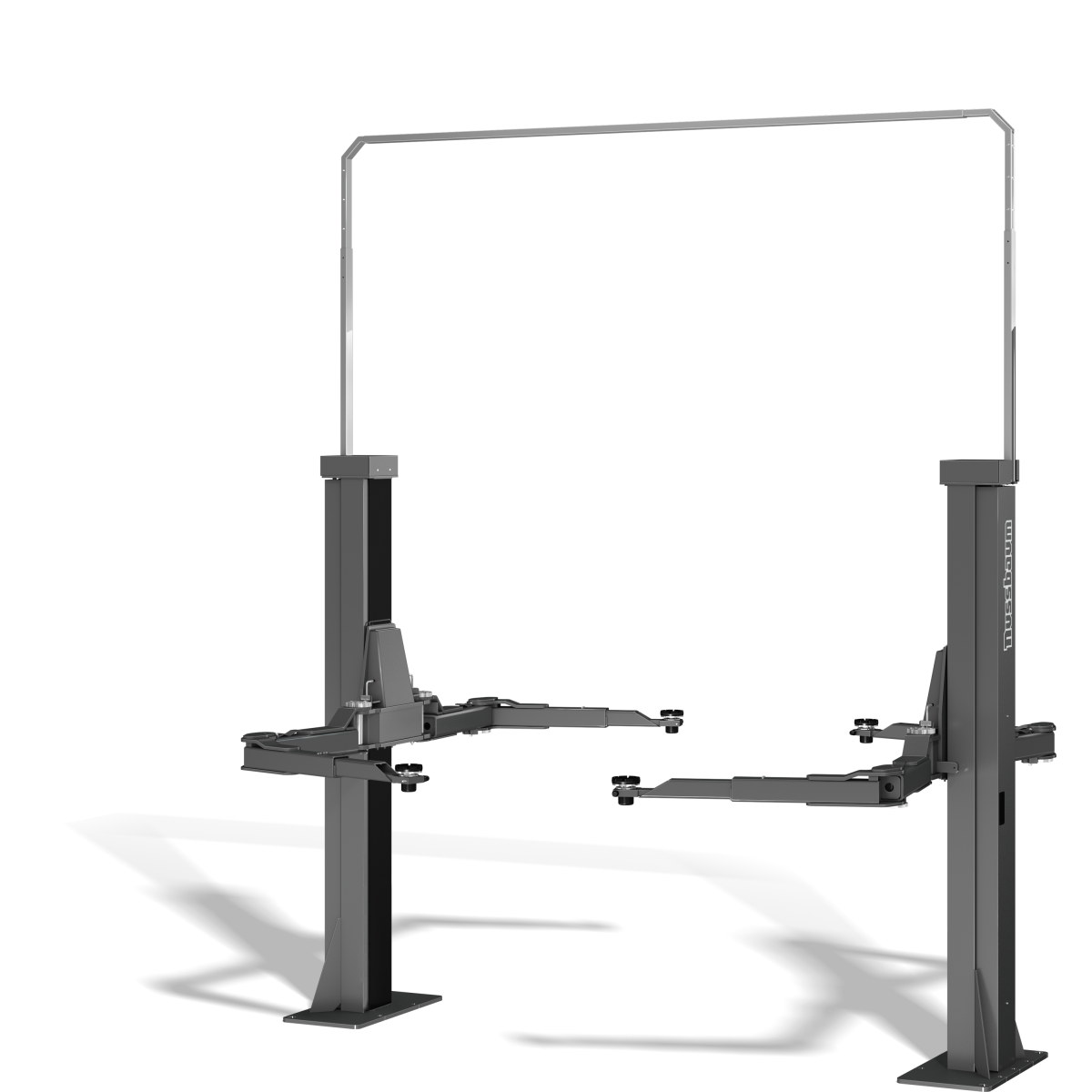

The electromechanical 2 post lifts SMART LIFT 2.50 SL DG with spindle, a load capacity of 5000 kg and asymmetrical 2-times telescopic arms is the ideal lift for the price-conscious and demanding car workshop. With its low minimum height and flexible installation width, it fits into any car workshop.
With the symmetrical telescopic double jointed arms, you can carry a wide range of vehicle sizes and weight classes from small cars such as SMART up to overlong vans such as MERCEDES-BENZ Sprinter and VW Crafter with long wheelbase lift.

The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns.

  • Lifting time: 50 seconds and lowering time: 30 seconds
  • Load capacity: 5000 kg
  • The easy-to-operate, roller-mounted double-jointed support arms reach all mounting points specified by the vehicle manufacturers
  • Ideal for low ceiling heights with minimum height of only 2900 mm
  • Compressed air connection and 220 V socket as standard integrated into the column
  • High quality: each unit is individually tested under load before shipment
  • Developed and manufactured in Germany
  • CE-Stop included

The Nussbaum SMART LIFT series has proven itself for over 20 years. Today, more than 100,000 SMART LIFT lifts are available worldwide to assist car mechanics in their everyday work.

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron ®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently grau powder-coated. Your lift is thus protected against dirt and weather in the long term.

Scope of delivery

Hebebühne mit Kabelbrücke (verstellbar), Asymmetrische, teleskopierbare Tragarme, 4 im Tragarm fixierte Drehteller, CE-Stop, Energie-Set (Option): E-Set (230 V/ Druckluft) in der Bediensäule

Installation requirements

Fundamentstärke 200 mm C20/25 normale Bewehrung, 12 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set (Option), Entladung

Details
Capacity 5000 kg
RAL colour RAL 7016
Pick up pad height min 120 - 195 mm
Min length front arm 0 - 1825 mm
Min length rear arm 0 - 1825 mm
Lifting time 50 sec.
Lowering time 30 sec.
Lifting height 2013 mm
Total height min 2900 mm
Total width min 3750 mm
Clear distance between columns min 2850 - 3126 mm
CE-Stop yes
E-Set yes
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection 16 Amp. slow-blow
engine power 2x1,5 KW

Datasheets

Data sheet SL 250 DG 447 KB

Foundation plans

Foundation plan SL 107 KB
7157 NB 93 KB

Force Diagrams

ProductDataTabs
Force diagram SL 250 156 KB

Dowel drilling patterns

Dowel hole pattern SL 250 57 KB

Liftingpatterns

Pickup point matrix SL 250 DG 170 KB

Inspection books

OPI SMART LIFT 2 50SL V4 0 DE EN FR ES IT 112022 Web 31 MB

Leaflets

SMART LIFT Broschüre - Deutsch 2.6 MB
SMART LIFT Brochure - English 2.6 MB
SMART LIFT Panfleto - Español 2.6 MB
SMART LIFT Brochure - Français 2.6 MB
SMART LIFT Prospetto - Italiano 2.6 MB
1
Packaging
Product Dimensions 3050mm x 760mm x 570mm
Total weight 730kg
Stackable 3 times
Adjustable top set 115-220 mm, set = 4 pieces. Matchcode: 235TTKAS08501 Item No: 0003470
Adjustable top set 231-330 mm, set = 4 pieces. Matchcode: 235TTKAS08809 Item No: 0003474
Attachment set for MB 100, adjustable 150-255 mm, set = 4 pieces. Matchcode: 235TTKAS08537 Item No: 0004231
Attachment set for Sprinter (NCV3) with fixing pin for front attachment points, adjustable 189-289 mm, set = 2 pieces. Matchcode: 235TTKAS08870 Item No: 0006882
Attachment set rigid, set = 4 pieces. Matchcode: 250HDL28063 Item No: 0003597
Aufsteckgarnitur für Sprinter (NCV3) mit Prisma für hintere Aufnahmepunkte, verstellbar 181-283 mm, Satz = 2 Stück. Matchcode: 235TTKAS28850 Item No: 0006881
