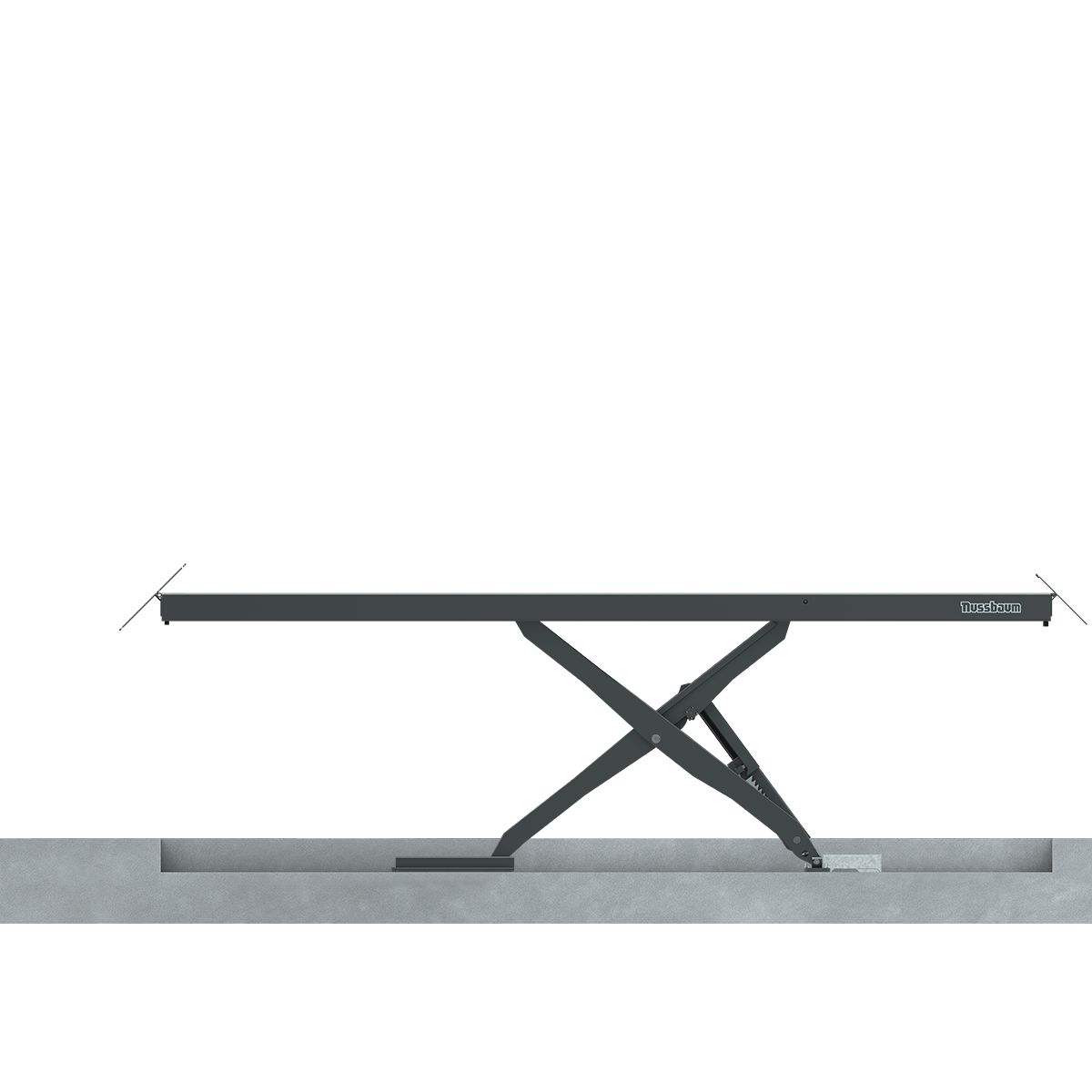

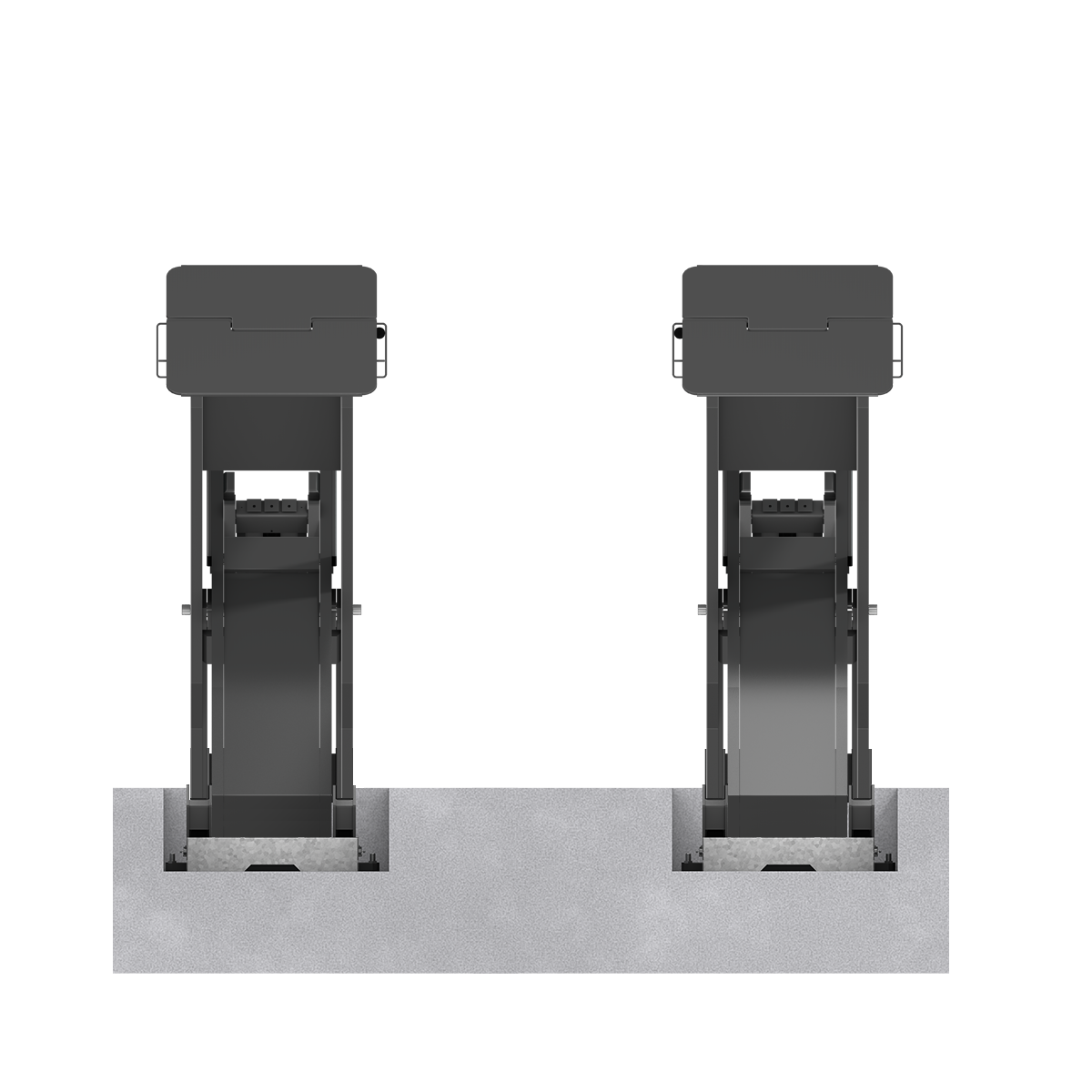

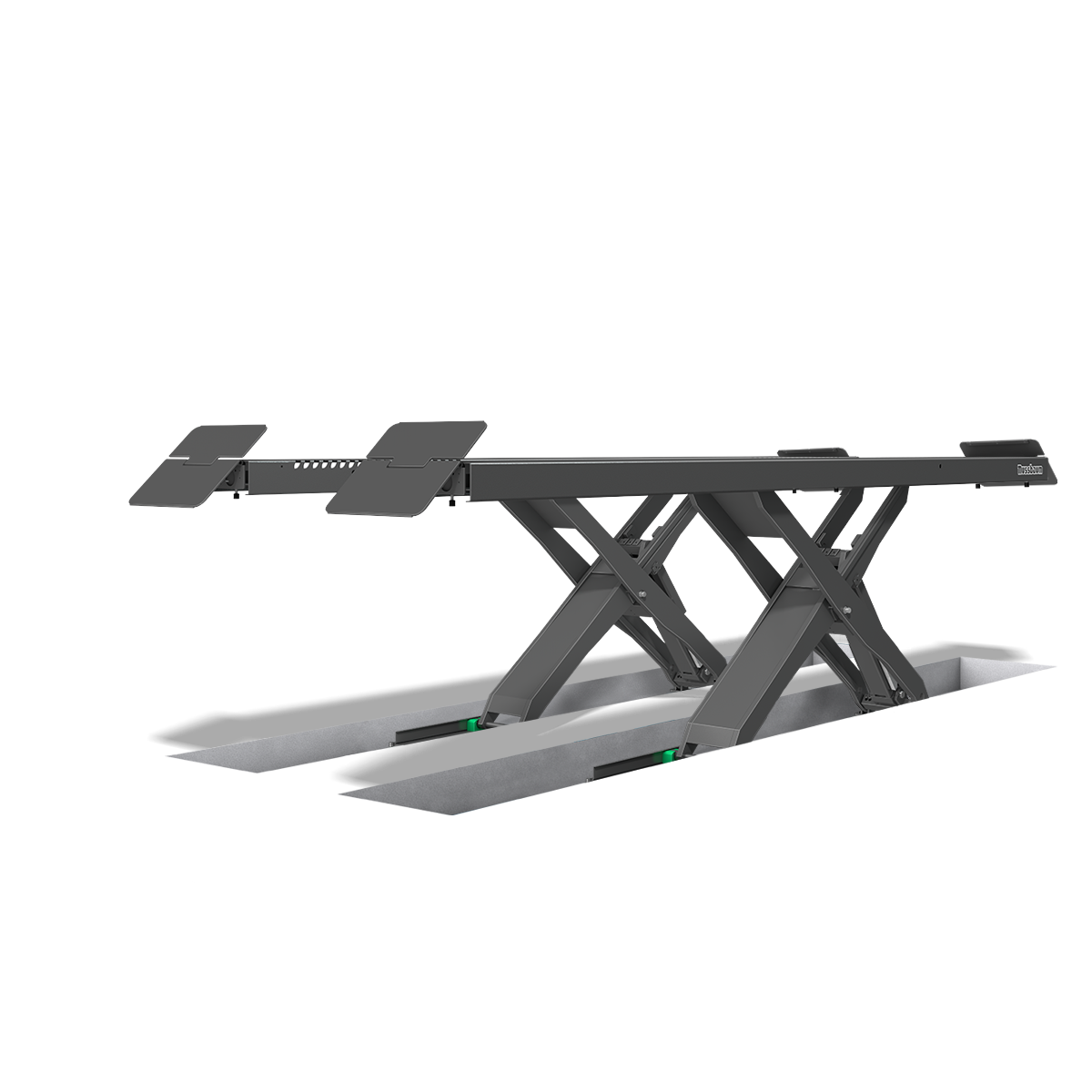

UNI LIFT 8000

The hydraulic scissor lifts UNI LIFT 8000 with a load capacity of 8000 kg is the best scissor lifts for passenger cars, SUVs and vans. The wide range of work that can be done with the UNI LIFT 8000 ranges from reception to underbody repairs and maintenance. The UNI LIFT 8000 raises to a comfortable maximum height of 1877 mm and is flexible in installation width. The mechanical safety lock attached to the scissors guarantees perfect stability during wheel alignment.

The UNI LIFT 8000 can easily be retrofitted with the JAX 2600, JAX 3200 or JAX 4000 jacks, adapting to the development of your workshop for a long time to come.

• Lifting time: 50 seconds
• Lowering time: 40 seconds
• Capacity: 8000 kg
• Lifting height of 1877 mm
• Mechanical safety lock guarantees perfect stability during wheel alignment
• Platforms up to 6000 mm length
• Flexible installation width
• Can be retrofitted with axle jacks
• 360° access
• Can also be installed on the floor: UNI LIFT
• Developed and manufactured in Germany
• Low-noise oil submerged motor

The UNI LIFT 8000 is equipped with a hydraulic synchronization control and a mechanical safety lock. The control unit of the UNI LIFT 8000 is equipped with a main switch and protected pushbuttons and can be positioned at various distances from the lift. The UNI LIFT 8000 has no fixed connections between the platforms and can therefore be installed in different installation widths as required.

The low power consumption and the low maintenance effort, also thanks to the reduced number of moving parts, reduce the running costs. The scissors and rails are welded in Nussbaum's own state-of-the-art welding machines, shot peened and then powder coated. Your lifting platform is thus protected against dirt and weather in the long term.

Installation requirements

Fundament gemäß gültigem Datenblatt, 12 Dübel (abhängig vom Fundament, siehe Prüfbuch), Hydrauliköl HLP ISO 32, Füllmenge ca. 17 Liter, Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss 6-10 bar, Entladung
