SMART LIFT 2.50 SL UNI

Electromechanical 2 post lifts with spindle and universal support arms

SMART LIFT 2.50 SL UNI

Item No:SL250.0000114D-7016
SMART LIFT 2.50 SL UNI

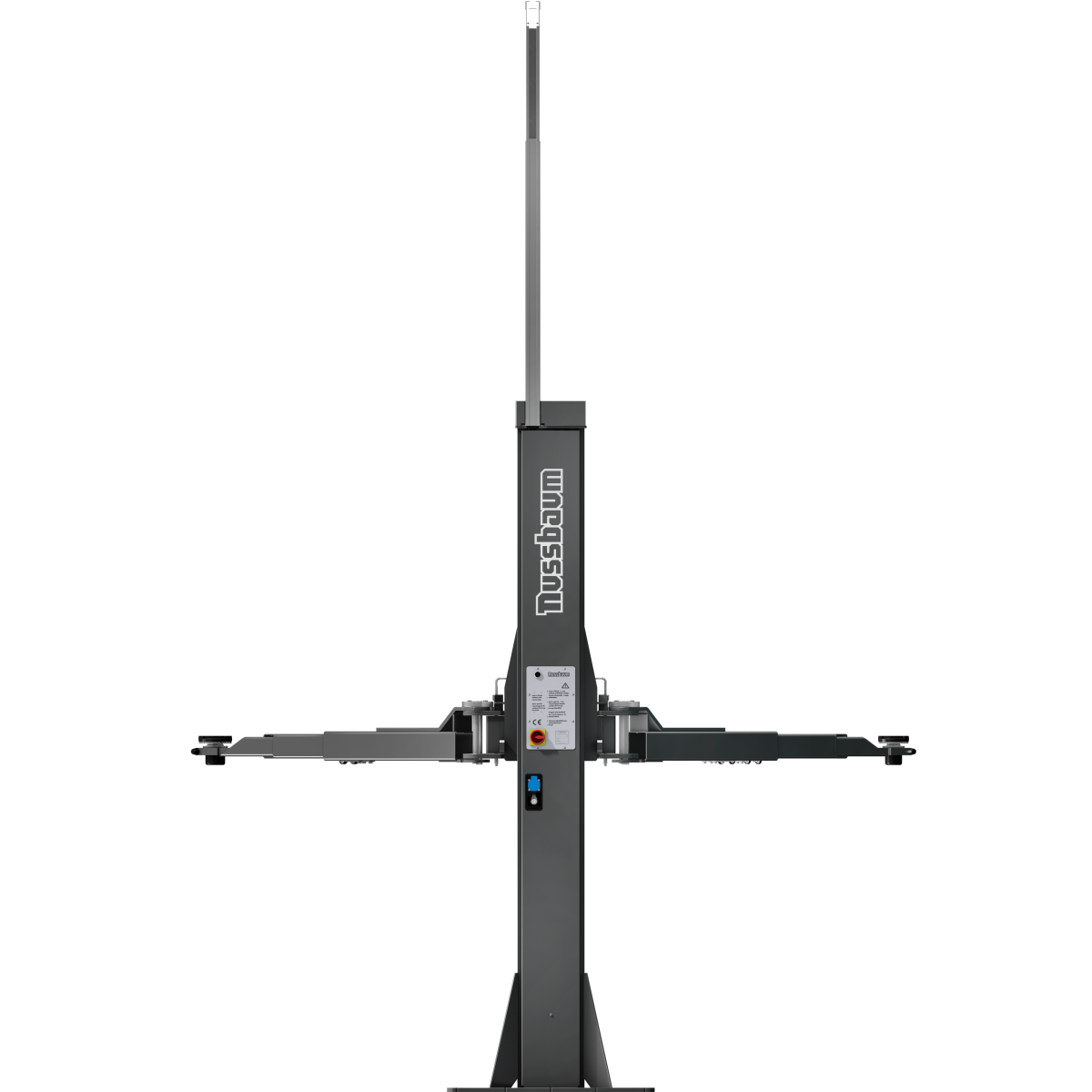

2 post Smart Lift 2 50 SL UNI s2 RAL7016 grey

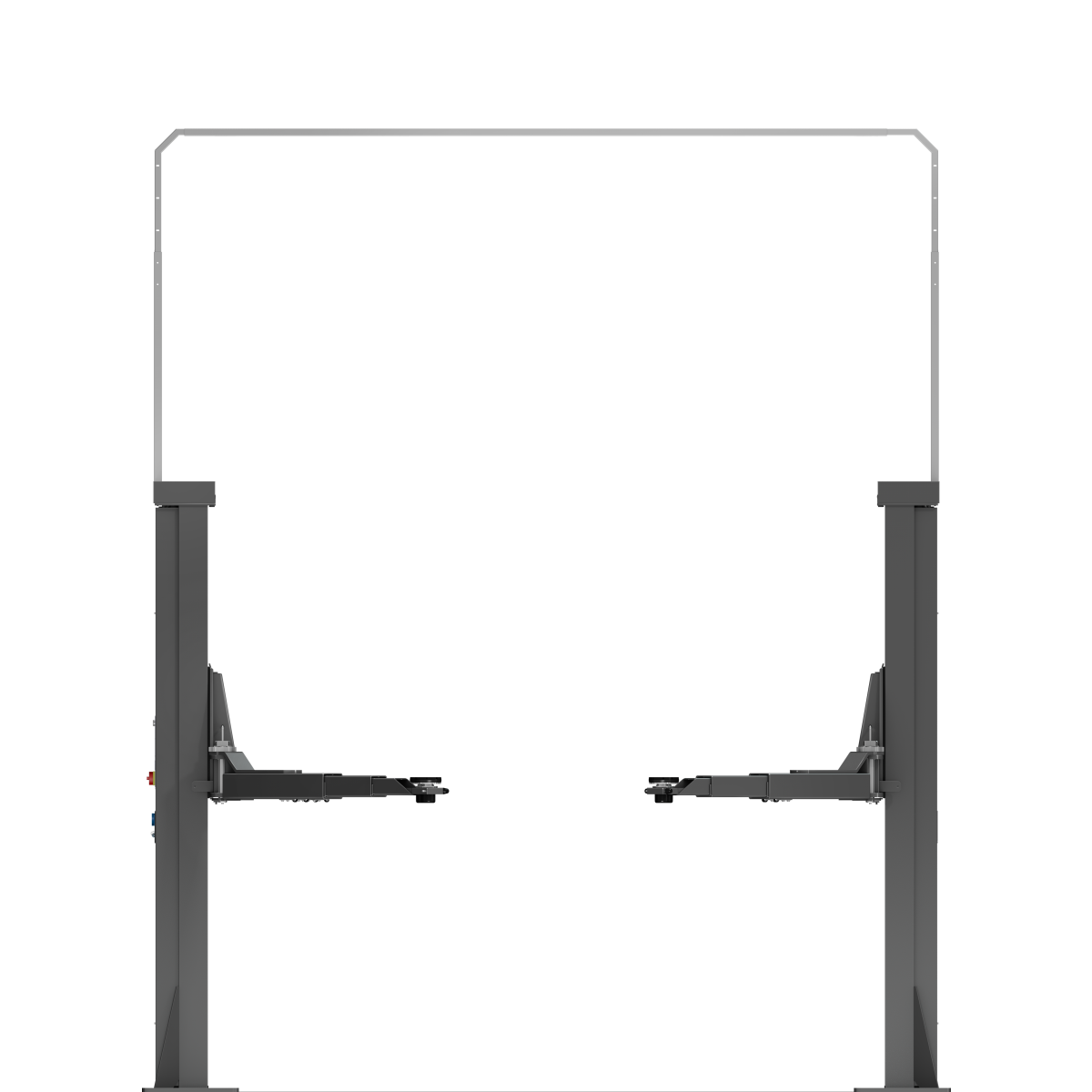

2 post Smart Lift 2 50 SL UNI f RAL7016 grey

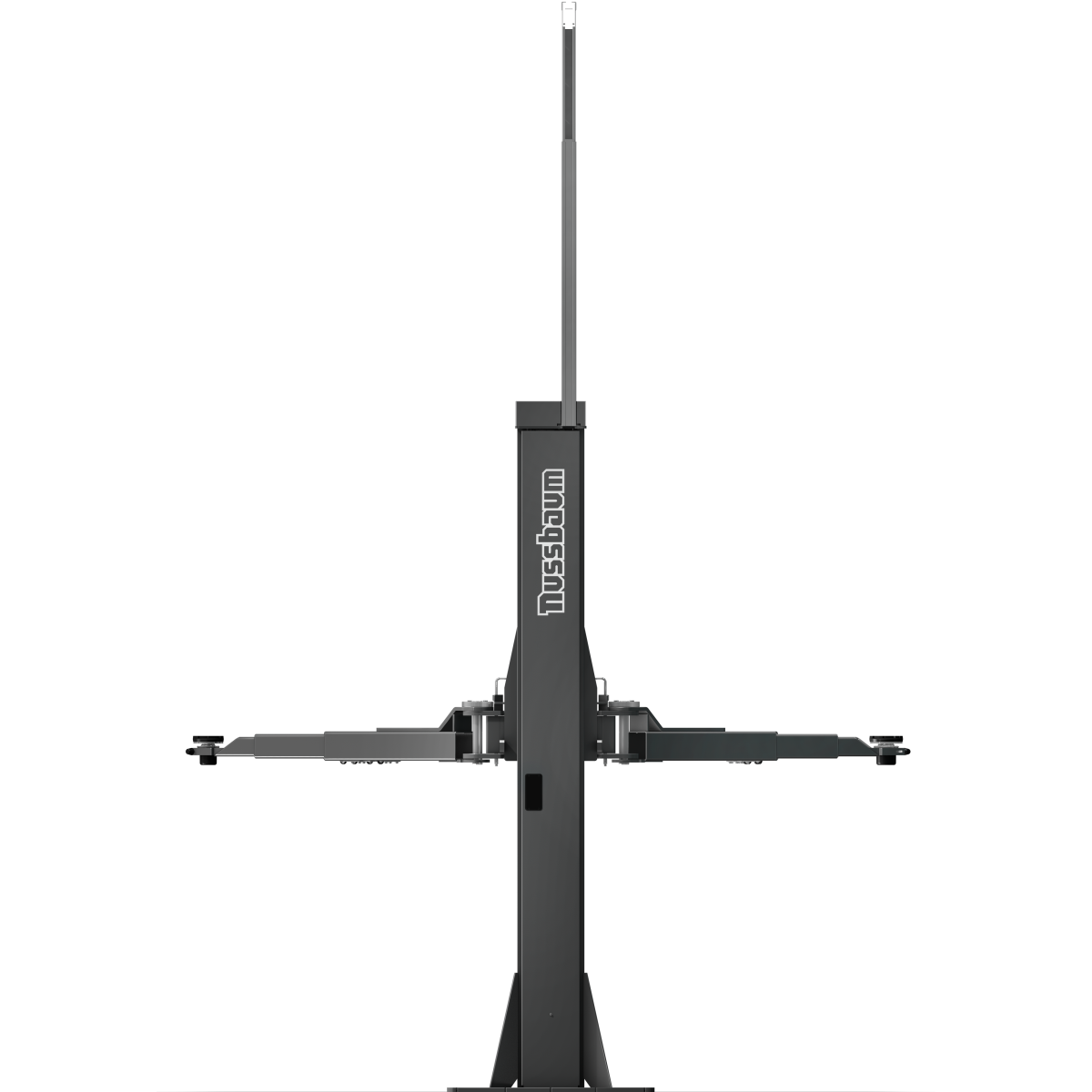

2 post Smart Lift 2 50 SL UNI s1 RAL7016 grey
Customize Compare
Brief description
Matchcode: SL250.0000114D-7016
Item No: 0033038
Lifting capacity: 5000 kg
Type 2 post lifts
Color grey
Dealer in your area 91 Not your postcode? enter here

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

SMART LIFT 2.50 SL UNI

The electromechanical 2 post lifts SMART LIFT 2.50 SL UNI with spindle, a load capacity of 5000 kg and asymmetric universal support arms is the ideal lift for the price-conscious and discerning car workshop. With its low minimum height and flexible installation width, it fits into any vehicle workshop. With the universal support arms consisting of a long single telescopic support arm and a short double telescopic support arm, you can lift a wide range of vehicle sizes and weight classes from Smart to long-wheelbase vans.

The simple cable connection between the columns can be installed either in the floor or via a simple, height-adjustable cable bridge at the top between the columns.

  • Stroke time: 48 seconds
  • Lowering time: 40 Seconds
  • Load capacity: 5000 kg
  • Universal support arms reach the mounting points of a wide range of vehicle sizes
  • Adjustable in width and height, low minimum space requirement
  • Ideal for low ceiling heights
  • Compressed air connection and 220 V socket integrated in column as standard
  • High quality: Each item is individually tested under load before despatch
  • Developed and manufactured in Germany

The Nussbaum SMART LIFT series has been proving its worth for over 20 years. Today, more than 100,000 SMART LIFT lifts are used by car mechanics around the world.

The spindle support nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron®. A second safety nut fitted under the lifting nut additionally secures the system. The support arms are secured by an automatic locking mechanism. The lifting nut can be checked by the user using an easily visible visual wear check.

The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and then grau powder-coated. This protects your lift against dirt and weather in the long term.

Scope of delivery

Lift with cable bridge (adjustable), asymmetrical, telescopic arms, 4 turntables fixed in the arm, energy set (option): E-Set (230 V/ compressed air) in the control column

Installation requirements

Foundation 200 mm C20/25 standard reinforcement, 12 dowels BM12-20/80/40 (depending on foundation, see manual), eletric connection 3 PH, N + PE, 400 V, 50 Hz, 16 Amp. slow fuse, Compressed air connection for energy set (Option), Unloading

Details
Capacity 5000 kg
RAL colour RAL 7016
Lower swivelling height 129 - 204 mm
Length front arm 1700 - 695 mm
Length rear arm 695 - 1700 mm
Lifting time 48 sec.
Lowering time 40 sec.
Lifting height 2022 mm
Total height 4468 mm
Total width 3750 mm
Clear distance between columns 2845 - 3124 mm
CE-Stop ja
E-Set yes
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection 16 Amp. slow-blow
engine power 2x1,5 KW

Datasheets

Data sheet SL 250 UNI 266 KB

Force Diagrams

Force diagram SL 250 84 KB

Liftingpatterns

Pick up diagrams SL 250 UNI 278 KB

Inspection books

OPI SMART LIFT 2 50SL V4 1 DE EN FR ES IT 072025 Web 29 MB

Leaflets

SMART LIFT 2.50 Broschüre - Deutsch 1.1 MB
SMART LIFT 2.50 Brochure 1.1 MB
SMART LIFT 2.50 Panfleto - Español 1.1 MB
SMART LIFT 2.50 Brochure - Français 1.1 MB
SMART LIFT 2.50 Prospetto - Italiano 1.1 MB
1
Packaging
Product Dimensions 3550mm x 1240mm x 900mm
Total weight 1400kg
Stackable Not stackable
Adjustable top set Matchcode: 235TTKAS08809 Item No: 0003474

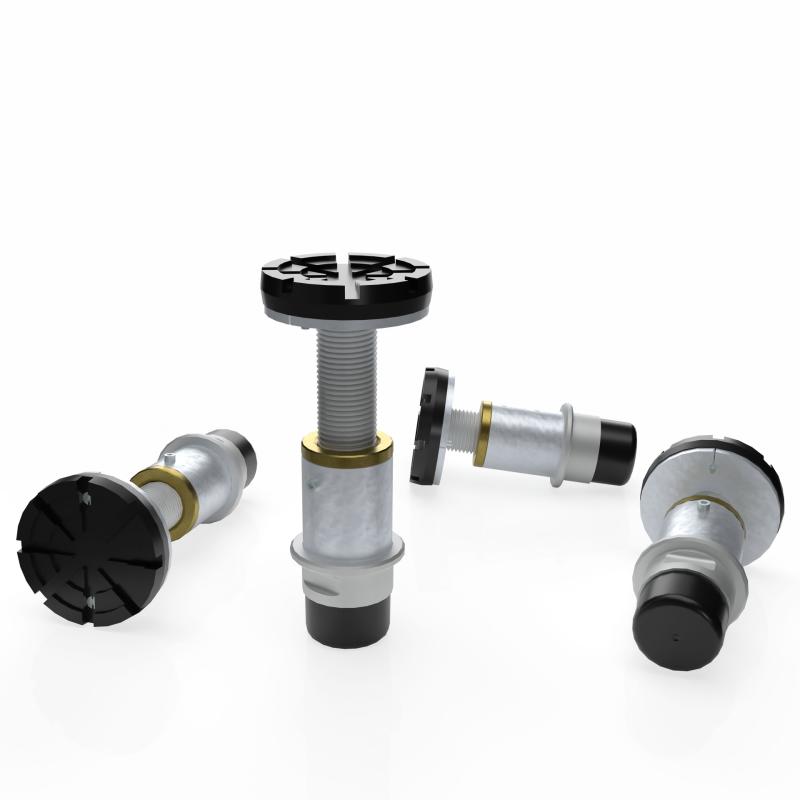

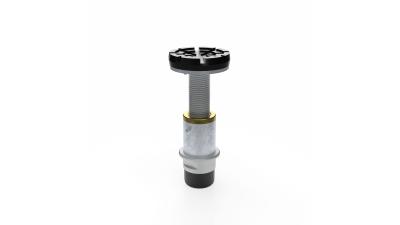

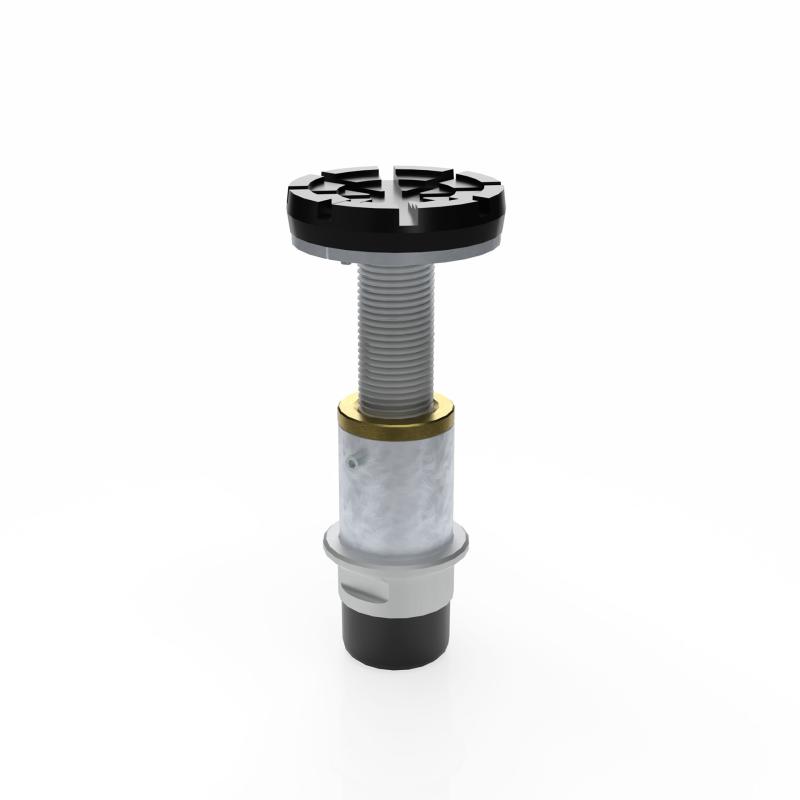

Attachment set Matchcode: 235TTKAS08501 Item No: 0003470
Attachment set for Sprinter (NCV3) with fixing pin for front attachment points, adjustable 189-289 mm, set = 2 pieces. Matchcode: 235TTKAS08870 Item No: 0006882
Attachment set with slotted prism Matchcode: 235TTKAS08537 Item No: 0004231
Bracket for impact wrench Matchcode: 225SL08278 Item No: 0004144
Bracket for pneumatic hose Matchcode: 175RG25315 Item No: 0002921
Energy-set Matchcode: 225SL05091TG Item No: 0006464
Extension set Holder Matchcode: 232SL05424 Item No: 0006157
Height adapters pluggable Matchcode: 250HDL28063 Item No: 0003597

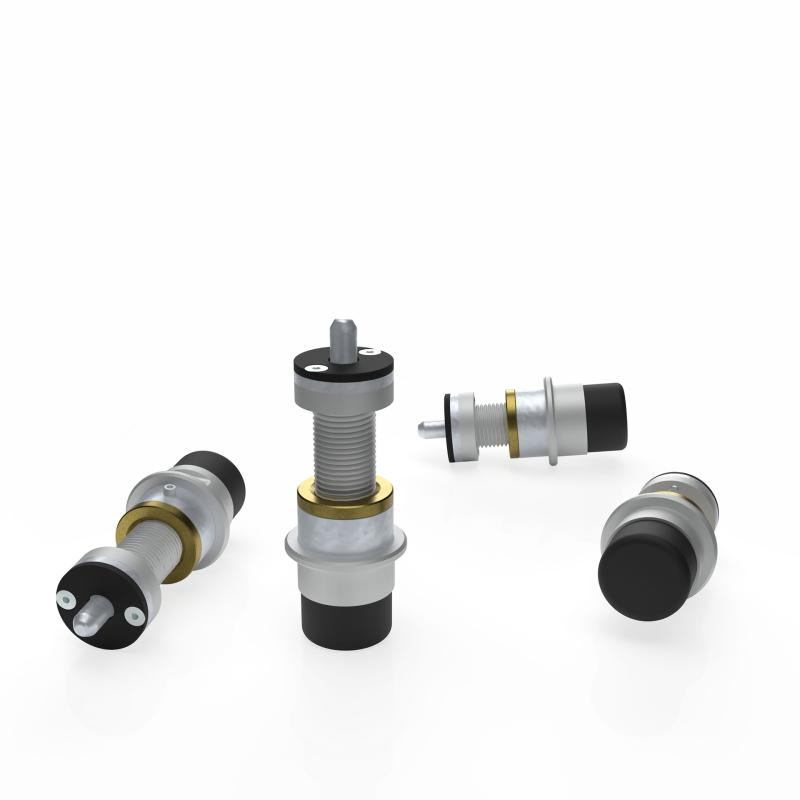

Height adapters pluggable with pin Matchcode: 235TTKAS08820 Item No: 0016593
Height adapters pluggable with prism Matchcode: 235TTKAS28850 Item No: 0006881
Height adapters pluggable with prism Matchcode: 235TTKAS08573 Item No: 0004238
Height adapters pluggable with U-profile Matchcode: 250SL08130 Item No: 0003654
Height adapters with safety bracket Matchcode: 280HDL08840 Item No: 0003770
