POWER LIFT HDL 7000 SST DG

Hydraulic 2-post lift with double jointed arms

POWER LIFT HDL 7000 SST DG

Item No:HDL270.0081020D
POWER LIFT HDL 7000 SST DG
2 post lift Power Lift HDL 6500 DG f RAL5001 blue
2 post lift Power Lift HDL 6500 DG s NB RAL5001 blue
Customize Compare
Brief description
Item No: HDL270.0081020D
Lifting capacity: 7000 kg
Type 2 post lift
Color Blue

POWER LIFT HDL 7000 SST DG

The hydraulic 2-post lift Power Lift HDL 7000 SST DG with a load capacity of 7000 kg and equipped with double jointed arms is a lift with high lifting capacity and flexibility for the versatile automotive workshop, that serves all vehicle types, from smallest cars to large vans. The Power Lift HDL 7000 SST DG is equipped with Nussbaum's patented SST technology.

With the symmetrical telescopic double jointed arms you can carry a wide range of vehicle sizes and weight classes from small cars such as Smart up to overlong vans such as Mercedes-Benz Sprinter and VW Crafter with long wheelbase lift. The arms are mounted on roller bearings for comfortable operation and are secured in the set position by a pneumatic locking mechanism. The Power Lift HDL 7000 SST DG offers absolute operating comfort with two operating units (one per column) and two independent hydraulic power packs and can be easily adapted to the needs of the workshop in terms of installation width and height during installation.

The Power Lift HDL 7000 SST DG is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg .

  • Load capacity: 7000 kg
  • The easy-to-use double-joint arms on roller bearings reach all the support points specified by the vehicle manufacturers
  • Two operating units, two hydraulic power packs
  • Operating units with clear electronic display
  • Installation width and height are flexible
  • High safety: Mechanical locking at any lifting height
  • Low maintenance (no ropes, no ratchets)
  • Developed and manufactured in Germany
  • Recommended by Mercedes-Benz (for similar lift HDL 2.65 SST DG MB)

SST technology

The Safety Star Technology (SST) monitors the synchronism of the two lifting columns to within a tenth of a millimeter. The mechanical interlock locks the support arms automatically at any lifting height when The lift stops. A safety nut on roller bearings slides along the cylinder and locks the lift automatically.

By reducing the number of moving parts in the lift (no synchronous ropes, no safety latch) we have been able to reduce the maintenance effort of the Power Lift HDL 7000 SST DG and thus reduce the running costs in the long run. The two independent hydraulic power packs are safely and space-savingly integrated into the lift. The operating units each have a clearly arranged electronic display. The synchronisation of the two columns can be electronically controlled with the revolutionary SST system with an accuracy of tenths of a millimeter. The columns communicate via an electric cable, eliminating the need to lay hydraulic hoses between the columns. The connecting cable can either be attached to the floor or to the top of the lifting columns via a cable bridge. The columns and arms made of high-quality steel are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and then powder-coated [AttributeShortCode,attribute=Colour name,attributeid=3]. Your lift is thus protected against dirt and weather in the long term. The design, the workmanship and the integrated hydraulic units give the Power Lift HDL 7000 SST DG an elegant overall appearance that unobtrusively supports the professional appearance of your workshop.

Shipment

Hebebühne mit zwei Aggregaten, Kabel, symmetrische, 2-fach teleskopierbare, rollengelagerte Doppelgelenktragarme mit pneumatischer Verriegelung, im Tragarm leicht austauschbare Teleskopdrehteller

Installation services

Fundament (min. 250mm / mit Qualität min. C20/25), 14 Dübel BM16-25/100/40 (abhängig vom Fundament, siehe Prüfbuch), 2 x 17 Liter Hydrauliköl HLP ISO 32, Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftversorgung 6-10 bar, Entl

Details
Capacity 7000 kg
RAL color RAL 5001 - Blue
Coating Powder coating
Recommended installation width 3570 mm
Required ceiling height 4500 mm
Pick up pad height min 170 mm
Pick up pad height max 245 mm
Pick up pad height min 170 - 245 mm
CE-Stop
Lifting height max. 2150 mm
Clear distance between columns min 2766 mm
Synchronization system
Column height 4419 mm
Installation width min. 3570 mm
Total width min 3570 - 4370 mm
Lifting time 70 sec
Lowering time 65 sec
Clearance height min 4545 - 4995 mm
Drive-through width min 2376 mm
Drive-through width column min 2766 mm
Drive-through width lifting carriage min 2376 mm
Total height min 4419 - 5030 mm
Motor power per column 1,5 KW
Pick up device
Oil quantity (approx.) 34 liter
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Foundation length 1650 mm
Foundation width 4370 mm
Concrete thickness 250 mm
Concrete quality C20/25
Customs tariff number 84254100

1
Packaging
Product Dimensions 3100mm x 1000mm x 1100mm
Total weight 950kg
Stackable Not stackable
2
Packaging
Product Dimensions 3100mm x 1000mm x 1100mm
Total weight 950kg
Stackable Not stackable
Adapter set for transporter (Trapo) adjustable 180 - 286 mm, set = 4 pieces. Item No: 250SL08130S
Adjustable top set 115-220 mm, set = 4 pieces. Item No: 235TTKAS08501
Adjustable top set 231-330 mm, set = 4 pieces. Item No: 235TTKAS08809

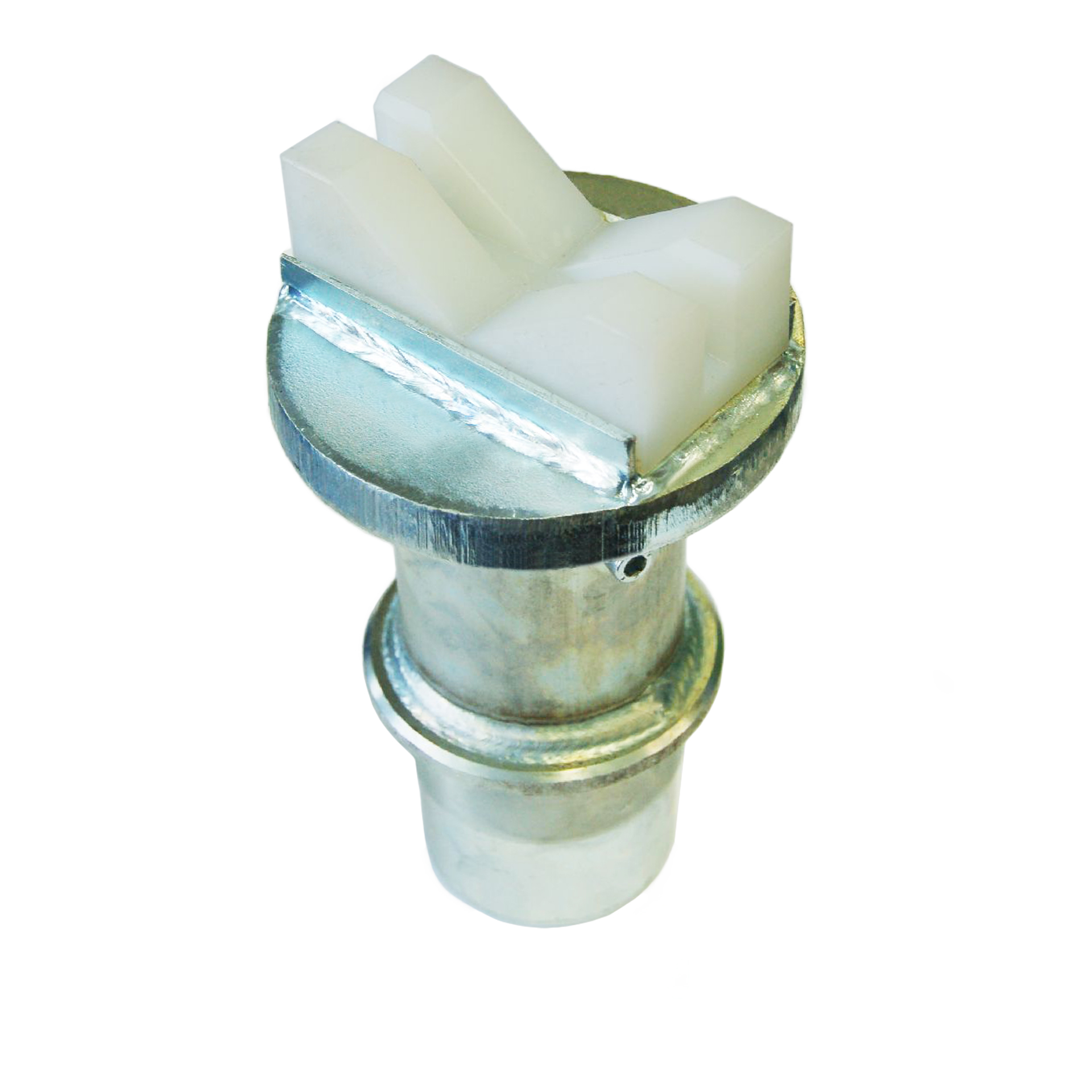

Attachment set for MB 100, adjustable 150-255 mm, set = 4 pieces. Item No: 235TTKAS08537
Attachment set for Sprinter (NCV3) with fixing pin for front attachment points, adjustable 230-335 mm, set = 2 pieces. Item No: 235TTKAS08870
Attachment set for Sprinter (NCV3) with prism for rear mounting points, adjustable 225-330 mm, set = 2 pieces. Item No: 235TTKAS08850
Attachment set rigid, set = 4 pieces. Item No: 250HDL28063
Holder for push-on fittings. For a set of 4 attachable sets 2 pieces are required. Item No: 232SL05424
Hose holder to screw onto the column, 1 piece. Item No: 175RG25315
Impact wrench holder for screwing onto the column, 1 piece. Item No: 225SL08278
Safety mount for MB vehicles with car lift mount “in the sillâ€. Item No: 232SEL28235
Slip-on set for MB off-road vehicle GW 460/ 463 with adjustable step 160-275 mm, set = 4 pieces. Item No: 235TTKAS08573
Support plate attachment for frame locking on off-road vehicles, set = 2 pieces. Item No: 232SL08840
Wheel fork set (4 pieces) max. load 4200kg 15 -19 Item No: 250TSAPH08304
