Smart Lift 2.35 SL SC

Electromechanical 2 column lift with spindle and extra flat sportscar arms

Smart Lift 2.35 SL SC

Item No:SL235.6000154D-7016
Smart Lift 2.35 SL SC
2 post lift Smart Lift 2 35 SL SC f NB RAL7016 grey
Smart Lift 2.35 SL SC s NB RAL7016 grey CE
sc arm02
sc arm01
Customize Compare
Brief description
Item No: SL235.6000154D-7016
Lifting capacity: 3500 kg
Type 2 post lift
Color Grey
Händler in Ihrer Nähe 20 Nicht Ihre Postleitzahl? hier eingeben

Nussbaum Automotive Lifts, Inc.

177 Defense Highway Suite 7, Annapolis
Maryland 21401

https://

Smart Lift 2.35 SL SC

The electromechanical 2 column lift Smart Lift 2.35 SL SC with spindle, a load capacity of 3500 kg and extra flat, asymmetrical sportscar arms is the ideal lift for the price-conscious and demanding car repair shop, in which even the low cars are lifted. With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns. The extra-flat arms with a lower height of only [Unterschwenkhöhe] mm glide under all low cars in a relaxed manner, whether red Italian racers or self-tuned low-flying vehicles from Rüsselsheim.

  • Lifting time and lowering time: [AttributeShortCode,attribute=Hub-/Lowering time,attributeid=88] seconds
  • Load capacity: 3500 kg
  • Adjustable in width and height, low minimum space requirement
  • Ideal for low ceiling heights with minimum height of only [AttributeShortCode,attribute=Erforderliche Deckenhöhe,attributeid=77] mm
  • Extra-flat SC arms with a lower swivel height of only 84 - 144 mm
  • Compressed air connection and 220 V socket as standard integrated into the column
  • High quality: each unit is individually tested under load before shipment
  • Developed and manufactured in Germany

The Nussbaum Smart-Lift series has proven itself for over 20 years. Today, more than 100,000 Smart Lift lifts are available worldwide to assist car mechanics in their everyday work.

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently Grey powder-coated. Your lift is thus protected against dirt and weather in the long term.

Scope of delivery

Lift with cable bridge (adjustable), asymmetrical, telescopic arms, 4 turntables fixed in the arm, energy set (option): E-Set (230 V/ compressed air) in the control column

Installation requirements

Foundation 200 mm C20/25 standard reinforcement, 12 dowels BM12-20/80/40 (depending on foundation, see manual), eletric connection 3 PH, N + PE, 400 V, 50 Hz, 16 Amp. slow fuse, Compressed air connection for energy set (Option), Unloading

Details
Capacity 3500 kg
RAL color RAL 7016 - Grey
Coating Powder coating
Pick up pad height min 84 - 144 mm
Pick up pad height min 84 - 144 mm
Min length front arm 590 - 865 mm
Min length rear arm 840 - 1380 mm
Lifting/lowering time 40 sec
Lifting height max. 1980 mm
Required ceiling height 2900 mm
Total height min 3716 - 4167 mm
Column height 2890 mm
Clearance height min 3682 - 4133 mm
Total width min 3230 - 3350 mm
Recommended installation width 3350 mm
Installation width min. 3230 - 3350 mm
Drive-through width column min 2650 - 2770 mm
Drive-through width lifting carriage min 2280 - 2520 mm
Clear distance between columns min 2650 - 2770 mm
Motor power per column 1,5 KW
Pick up device
Synchronization system
E-Set
Compressed air supply ja
Electrical connection (Ph/V/Hz) 3 Ph , 400 V , 50 Hz
Fuse protection
Foundation length 3750 mm
Foundation width 1600 mm
Concrete thickness 200 mm
Concrete quality C20/25
Customs tariff number 84254100

Datasheets

Data sheet 228 KB

Foundation plans

Foundation plan 107 KB
Cube foundation plan 112 KB

Inspection books

OPI SMART LIFT 2 30SL 2 35SL 2 40SL V4 8 DE EN FR ES IT 082024 Web 32 MB

Leaflets

Smart Lift Broschüre - Deutsch 1.9 MB
Smart Lift Brochure - English 1.9 MB
Smart Lift Panfleto - Español 1.9 MB
Smart Lift Brochure - Français 1.9 MB
Smart Lift Prospetto - Italiano 1.9 MB
1
Packaging
Product Dimensions 2960mm x 770mm x 550mm
Total weight 650kg
Stackable 3 times
Listenansicht Explosionsansicht
Bearing housing mounted Rd. 98x50 C45 Mounting part Item No: 225SL25031M
in stock

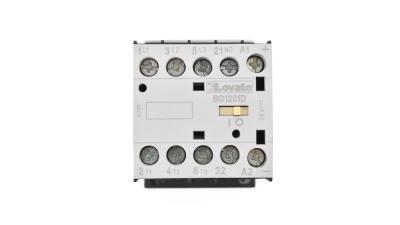

Contactor DC24V / 5,7KW / 400V [27] Item No: 990842
in stock
Cover plate BL. 1,25x198x2760 DX 51 D+Z cpl. Item No: 240SL09008
low stock

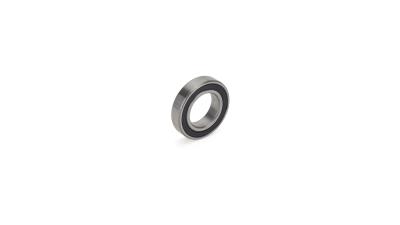

Deep groove ball bearings, single row, 6007-2RS Item No: 970029
in stock

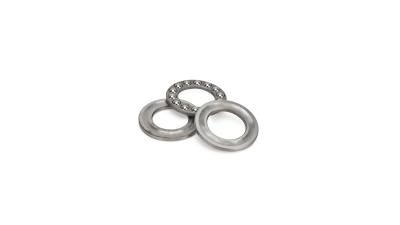

Deep groove ball thrust bearing, 51207 Item No: 970028
in stock
Elastomer support Drm. 125x24 mm Item No: 901103031
in stock
Electro SL cable set (3 wires) is included with the stage Item No: 232SL03040
low stock
Energieset Kunststoff 70X50X150 Item No: 225SL05093
low stock

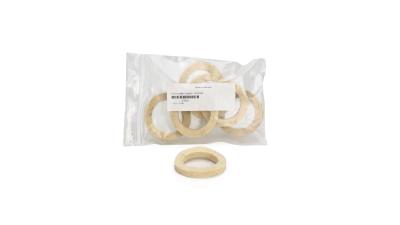

Felt ring MNII raw white 62X43X8 Item No: 970658
in stock
Fuse holder for E-Set incl. fine fuse 5x20 mm 6,3A Item No: 232SL393024
in stock

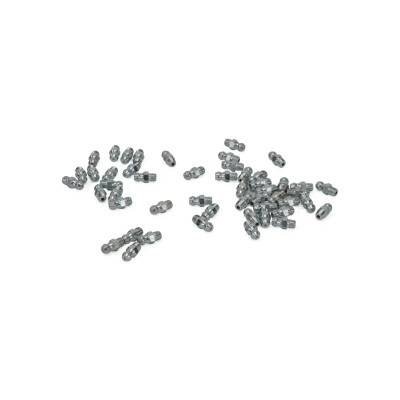

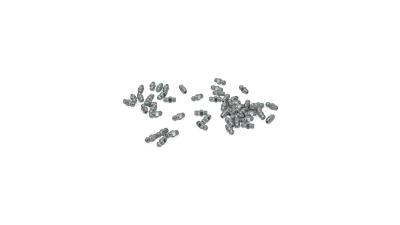

Grease nipple (9AM6X1) Steel DIN 71412 M 6x1 Item No: 970020
in stock

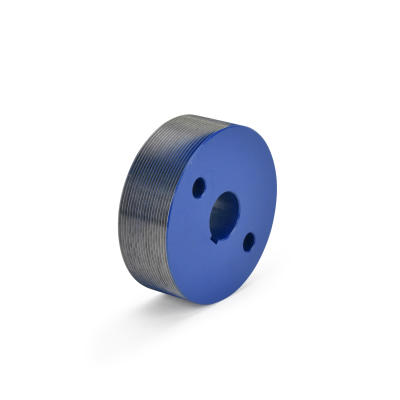

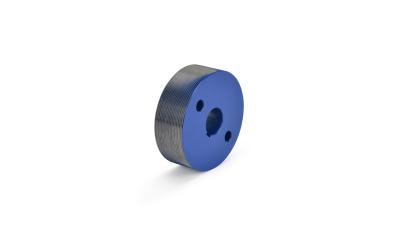

Grooved pulley RD. 131X45 9S20K -KANBAN- Item No: 250SL02010
low stock
Hose clamp 40-60 MM12,2 MM galvanized Item No: 970978
in stock
Kabelsatz SL komplett Item No: 232SL393004 Replacement item: 232SL03040
Profile rubber 400 mm long Item No: 225SL06103S1
in stock

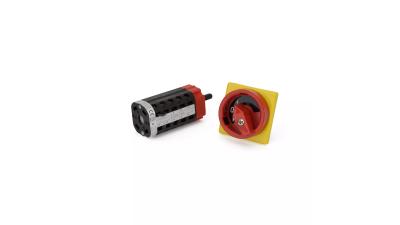

Reversing switch W 151/93.1000-SO-NU Item No: 994777
in stock
Rippenband RB 17 PJ 508 Item No: 972357
in stock

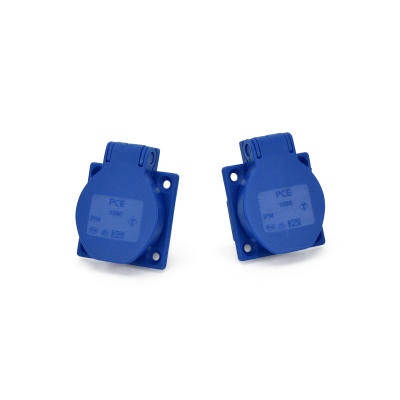

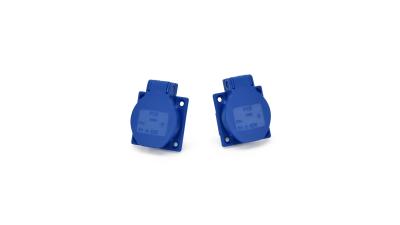

Schuko socket outlet blue 10/16A 230V IP54 Item No: 990646
in stock

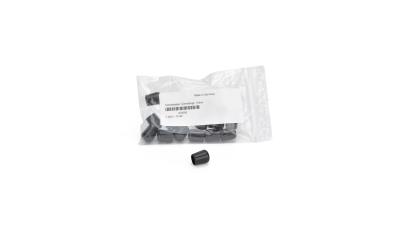

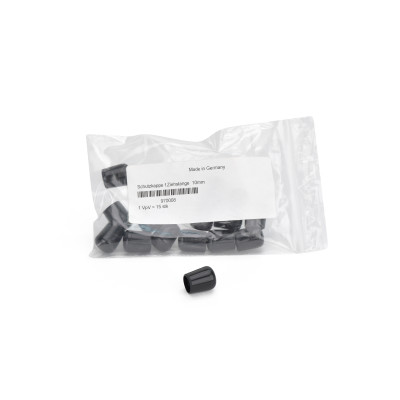

Schutzkappe f.Ziehstange 10mm Item No: 970008
in stock
Sichtschutz Bl. 1,0x98x230 StW22 DD11 kpl. Item No: 225SL09010
SL-Synchronized potentiometer Complete Item No: 232SL03003
low stock
Sliding block 10x20x46 PA6.6 Item No: 225SL06036
in stock
Sliding block 4 FL. 15X10X50 PA6.6 Item No: 225SL06038
in stock
Sliding Block Fl. 35x18x80 PA6 black Item No: 240HLNT06035-ET
in stock

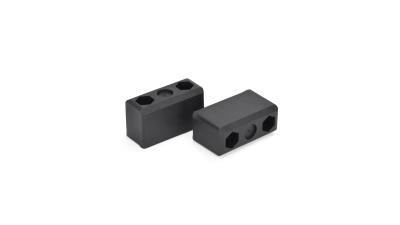

Sliding block Fl. 35x45x80 PA6.6 black Item No: 225SL06033
Delivery time on request
Spannelement VKT. 20x50 S235JR inkl. galv. verzinkt Item No: 225SL25026
low stock

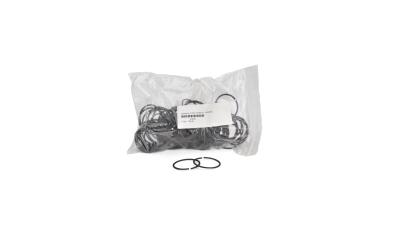

Sprengring SW40 N0400 ST VR004580-2 Item No: 970006
in stock
Steigrohr / Querrohr kpl. galv. verzinkt für SL 2.40 Item No: 240SL05700
Delivery time on request

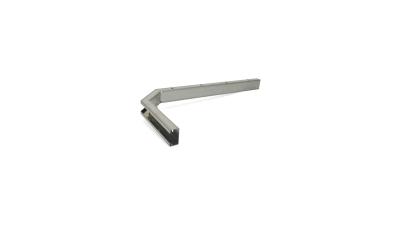

Steigrohr Bl. 1,5x127x985 DX51 D+Z kpl. Item No: 225SL45073 Replacement item: 240SL05700

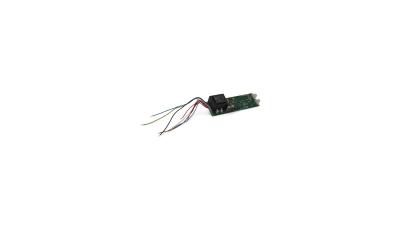

Steuerplatine SL ZPR 100 S mit Poti Item No: 940253 Replacement item: 940253-1
Steuerung SMART LIFT kpl mit CE-Stop / Frontplatte V2A / inkl. Schrauben Item No: 240SL03000-ET
low stock
Toothed pulley NEW STL cpl. Item No: 232NSTL08013-ET
low stock
Toothed pulley NEW STL Rd. 100x12 ( galvanized ) -KANBAN- Item No: 232NSTL08013
1 2 3 4 5 6 7 14
